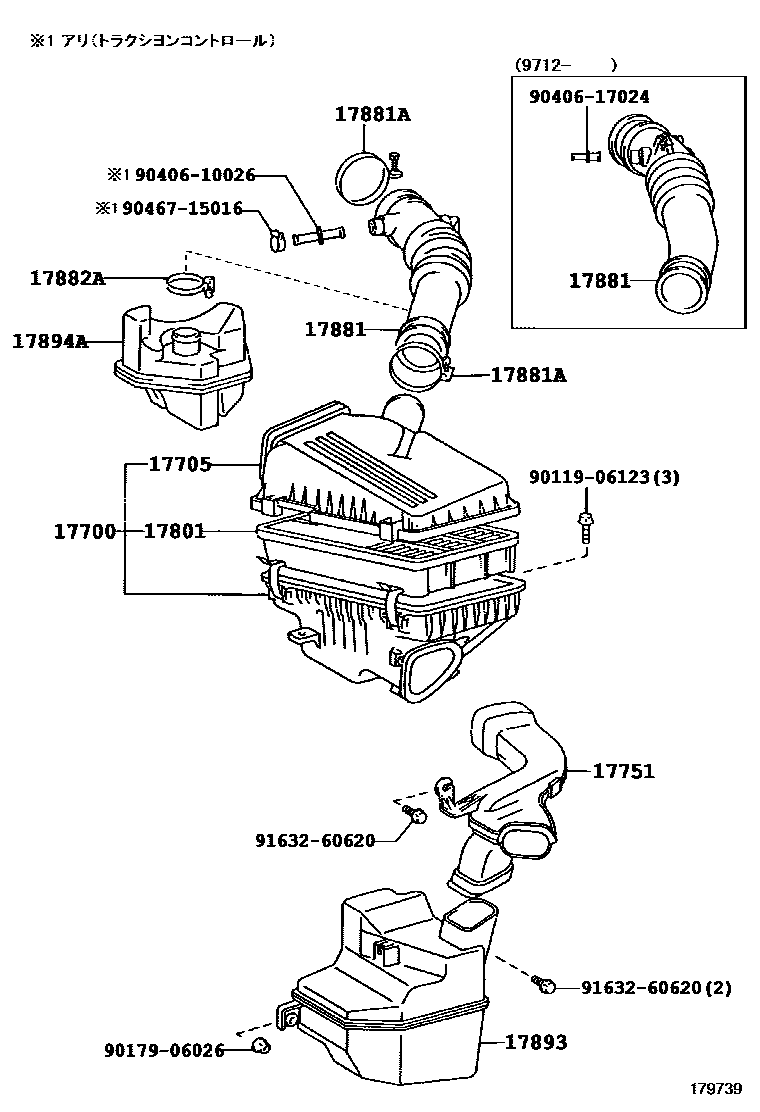

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-74480i3SFE,4SFE..ST200,201,202,203199309

main17700-74510i3SGE..ST202,205199309

17705CAP SUB-ASSY, AIR CLEANER

main17705-74320i3SFE,4SFE..ST200,201,202,203199309

main17705-74350i3SGE..ST202,205199309

17751INLET, AIR CLEANER, NO.1

main17751-74030i3S#,4SFE..ST20#199309-199312

main17751-74040i3SFE,4SFE..ST200,201,202,203199312-199501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-74060i3S#,4SFE..ST20#199309

17881HOSE, AIR CLEANER, NO.1

main17881-74510i3SGE..ST202,205199309

main17881-74520i3SFE,4SFE..ST200,201,202,203199309-199508

main17881-74530i3SFE..ST202,203..ATM199309-199606

main17881-74690i3SFE,4SFE..ST200,202,203199508-199606

main17881-74810i3SFE,4SFE..ST200,202,203199606-199804

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-73001i3SFE..ST202,203..ATM199309-199606

main96111-10710i3SFE..ST202,203..ATM199309-199606

main96111-10800×2i3SGE..ST202,205199309

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10400i3SFE,4SFE..ST200,201,202,203199311

main96111-10430i3SFE,4SFE..ST20#199309-199311

main96111-10600i3SGE..ST202199309-199310

main96111-10630i3SGE..ST202,205199310

17893RESONATOR, INTAKE AIR

main17893-74290i3S#,4SFE..ST20#199309

17894ARESONATOR, INTAKE AIR, NO.2

main17894-74040i3SFE,4SFE..ST200,201,202,203199309

main17894-74050i3SGE..ST202,205199309

9011906123

main90119-06123

9017906026

main90179-06026

9040610026

main90406-10026

9040617024

main90406-17024

9046715016

main90467-15016

9163260620

main91632-60620

15 parts on this diagram · 2 diagrams in section
