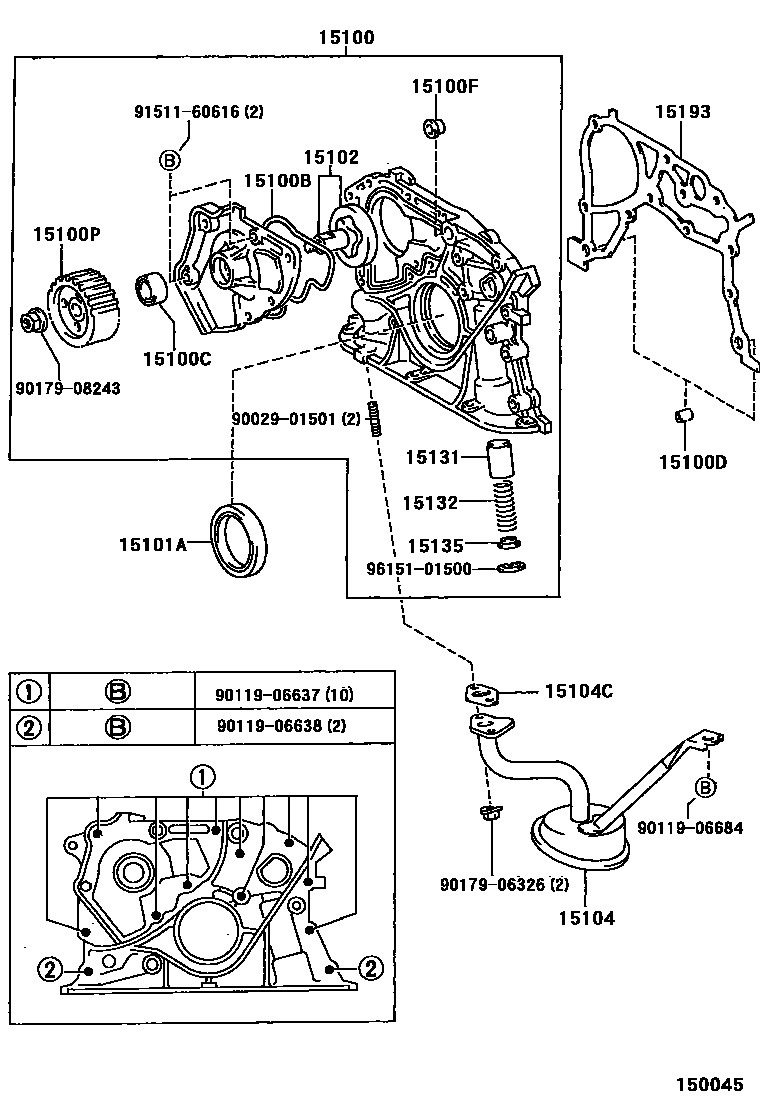

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-74010i3SFE,4SFE..ST200,201,202,203199309-199508

main15100-74050i3SFE,4SFE..ST200,202,203199606

main15100-74060i3SFE,4SFE..ST200,202,203199508-199606

main15100-88460i3SGE..ST202,205199309

15100BRING, O(FOR OIL PUMP)

main15188-74050i3SFE,4SFE..ST200,202,203199608

main15188-88382i3S#,4SFE..ST20#199309-199608

15100CSEAL(FOR OIL PUMP)

main15165-74020i3SFE,4SFE..ST200,201,202,203199309

main15165-88382i3SGE..ST202,205199309

15100DPIN(FOR OIL PUMP SET)

main90253-09001×2i3S#,4SFE..ST20#199309

15100FBUSH (FOR OIL PUMP)

main90029-38302i3S#,4SFE..ST20#199309-199511

15100PPULLEY, OIL PUMP DRIVE SHAFT

main13524-74020i3SFE,4SFE..ST200,201,202,203199309

main13524-88460i3SGE..ST202,205199309

15101ASEAL(FOR CRANKSHAFT)

main90311-42026i3S#,4SFE..ST20#199309-199609

main90311-42032i3SFE,4SFE..ST200,202,203199609-199710

main90311-42035i3SFE,4SFE..ST200,202,203199710

15102ROTOR SET, OIL PUMP

main15102-63010i3SFE,4SFE..ST200,201,202,203199309

15104STRAINER SUB-ASSY, OIL

main15104-74090i3SFE,4SFE..ST200,202,203199606

main15104-88380i3SFE,4SFE..ST200,201,202,203199309-199606

main15104-88461i3SGE..ST202,205199309

15104CGASKET(FOR OIL STRAINER)

main15149-74030i3SFE,4SFE..ST200,201,202,203199309

main15149-88460i3SGE..ST202,205199309

15131VALVE, OIL PUMP RELIEF

main15131-24010i3SFE,4SFE..ST200,201,202,203199309

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i3SFE,4SFE..ST200,201,202,203199309

15135RETAINER, OIL PUMP RELIEF VALVE

main15135-15010i3SFE,4SFE..ST200,201,202,203199309

15193GASKET, OIL PUMP

main15197-74030i3SFE,4SFE..ST200,201,202,203199309-199508

main15197-74040i3SFE,4SFE..ST200,202,203199508

main15197-88460i3SGE..ST202,205199309

9002901501

main90029-01501

9011906637

main90119-06637

9011906638

main90119-06638

9011906684

main90119-06684

9017906326

main90179-06326

9017908243

main90179-08243

9151160616

main91511-60616

9615101500

main96151-01500

22 parts on this diagram · 3 diagrams in section
