Toyota 253130 — CAMSHAFT & VALVE

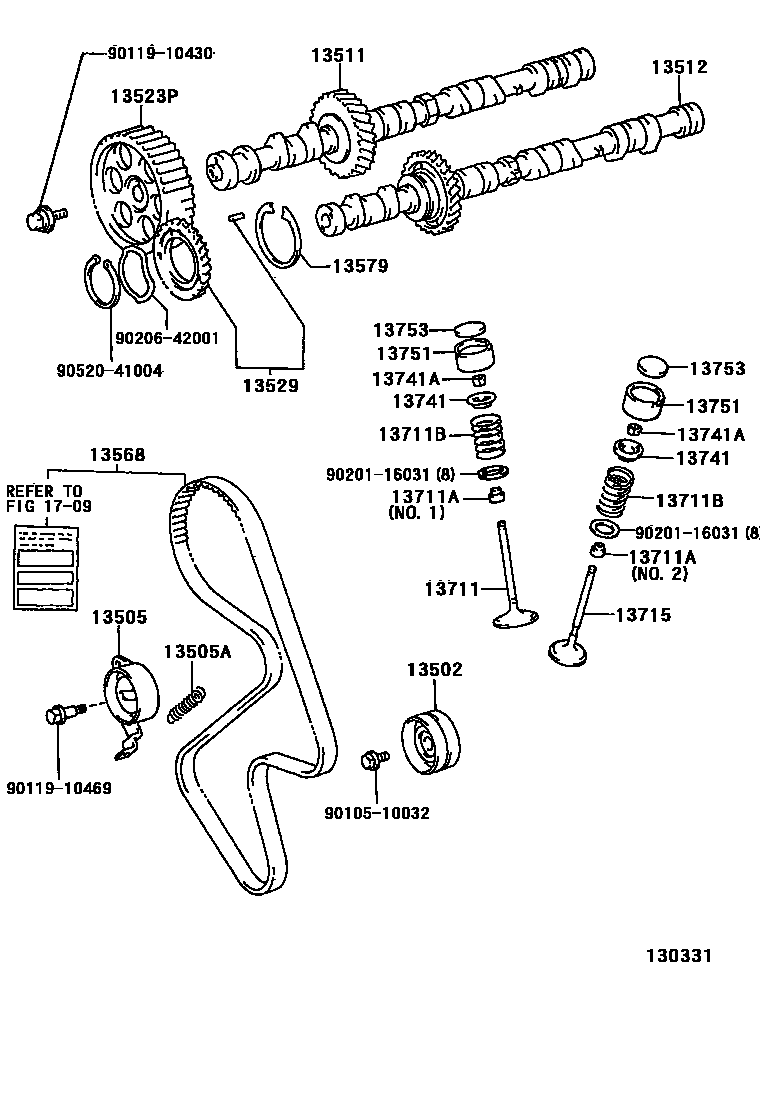

Parts diagram

13502IDLER SUB-ASSY, TIMING BELT, NO.2

13505IDLER SUB-ASSY, TIMING BELT, NO.1

13505ASPRING, TENSION(FOR IDLER)

13511CAMSHAFT

13512CAMSHAFT, NO.2

13523PPULLEY, CAMSHAFT TIMING

13529GEAR, CAMSHAFT SUB

13568BELT, TIMING

13579WASHER, CAMSHAFT TIMING GEAR BOLT

13711VALVE, INTAKE

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

13711BSPRING, COMPRESSION(FOR INNER)

13715VALVE, EXHAUST

13741RETAINER, VALVE SPRING

13741ALOCK, VALVE SPRING RETAINER

13751LIFTER, VALVE

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

9010510032

9011910430

9011910469

9020116031

9020642001

9052041004

24 parts on this diagram · 2 diagrams in section

CAMSHAFT & VALVE for Toyota 253130

This section contains 31 genuine Toyota parts for the CAMSHAFT & VALVE system of the Toyota 253130. Key components include: IDLER SUB-ASSY, TIMING BELT, NO.2, IDLER SUB-ASSY, TIMING BELT, NO.1, SPRING, TENSION(FOR IDLER), CAMSHAFT, PIN, STRAIGHT(FOR CAMSHAFT KNOCK).
