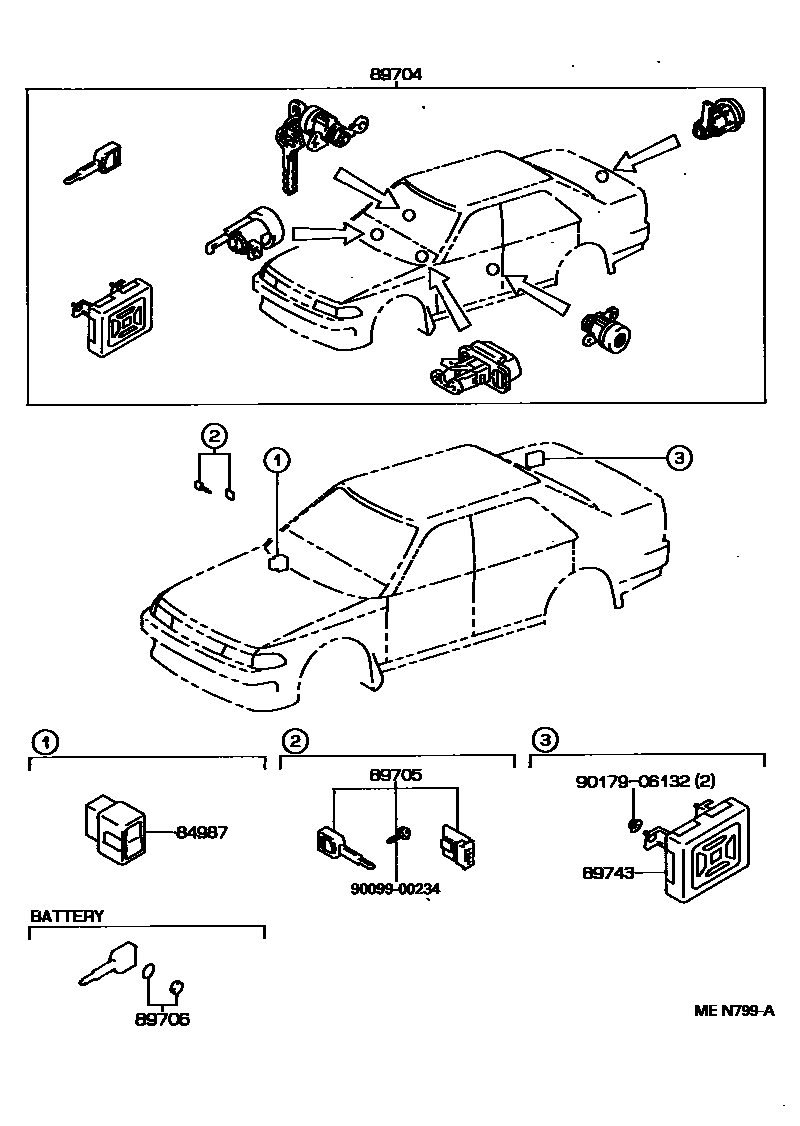

WIRELESS DOOR LOCK

84987SWITCH, WIRELESS DOOR LOCK MAIN

main84987-32010iST182,183;ST180,181..FE198909-199309

89704CONTROL SET, WIRELESS DOOR LOCK

main89704-20090iST182,183;ST180,181..FE198909-199108

main89704-20091iST182,183;ST180,181..FE199108-199309

89705TRANSMITTER, DOOR CONTROL

main89705-20041iST182,183;ST180,181..FE199108-199309

main89705-20050iST182,183;ST180,181..FE198909-199108

89706BATTERY SET, TRANSMITTER

main89706-30010iST182,183;ST180,181..FE198909-199309

89743RECEIVER, DOOR CONTROL

main89743-20060iST182,183;ST180,181..FE198909-199309

9009900234

main90099-00234

9017906132

main90179-06132

7 parts on this diagram · 1 diagram in section
