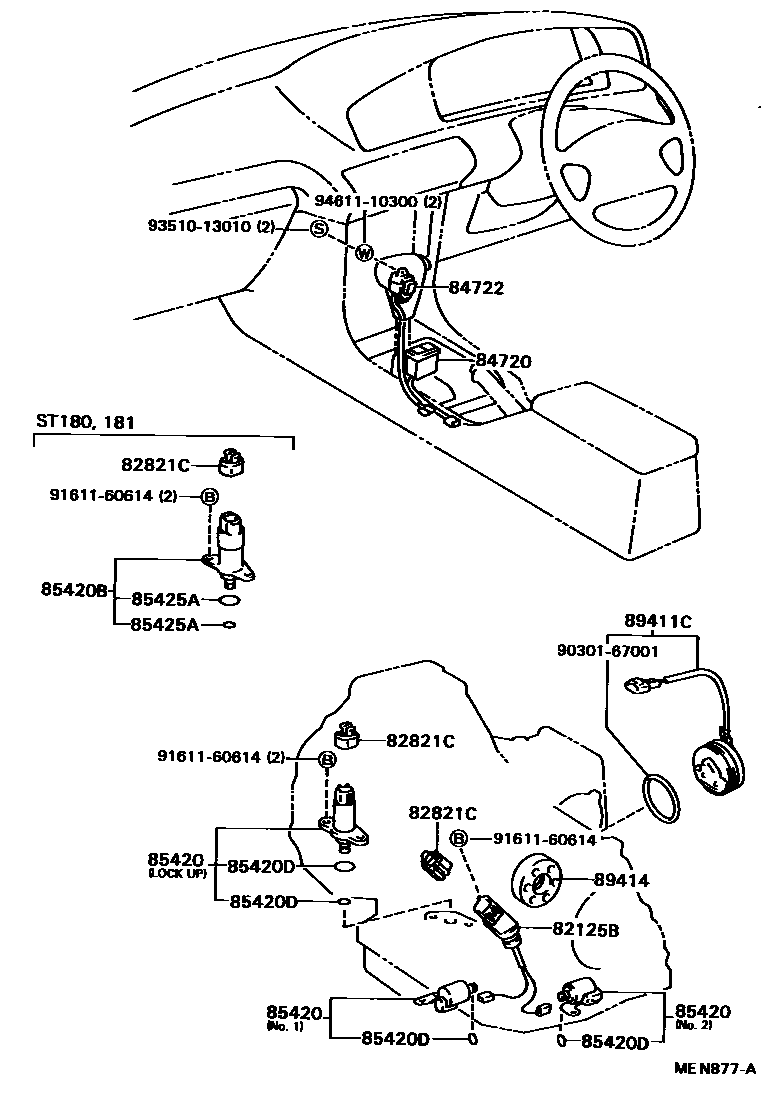

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-20150iST182,183..ATM198909-199309

82821CCOVER, CONNECTOR

main82821-20210iST180,181..ATM; ST182,183..ATM199108-199205

SOLENOID

main82821-20220iST182,183..ATM199108-199309

WIRE

84720SWITCH ASSY, PATTERN SELECT

main84720-20110iST182,183..ATM198909-199309

84722SWITCH, TRANSMISSION CONTROL

main84722-20090-02iST182,183..ATM;ST180,181..ATM..FE198909-199309

MAUVE,TRIM3#

main84722-20090-03iST18#..ATM198909-199309

SHADOW GRAY,TRIM1#

main84722-20090-06iST18#..ATM198909-199309

SABLE,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-20130iST182,183..ATM198909-199309

main85420-32021iST182,183..ATM198909-199309

main85420-32041iST182,183..ATM198909-199309

85420BSOLENOID ASSY, TRANSMISSION

main85420-20100iST180,181..ATM198909-199309

main90301-06004×4iST182,183..ATM199205-199309

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iST182,183..ATM199108-199309

NO.1 OR NO.2

main90301-06005iST182,183..ATM198909-199309

LOCK UP,ID=6.6

main96721-19017iST182,183..ATM198909-199309

LOCK UP,ID=16.8

85425ARING, O (FOR OVERDRIVE SOLENOID)

main90301-06005iST180,181..ATM198909-199309

ID=6.6

main96721-19017iST180,181..ATM198909-199309

ID=16.8

89411CSENSOR, SPEED

main89411-20060iST182,183..ATM198909-199309

89414ROTOR, SENSOR

main89414-32010iST182,183..ATM198909-199309

9030167001

main90301-67001

9161160614

main91611-60614

9351013010

main93510-13010

9461110300

main94611-10300

14 parts on this diagram · 1 diagram in section
