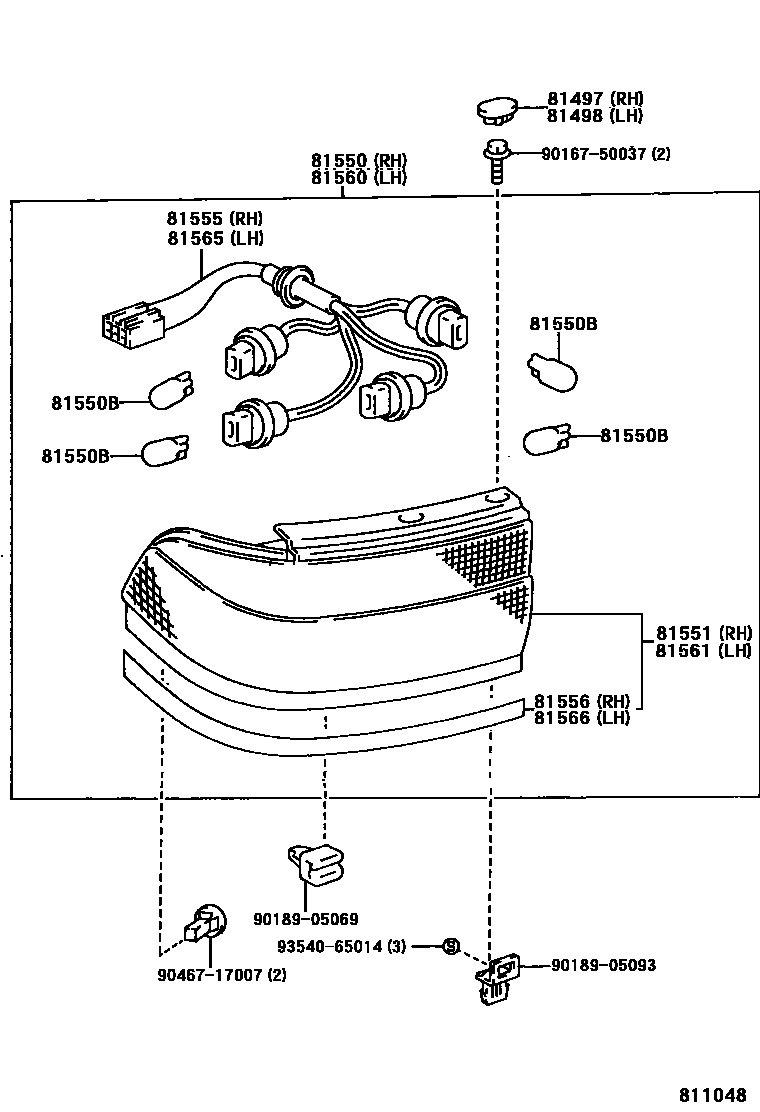

REAR COMBINATION LAMP
81497COVER, REAR COMBINATION LAMP, RH
81498COVER, REAR COMBINATION LAMP, LH
81550LAMP ASSY, REAR COMBINATION, RH
DARK RED,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
LIGHT MAUVE,3J3
DARK KHAKI M.,BLACKISH KHAKI M.,6K8
LIGHT MAUVE,3J3
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAKI,6K8
81550BBULB(FOR REAR COMBINATION LAMP)
81551LENS, REAR COMBINATION LAMP, RH
DARK RED,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
LIGHT MAUVE,3J3
DARK KHAKI,6K8
RIGHT MAUVE,3J3
DARK GRAY,182 ,8G5
RIGHT BEIGE,040
RIGHT GREEN,6K7
DARK KHAKI,6K8
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81556RIM, REAR COMBINATION LAMP, RH
DARK GRAY,182 ,8G5
DARK RED,3H4
LIGHT MAUVE,3J3
LIGHT BEIGE,040
LIGHT GREEN,6K7
BLACKISH KHAKI M.,6K8
BLUISH GRAY M.,182
SILVER M.,040
DARK BLUISH GRAY M.,191
DARK WINE MICA,3K1
DARK MOSS GREEN MICA,6M4
BLAKISH KHAKI M.,6K8
MEDIUM TURQUOISE M.,749
81560LAMP ASSY, REAR COMBINATION, LH
DARK RED,3H4
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
LIGHT MAUVE,3J3
DARK KHAKI,6K8
LIGHT MAUVE,3J3
DARK GRAY,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAKI,6K8
81561LENS, REAR COMBINATION LAMP, LH
RED MICA,3H4
DARK BLUE,182 ,8G5
LIGHT BEIGE,040
LIGHT GREEN,6K7
LIGHT MAUVE,3J3
DARK KHAKI,6K8
RIGHT MAUVE,3J3
DARK GRAY,182 ,8G5
RIGHT BEIGE,040
RIGHT GREEN,6K7
DARK KHAKI,6K8
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81566RIM, REAR COMBINATION LAMP, LH
DARK GRAY,182 ,8G5
DARK RED,3H4
LIGHT MAUVE,3J3
LIGHT BEIGE,040
LIGHT GREEN,6K7
DARK KHAKI,6K8
BLUISH GRAY M.,182
SILVER M.,040
DARK BLUISH GRAY M.,191
DARK WINE MICA,3K1
DARK MOSS GREEN MICA,6M4
BLAKISH KHAKI M.,6K8
MEDIUM TURQUOISE M.,749
9016750037
main90167-50037
9018905069
main90189-05069
9018905093
main90189-05093
9046717007
main90467-17007
9354065014
main93540-65014
16 parts on this diagram · 2 diagrams in section
