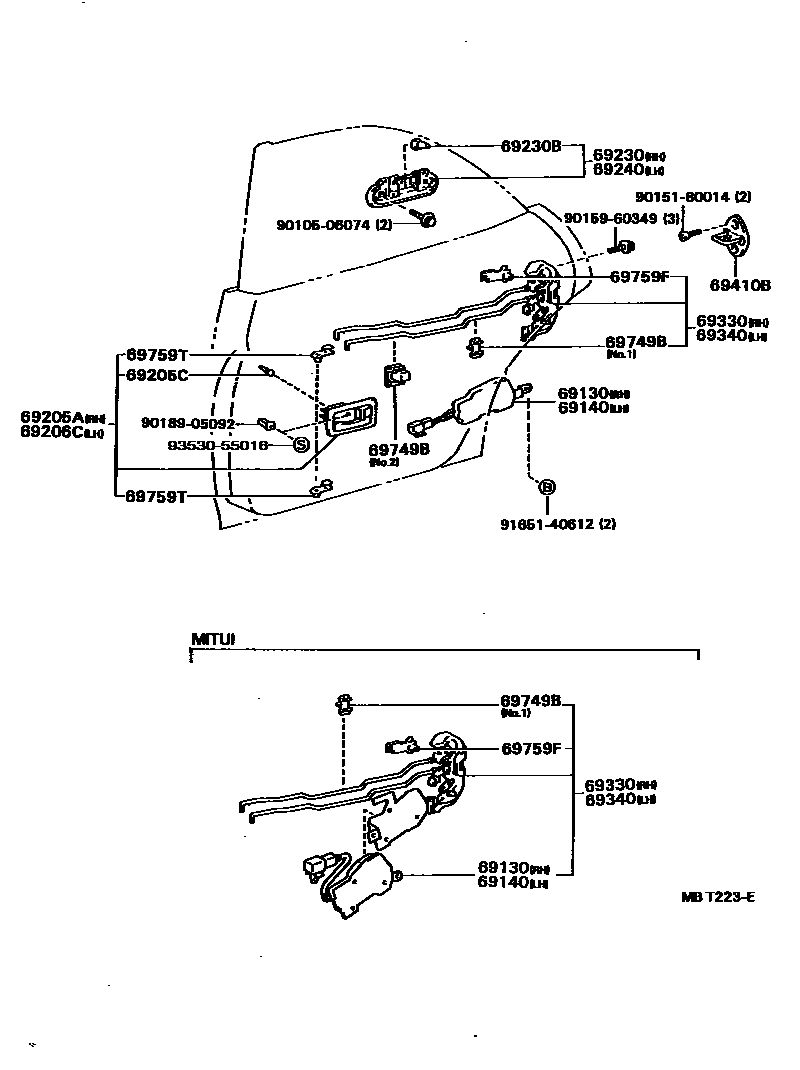

REAR DOOR LOCK & HANDLE

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-20010iST18#..FG,TR198909-199108

main69130-20020iST18#..FE,TRG198909-199108

main69130-20030iST18#..FG,TR198909-199108

MITUI

main69130-20040iST18#..FE,TRG198909-199108

MITUI

main69130-20050iST18#..FG,TR199108-199309

AISIN

main69130-20060iST18#..FE,TRG199108-199309

AISIN

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-20010iST18#..FG,TR198909-199108

main69140-20020iST18#..FE,TRG198909-199108

main69140-20030iST18#..FG,TR198909-199108

MITUI

main69140-20040iST18#..FE,TRG198909-199108

MITUI

main69140-20050iST18#..FG,TR199108-199309

AISIN

main69140-20060iST18#..FE,TRG199108-199309

AISIN

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-20100-02iST182,183;ST180,181..FE198909-199203

MAUVE,TRIM3#

main69205-20100-03iST18#198909-199203

SHADOW GRAY,TRIM1#

main69205-20100-06iST18#198909-199203

SABLE,TRIM4#

main69205-20101-D6iST182,183;ST180,181..FE199203-199309

MAUVE,TRIM3#

main69205-20101-E0iST18#199203-199309

SABLE,TRIM4#

main69205-20101-P0iST18#199203-199309

SHADOW GRAY,TRIM1#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014×2iST18#198909-199309

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-20100-02iST182,183;ST180,181..FE198909-199203

MAUVE,TRIM3#

main69206-20100-03iST18#198909-199203

SHADOW GRAY,TRIM1#

main69206-20100-06iST18#198909-199203

SABLE,TRIM4#

main69206-20101-D6iST182,183;ST180,181..FE199203-199309

MAUVE,TRIM3#

main69206-20101-E0iST18#199203-199309

SABLE,TRIM4#

main69206-20101-P0iST18#199203-199309

SHADOW GRAY,TRIM1#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-20180-03iST18#199208-199309

BLUISH GRAY M.,182

main69230-20180-07iST180..FE199105-199107

FE LIMITED,LIGHT KHAKI G. M. M.,6K7

main69230-20180-08iST18#199208-199309

SUPER WHITE 2,040

main69230-20180-17iST180..FE199105-199107

FE LIMITED,BLACKISH KHAKI M.,6K8

main69230-20180-G0iST18#199208-199309

DARK MOSS GREEN M.M,6M4

main69230-20190iST18#198909-199108

main69230-20200-A0iST18#199108-199208

SUPER WHITE 2,040

main69230-20200-B0iST18#199108-199208

BLUISH GRAY M.,182

main69230-20200-B1iST180,182..FE199208-199309

DARK BLUISH GRAY MC,191

main69230-20200-D0iST18#199108-199309

DARK WINE M.M,3K1

main69230-20200-G0iST18#199108-199208

DARK MOSS GREEN M.M,6M4

main69230-20200-G1iST18#199108-199309

BLACKISH KHAKI M.,6K8

main69230-20200-H0iST18#199108-199208

MEDIUM TURQUOISE M.,749

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04014×4iST18#199208-199309

OD=6.5

main90541-04018×4iST18#199208-199309

OD=8.5

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-20180-03iST18#199208-199309

BLUISH GRAY M.,182

main69240-20180-07iST180..FE199105-199107

FE LIMITED,LIGHT KHAKI G. M. M.,6K7

main69240-20180-08iST180..FE199105-199107

FE LIMITED,SUPER WHITE 2,040

main69240-20180-17iST180..FE199105-199107

FE LIMITED,BLACKISH KHAKI M.,6K8

main69240-20180-G0iST18#199208-199309

DARK MOSS GREEN M.M,6M4

main69240-20190iST18#198909-199108

main69240-20200-A0iST18#199108-199208

SUPER WHITE 2,040

main69240-20200-B0iST18#199108-199208

BLUISH GRAY M.,182

main69240-20200-B1iST180,182..FE199208-199309

DARK BLUISH GRAY MC,191

main69240-20200-D0iST18#199108-199309

DARK WINE M.M,3K1

main69240-20200-G0iST18#199108-199208

DARK MOSS GREEN M.M,6M4

main69240-20200-G1iST18#199108-199309

BLACKISH KHAKI M.,6K8

main69240-20200-H0iST18#199108-199208

MEDIUM TURQUOISE M.,749

69330LOCK ASSY, REAR DOOR, RH

main69050-20110iST18#..FG,TR198909-199108

MITUI

main69050-20120iST18#..FE,TRG198909-199108

MITUI

main69050-20240iST18#..FG,TR199108-199306

MITSUI

main69050-20241iST18#..FG,TR199306-199309

MITSUI

main69050-20250iST18#..FE,TRG199108-199306

MITSUI

main69050-20251iST18#..FE,TRG199306-199309

MITSUI

main69050-20260iST18#..FG,TR199108-199309

AISHIN

main69050-20270iST18#..FE,TRG199108-199309

AISHIN

main69330-20350iST18#198909-199108

69340LOCK ASSY, REAR DOOR, LH

main69060-20110iST18#..FG,TR198909-199108

MITUI

main69060-20120iST18#..FE,TRG198909-199108

MITUI

main69060-20240iST18#..FG,TR199108-199306

MITSUI

main69060-20241iST18#..FG,TR199306-199309

MITSUI

main69060-20250iST18#..FE,TRG199108-199306

MITSUI

main69060-20251iST18#..FE,TRG199306-199309

MITSUI

main69060-20260iST18#..FG,TR199108-199309

AISHIN

main69060-20270iST18#..FE,TRG199108-199309

AISHIN

main69340-20350iST18#198909-199108

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070×2iST18#199304-199309

main69410-20080×2iST18#199304-199309

MISUI

main69410-20090×2iST18#198909-199304

MITUI

main69410-20100×2iST18#198909-199304

69749BCLAMP, REAR DOOR LOCK LINK

main69749-12030×2iST18#198909-199309

main69749-20050×2iST18#198909-199309

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050×2iST18#199108-199309

GREEN

main69759-24060×6iST18#198909-199108

GRAY

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050×2iST18#198909-199309

PINK

main69759-24070×2iST18#198909-199309

9010506074

main90105-06074

9015180014

main90151-80014

9015960349

main90159-60349

9018905092

main90189-05092

9165140612

main91651-40612

9353055016

main93530-55016

20 parts on this diagram · 1 diagram in section
