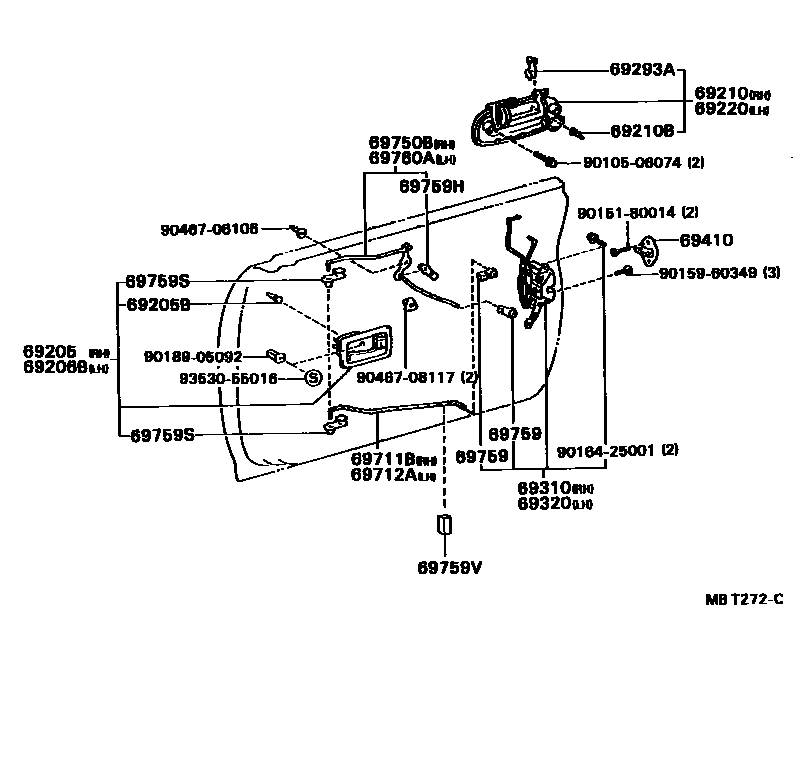

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-20100-02iST182,183;ST180,181..FE198909-199203

MAUVE,TRIM3#

sub69205-20101

main69205-20100-03iST18#198909-199203

SHADOW GRAY,TRIM1#

sub69205-20101

main69205-20100-06iST18#198909-199203

SABLE,TRIM4#

sub69205-20101

main69205-20101-D6iST182,183;ST180,181..FE199203-199309

MAUVE,TRIM3#

sub69205-20101

sub69205-20120

main69205-20101-E0iST18#199203-199309

SABLE,TRIM4#

sub69205-20101

sub69205-20120

main69205-20101-P0iST18#199203-199309

SHADOW GRAY,TRIM1#

sub69205-20101

sub69205-20120

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iST18#198909-199309

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-20100-02iST182,183;ST180,181..FE198909-199203

MAUVE,TRIM3#

sub69206-20101

main69206-20100-03iST18#198909-199203

SHADOW GRAY,TRIM1#

sub69206-20101

main69206-20100-06iST18#198909-199203

SABLE,TRIM4#

sub69206-20101

main69206-20101-D6iST182,183;ST180,181..FE199203-199309

MAUVE,TRIM3#

sub69206-20101

sub69206-20120

main69206-20101-E0iST18#199203-199309

SABLE,TRIM4#

sub69206-20101

sub69206-20120

main69206-20101-P0iST18#199203-199309

SHADOW GRAY,TRIM1#

sub69206-20101

sub69206-20120

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-20220-03iST18#199208-199309

BLUISH GRAY M.,182

sub69210-20320

sub69210-20260

main69210-20220-07iST180..FE199105-199107

FE LIMITED,LIGHT KHAKI G. M. M.,6K7

sub69210-20320

sub69210-20260

main69210-20220-08iST18#199208-199309

SUPER WHITE 2,040

sub69210-20320

sub69210-20260

main69210-20220-08iST180..FE199105-199107

FE LIMITED,SUPER WHITE 2,040

sub69210-20320

sub69210-20260

main69210-20220-17iST180..FE199105-199107

FE LIMITED,BLACKISH KHAKI M.,6K8

sub69210-20320

sub69210-20260

main69210-20220-G0iST18#199208-199309

DARK MOSS GREEN M.M,6M4

sub69210-20320

sub69210-20260

main69210-20230iST18#198909-199108

main69210-20260-A0iST18#199108-199208

SUPER WHITE 2,040

sub69210-20220

main69210-20260-B0iST18#199108-199208

BLUISH GRAY M.,182

sub69210-20220

main69210-20260-B1iST180,182..FE199208-199309

DARK BLUISH GRAY MC,191

sub69210-20220

main69210-20260-B1iST180..FG199305-199309

sub69210-20220

main69210-20260-D0iST18#199108-199309

DARK WINE M.M,3K1

sub69210-20220

main69210-20260-G0iST18#199108-199208

DARK MOSS GREEN M.M,6M4

sub69210-20220

main69210-20260-G1iST18#199108-199309

BLACKISH KHAKI M.,6K8

sub69210-20220

main69210-20260-H0iST18#199108-199208

MEDIUM TURQUOISE M.,749

sub69210-20220

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iST18#199208-199309

OD=6.5

main90541-04018iST18#198909-199208

main90541-04018iST18#199208-199309

OD=8.5

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-20220-03iST18#199208-199309

BLUISH GRAY M.,182

sub69220-20340

sub69220-20260

main69220-20220-07iST180..FE199105-199107

FE LIMITED,LIGHT KHAKI G. M. M.,6K7

sub69220-20340

sub69220-20260

main69220-20220-08iST180..FE199105-199107

FE LIMITED,SUPER WHITE 2,040

sub69220-20340

sub69220-20260

main69220-20220-08iST18#199208-199309

SUPER WHITE 2,040

sub69220-20340

sub69220-20260

main69220-20220-17iST180..FE199105-199107

FE LIMITED,BLACKISH KHAKI M.,6K8

sub69220-20340

sub69220-20260

main69220-20220-G0iST18#199208-199309

DARK MOSS GREEN M.M,6M4

sub69220-20340

sub69220-20260

main69220-20230iST18#198909-199108

main69220-20260-A0iST18#199108-199208

SUPER WHITE 2,040

sub69220-20220

main69220-20260-B0iST18#199108-199208

BLUISH GRAY M.,182

sub69220-20220

main69220-20260-B1iST180,182..FE199208-199309

DARK BLUISH GRAY MC,191

sub69220-20220

main69220-20260-B1iST180..FG199305-199309

sub69220-20220

main69220-20260-D0iST18#199108-199309

DARK WINE M.M,3K1

sub69220-20220

main69220-20260-G0iST18#199108-199208

DARK MOSS GREEN M.M,6M4

sub69220-20220

main69220-20260-G1iST18#199108-199309

BLACKISH KHAKI M.,6K8

sub69220-20220

main69220-20260-H0iST18#199108-199208

MEDIUM TURQUOISE M.,749

sub69220-20220

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iST18#198909-199208

NATURAL

main69293-12040iST18#198909-199208

main69293-12040iST18#199208-199309

69310LOCK ASSY, FRONT DOOR, RH

main69030-20340iST18#198909-199108

MITUI

main69030-20350iST18#198909-199108

main69030-20410iST18#199108-199309

MITUI

69320LOCK ASSY, FRONT DOOR, LH

main69040-20310iST18#..FG,TR198909-199108

MITUI

main69040-20320iST18#..FE,TRG198909-199108

MITUI

main69040-20330iST18#..FG,TR198909-199108

main69040-20340iST18#..FE,TRG198909-199108

main69040-20420iST18#..FG,TR199108-199309

MITUI

main69040-20430iST18#..FE,TRG199108-199309

MITUI

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iST18#199304-199309

main69410-20080iST18#199304-199309

MITUI

main69410-20090iST18#198909-199304

MITUI

main69410-20100iST18#198909-199304

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-20170iST18#198909-199309

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-20170iST18#198909-199309

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-20040iST18#198909-199306

main69750-20041iST18#199306-199309

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-24050iST18#198909-199309

GREEN

main69759-24060iST18#198909-199309

GRAY

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-24080iST18#198909-199309

main69759-24090iST18#198909-199309

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iST18#198909-199309

PINK

main69759-24070iST18#198909-199309

69759VSILENCER, FRONT DOOR LOCK LINK

main69759-14010iST18#198909-199309

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-20040iST18#198909-199306

main69760-20041iST18#199306-199309

9010506074

main90105-06074

9015180014

main90151-80014

9015960349

main90159-60349

9016425001

main90164-25001

9018905092

main90189-05092

9046706106

main90467-06106

9046708117

main90467-08117

9353055016

main93530-55016

26 parts on this diagram · 1 diagram in section
