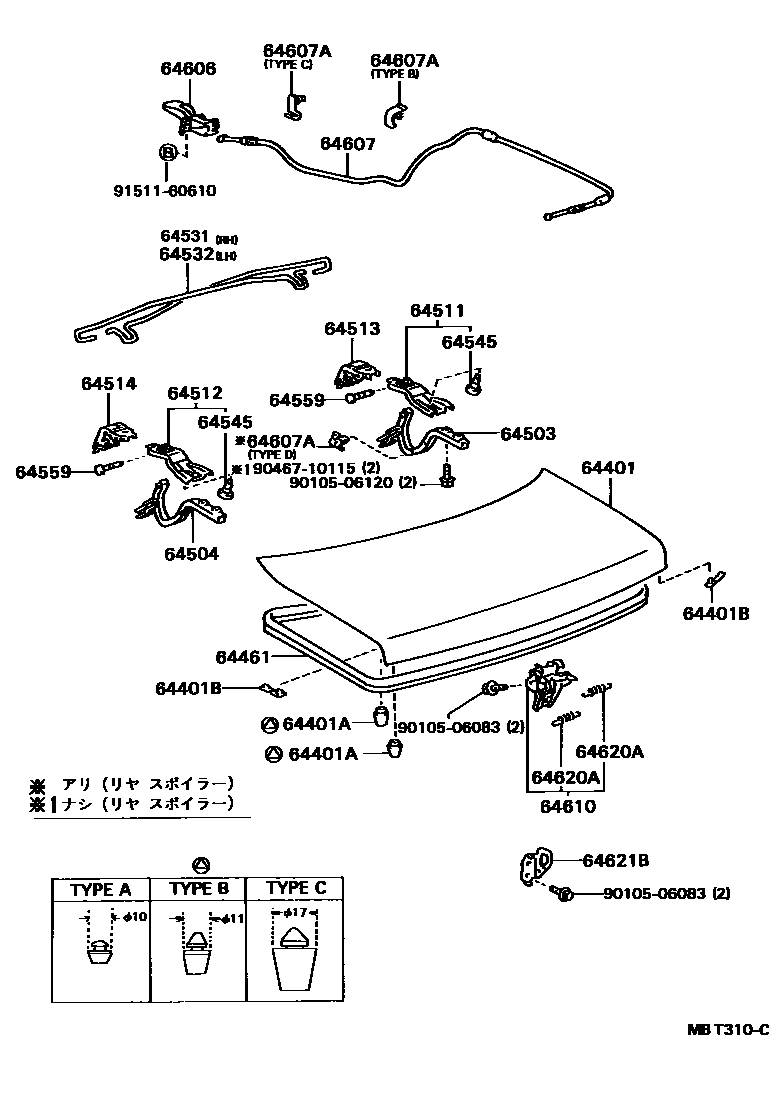

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64401BPLUG, HOLE(FOR LUGGAGE COMPARTMENT DOOR PANEL)
64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR
64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH
64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH
64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH
64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH
64513SUPPORT, LUGGAGE DOOR HINGE, NO.2 RH
64514SUPPORT, LUGGAGE DOOR HINGE, NO.2 LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64545CUSHION, LUGGAGE DOOR HINGE
64559PIN, LUGGAGE DOOR HINGE
64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)
L=21.2, WD=5.2
L=20.3,WD=5.5
L=21.0, WD=6.2
64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK
9010506083
main90105-06083
9010506120
main90105-06120
9046710115
main90467-10115
9151160610
main91511-60610
24 parts on this diagram · 1 diagram in section
