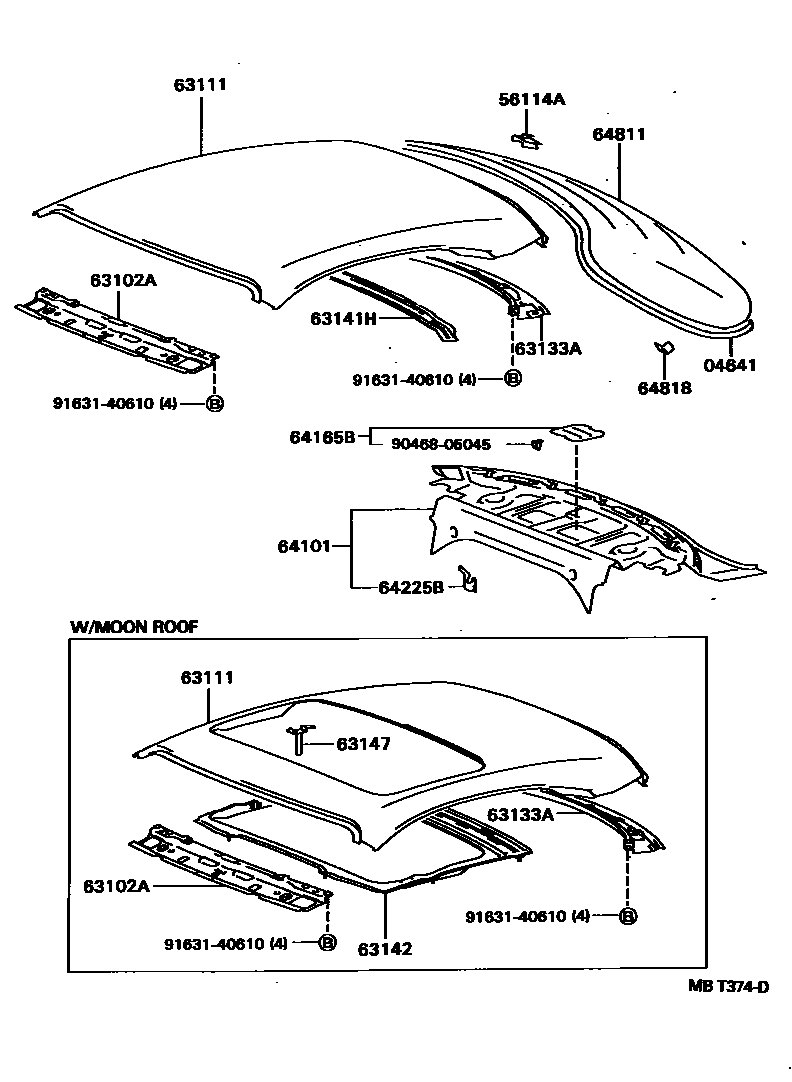

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

04641DAM KIT, BACK WINDOW GLASS

main04562-12010iST18#198909-199309

56114ARETAINER, BACK WINDOW GLASS

main56114-20010×2iST18#198909-199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20903iST18#198909-199309

main63102-20904iST182,183;ST180,181..FE199108-199309

63111PANEL, ROOF

main63111-20370iST18#198909-199309

main63111-20450iST18#198909-199108

63133AFRAME, BACK WINDOW, UPPER

main63133-20170iST18#198909-199309

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20110iST18#198909-199309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20070iST18#198909-199108

63147BRACKET, ROOF PANEL REINFORCEMENT

main63147-20030×2iST18#198909-199108

64101PANEL SUB-ASSY, UPPER BACK

main64101-20350iST182,183;ST180,181..FE198909-199309

main64101-20420iST18#198909-199309

64165BCOVER, UPPER BACK PANEL HOLE, NO.1

main64165-20080×2iST18#198909-199309

64225BHANGER, REAR SEAT CUSHION SUPPORT

main64225-20020iST180..FG198909-199309

64811GLASS, BACK WINDOW

main64811-20840iST180,181..FE;ST182,183..TR,TRG198909-199309

main64811-2B060iST180,181;ST182,183..TR,TRG198909-199309

main64811-2B070iST180,181..FE;ST182,183..TR,TRG198909-199309

main64811-2B100iST180,181..FE;ST182,183..TR,TRG; ST180,181..FG,TR199108-199309

main64811-2B110iST182,183..FE198909-199309

main64811-2B120iST180,181..FE;ST182,183..TR,TRG; ST182,183..FE198909-199309

main64811-2B130iST182,183..FE198909-199309

main64811-2B160iST180,181;ST182,183..TR,TRG198909-199309

64818SPACER, BACK WINDOW GLASS

main64818-22060×9iST18#198909-199309

9046805045

main90468-05045

9163140610

main91631-40610

15 parts on this diagram · 2 diagrams in section
