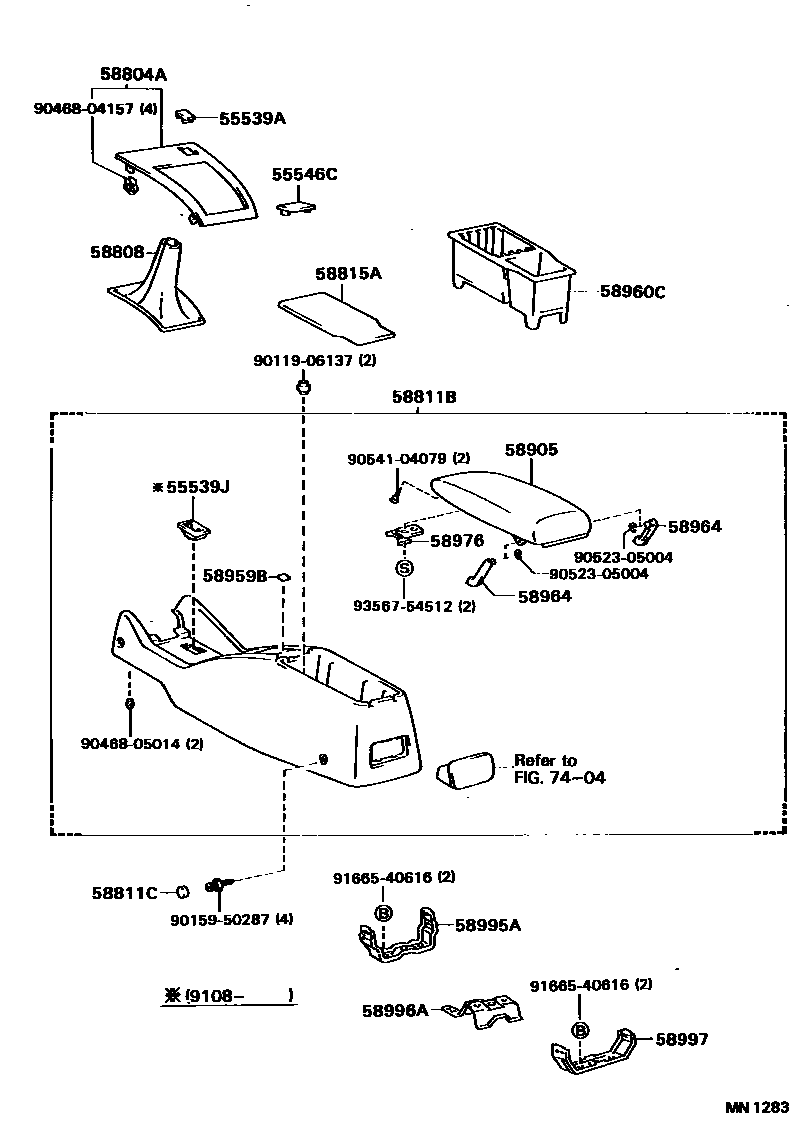

CONSOLE BOX & BRACKET

55539ACOVER, SPARE SWITCH HOLE

main55539-20080-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main55539-20080-12iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main55539-20080-16iST18#198909-199309

SABLE,TRIM4#

55539JCOVER, SPARE SWITCH HOLE

main55539-32030-16iST18#199108-199309

SABLE,TRIM4#

main55539-32030-B0iST18#199108-199309

SHADOW GRAY,TRIM1#

main55539-32030-D1iST182,183;ST180,181..FE199108-199309

MAUVE,TRIM3#

55546CCOVER, POWER SEAT SWITCH HOLE

main55546-20020-03iST18#..CI,EFI198909-199309

SHADOW GRAY,TRIM1#

main55546-20020-12iST180,181..FE;ST182,183..EFI198909-199309

MAUVE,TRIM3#

main55546-20020-16iST18#..CI,EFI198909-199309

SABLE,TRIM4#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-20040-02iST182,183..ATM;ST180,181..ATM..FE198909-199309

MAUVE,TRIM3#

main58804-20040-03iST18#..ATM198909-199309

SHADOW GRAY,TRIM1#

main58804-20040-06iST18#..ATM198909-199309

SABLE,TRIM4#

main58804-20050-02iST182,183..MTM;ST180,181..MTM..FE198909-199309

MAUVE,TRIM3#

main58804-20050-03iST18#..MTM198909-199309

SHADOW GRAY,TRIM1#

main58804-20050-06iST18#..MTM198909-199309

SABLE,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-20080-03iST18#..MTM198909-199001

SHADOW GRAY,TRIM1#

main58808-20080-12iST182,183..MTM;ST180,181..MTM..FE198909-199001

MAUVE,TRIM3#

main58808-20080-16iST18#..MTM198909-199001

SABLE,TRIM4#

main58808-20081-02iST182,183..MTM;ST180,181..MTM..FE199001-199008

MAUVE,TRIM3#

main58808-20081-03iST18#..MTM199001-199008

SHADOW GRAY,TRIM1#

main58808-20081-06iST18#..MTM199001-199008

SABLE,TRIM4#

main58808-20082-02iST182,183..MTM;ST180,181..MTM..FE199008-199309

MAUVE,TRIM3#

main58808-20082-03iST18#..MTM199008-199309

SHADOW GRAY,TRIM1#

main58808-20082-06iST18#..MTM199008-199309

SABLE,TRIM4#

58811BBOX, CONSOLE

main58801-20210-03iST18#198909-199108

SHADOW GRAY,TRIM1#

main58801-20210-12iST182,183;ST180,181..FE198909-199108

MAUVE,TRIM3#

main58801-20210-16iST18#198909-199108

SABLE,TRIM4#

main58801-20211-D6iST182,183;ST180,181..FE199108-199309

MAUVE,TRIM3#

main58801-20211-E0iST18#199108-199309

SABLE,TRIM4#

main58801-20211-P0iST18#199108-199309

SHADOW GRAY,TRIM1#

58811CCAP(FOR CONSOLE)

main90339-10009-03×4iST18#198909-199309

SHADOW GRAY,TRIM1#

main90339-10009-06×4iST180,181..FG,TR; ST182,183;ST180,181..FE199210-199309

SABLE,TRIM3#,4#; SABLE,TRIM4#

main90339-10009-12×4iST182,183;ST180,181..FE198909-199210

MAUVE,TRIM3#

58815ACARPET, CONSOLE BOX

main58815-20020-01iST180,181..FE;ST182,183..TR,TRG; ST180,181..FG,TR198909-199309

BLACK,TRIM1#,3#,4#; BLACK,TRIM1#,4#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-20120-03iST18#198909-199309

SHADOW GRAY,TRIM1#

main58905-20120-12iST182,183;ST180,181..FE198909-199309

MAUVE,TRIM3#

main58905-20120-16iST18#198909-199309

SABLE,TRIM4#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010×2iST18#198909-199309

58960CHOLDER ASSY, CASSETTE CASE

main58960-20010iST180,181..FE;ST182,183..TR,TRG; ST182,183..FE;ST180,181..FG,TR199108-199309

main58960-20030iST182,183;ST180,181..FE199108-199309

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-20020iST18#198909-199309

main58964-90K00iST18#198909-199309

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-20020iST18#198909-199309

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-20050iST18#198909-199309

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-20050iST18#198909-199309

58997BRACKET, CONSOLE BOX MOUNTING, NO.3

main58997-20020iST18#198909-199309

7404ASH RECEPTACLE

→ Go to FIG 74-04

9011906137

main90119-06137

9015950287

main90159-50287

9046804157

main90468-04157

9046805014

main90468-05014

9052305004

main90523-05004

9054104079

main90541-04079

9166540616

main91665-40616

9356754512

main93567-54512

25 parts on this diagram · 1 diagram in section
