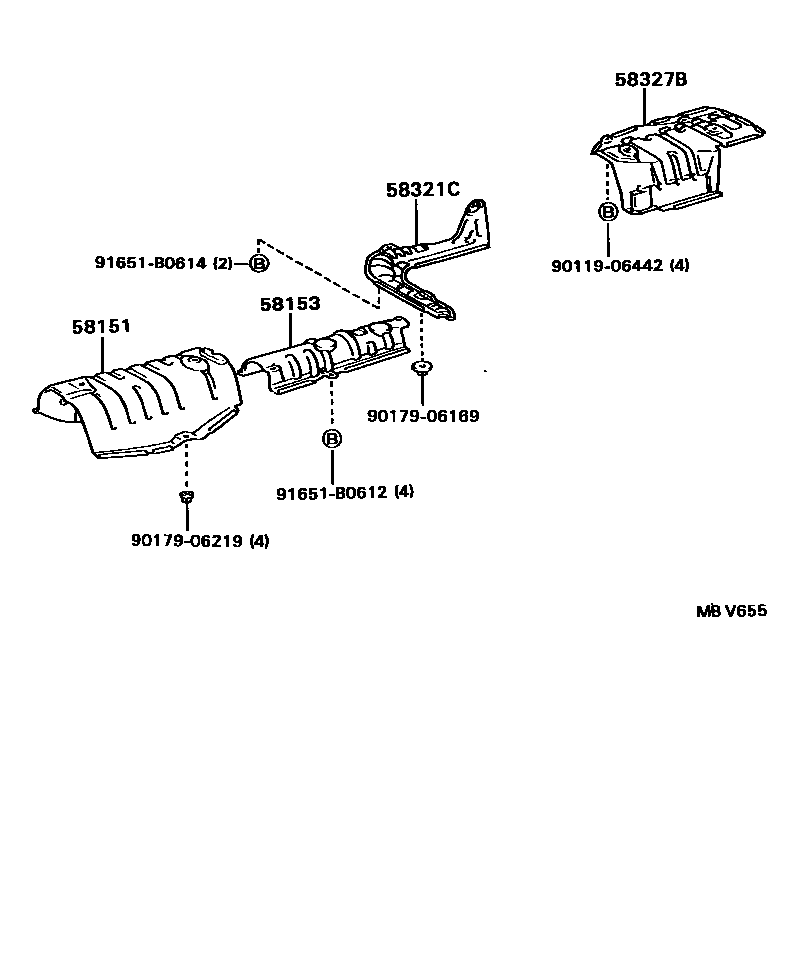

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-20060iST182,183199008-199309

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-20070iST182199008-199309

main58153-20080iST183..TWC198909-199008

58321CINSULATOR, REAR FLOOR HEAT, FRONT

main58321-20060iST18#198909-199309

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-20070iST18#198909-199309

9011906442

main90119-06442

9017906169

main90179-06169

9017906219

main90179-06219

91651B0612

main91651-B0612

91651B0614

main91651-B0614

9 parts on this diagram · 1 diagram in section
