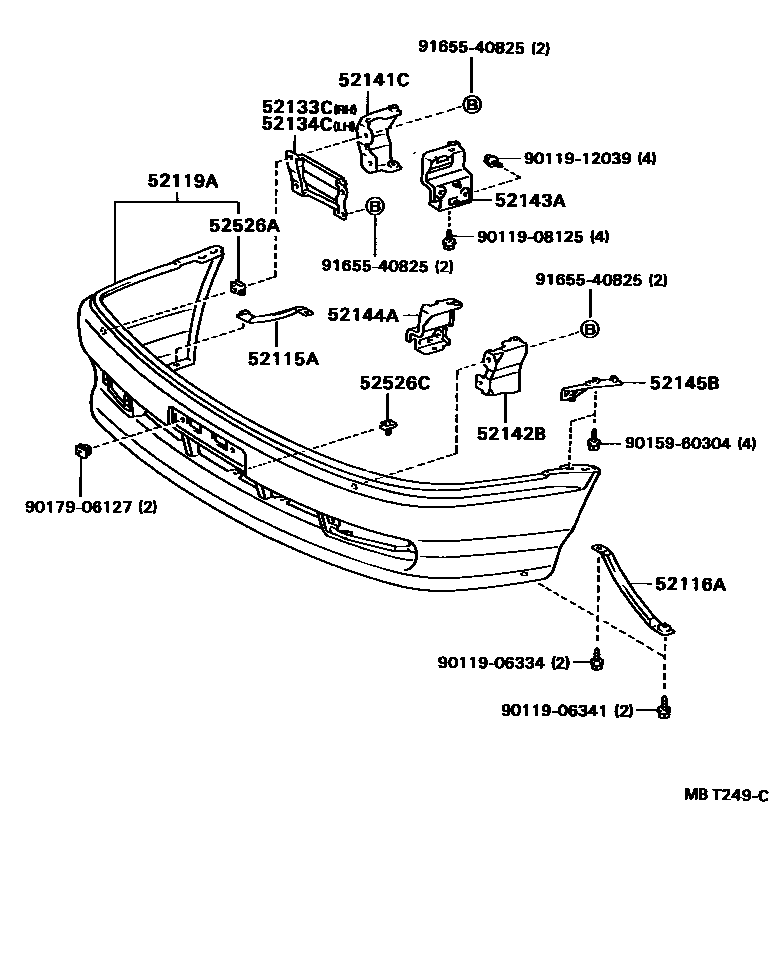

FRONT BUMPER & BUMPER STAY
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
RED MICA,3H4
BLUISH GRAY M,182
DARK BLUE M M,8G5
LIGHT KHAKI G M M,6K7
SUPER WHITE 2,040
MAUVE G M,3J3
BLACKISH KHAKI M,6K8
SUPER WHITE 2,040
BLUISH GLAY,182
DARK WINE M.M,3K1
DARK MOSSGREEN M.M,6M4
BLACKISH KHAKI M,6K8
BLACKISH KHAKI M,6K8
MEDIUM TURQUOISEM0,749
52133CREINFORCEMENT, FRONT BUMPER BAR, RH
52134CREINFORCEMENT, FRONT BUMPER BAR, LH
52141CARM, FRONT BUMPER, RH
52142BARM, FRONT BUMPER, LH
52143AARM, FRONT BUMPER, INNER RH
52144AARM, FRONT BUMPER, INNER LH
52145BBRACKET, FRONT BUMPER SIDE MOUNTING
52526ARETAINER, FRONT BUMPER, LOWER NO.1
52526CRETAINER, FRONT BUMPER, LOWER
9011906334
main90119-06334
9011906341
main90119-06341
9011908125
main90119-08125
9011912039
main90119-12039
9015960304
main90159-60304
9017906127
main90179-06127
9165540825
main91655-40825
19 parts on this diagram · 1 diagram in section
