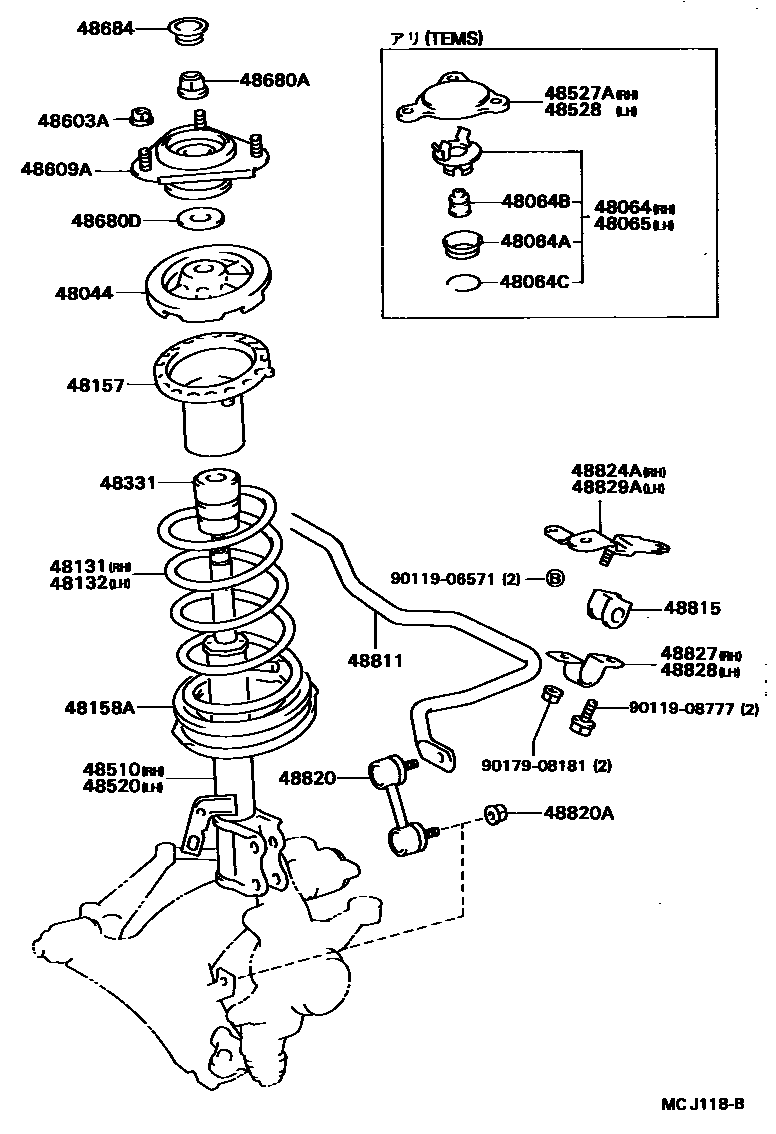

FRONT SPRING & SHOCK ABSORBER
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH
sub48064-16010
48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)
48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)
48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)
48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH
48157INSULATOR, FRONT COIL SPRING, UPPER
48158AINSULATOR, FRONT COIL SPRING, LOWER
48331BUMPER, FRONT SPRING, NO.1
48527ACAP, FRONT SHOCK ABSORBER, RH
48528CAP, FRONT SHOCK ABSORBER, LH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48609ASUPPORT SUB-ASSY, FRONT SUSPENSION
48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)
48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)
48684COVER, BEARING DUST
48811BAR, STABILIZER, FRONT
48815BUSH, FRONT STABILIZER BAR, NO.1
48820LINK ASSY, FRONT STABILIZER
48820ANUT(FOR FRONT STABILIZER LINK)
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011906571
main90119-06571
9011908777
main90119-08777
9017908181
main90179-08181
31 parts on this diagram · 1 diagram in section
