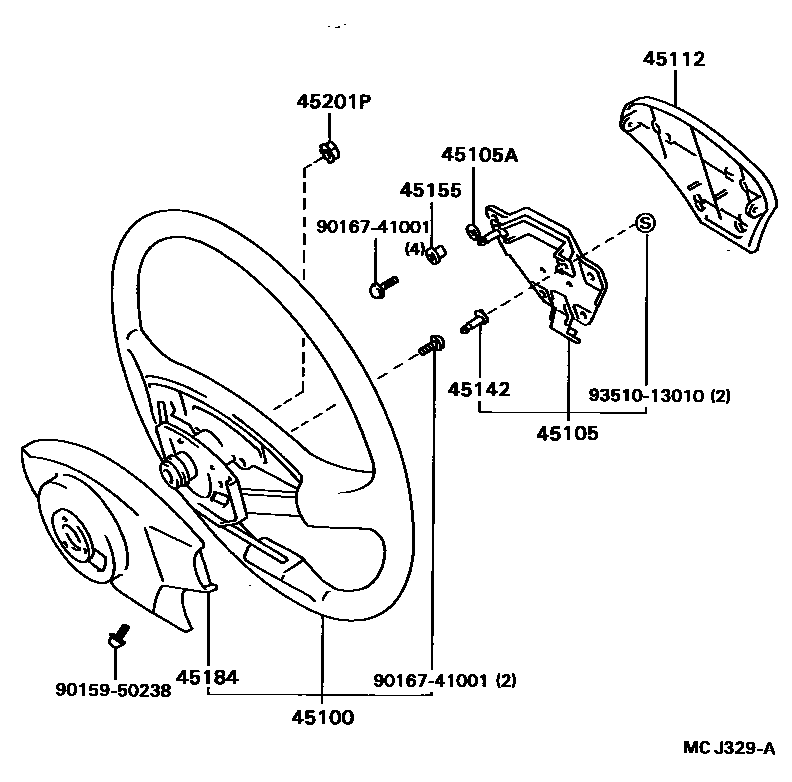

STEERING WHEEL

0001 1 0002 1 0003 1 0007 1��(SRS �� ����)

45100WHEEL ASSY, STEERING

main45100-20710-02iST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG)198909-199108

MAUVE,TRIM3#

main45100-20710-03iST183..ATM..TWC;ST180,182..TR,TRG;ST183..MTM..(TR,TRG)198909-199108

SHADOW GRAY,TRIM1#

main45100-20710-06iST180..FG199102-199108

main45100-20730-02iST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG); ST183..ATM..TR198909-199108

main45100-20730-03iST181..TR;ST183..ATM..TR; ST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG)198909-199108

main45100-20730-06iST181..TR;ST183..ATM..TR; ST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG)198909-199108

main45100-20740-02iST180,182..FE;ST183..MTM..FE198909-199108

MAUVE,TRIM3#

main45100-20740-03iST183..MTM..FE;ST180,182..FE,FG198909-199108

SHADOW GRAY,TRIM1#

main45100-20740-06iST183..MTM..FE;ST180,182..FE,FG198909-199108

SABLE,TRIM4#

main45100-20750-02iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45100-20750-03iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45100-20750-06iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45100-20760-02iST182,183..TWC198909-199108

main45100-20760-03iST182,183..TWC198909-199108

main45100-20760-06iST182,183..TWC198909-199108

main45100-20780-02iST182,183..TWC198909-199108

main45100-20780-03iST180,181..TR; ST182,183..TR,TRG199108-199309

main45100-20780-06iST180,181..TR; ST182,183..TR,TRG199108-199309

main45100-20800-02iST180,181..FE; ST182,183..FE199108-199309

main45100-20800-03iST180,181..FE,FG; ST182,183..FE199108-199309

main45100-20800-06iST180,181..FE,FG; ST182,183..FE199108-199309

main45100-2B040-D0iST180,182..FE199208-199309

main45100-2B040-E0iST183..ATM..TWC;ST180,182..TR,TRG;ST181,183..MTM..(TR,TRG)199108-199309

SABLE,TRIM4#

main45100-2B040-P0iST180..FG199305-199309

main45100-2B060-D0iST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG); ST183..ATM..TR199108-199309

main45100-2B060-E0iST181,183..ATM..TR; ST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG)199108-199309

main45100-2B060-P0iST181,183..ATM..TR; ST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG)199108-199309

main45100-2B080-B0iST180,182..FE,FG;ST181,183..MTM..FE199108-199309

main45100-2B080-D0iST180,182..FE;ST181,183..MTM..FE199108-199309

main45100-2B080-E0iST180,182..FE,FG;ST181,183..MTM..FE199108-199309

main45100-2B090-B0iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

main45100-2B090-D0iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

main45100-2B090-E0iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

main45100-2B110-B0iST182,183..FE199108-199309

main45100-2B110-D0iST182,183..FE199108-199309

main45100-2B110-E0iST182,183..FE199108-199309

main45100-2B150-B0iST182,183..TR,TRG199108-199309

main45100-2B150-D0iST182,183..TR,TRG199108-199309

main45100-2B150-E0iST182,183..TR,TRG199108-199309

45105PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1

main45105-20270iST180..FG199201-199309

main45105-20280iST181,183..ATM..TR199108-199309

main45105-20290iST183..MTM..FE;ST180,182..FE,FG198909-199108

main45105-20300iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45105-20380iST180,182..FE,FG;ST181,183..MTM..FE199108-199309

main45105-20390iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

45105ACUSHION(FOR HORN BUTTON CONTACT PLATE)

main90540-08014×4iST18#..FE,FG198909-199309

45112PAD, STEERING WHEEL

main45112-20430-02iST182..FE199011-199012

main45112-20430-03iST18#..TR,TRG198909-199309

SHADOW GRAY,TRIM1#

main45112-20430-06iST180..FG199201-199309

main45112-20460-02iST18#..FE198909-199108

MAUVE,TRIM3#

main45112-20460-03iST18#..FE,FG198909-199108

SHADOW GRAY,TRIM1#

main45112-20460-06iST18#..FE,FG198909-199108

SABLE,TRIM4#

main45112-20570-B0iST18#..FE,FG199108-199309

SHADOW GRAY,TRIM1#

main45112-20570-D0iST18#..FE199108-199309

MAUVE,TRIM3#

main45112-20570-E0iST18#..FE,FG199108-199309

SABLE,TRIM4#

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-12090×2iST18#..FE,FG198909-199108

45155SPACER, HORN BUTTON CONTACT PLATE

main45155-22040×4iST18#..FE,FG198909-199309

45184COVER, STEERING WHEEL BOSS, LOWER

main45180-20110-03iST180..FG199305-199309

main45180-20110-12iST180..TR; ST181..MTM..TR199108-199208

MAUVE,MAUVE,TRIM3#

main45180-20110-16iST180..TR; ST181..MTM..TR199108-199208

SABLE,SABLE,TRIM4#

main45180-20120-B0iST180,182..FE,FG;ST181,183..MTM..FE199108-199309

SHADOW GRAY,TRIM1#

main45180-20120-D0iST180,182..FE;ST181,183..MTM..FE199108-199309

MAUVE,TRIM3#

main45180-20120-E0iST180,182..FE,FG;ST181,183..MTM..FE199108-199309

SABLE,TRIM4#

main45180-20130-02iST180,182..FE;ST183..MTM..FE198909-199108

MAUVE,TRIM3#

main45180-20130-03iST183..MTM..FE;ST180,182..FE,FG198909-199108

SHADOW GRAY,TRIM1#

main45180-20130-06iST183..MTM..FE;ST180,182..FE,FG198909-199108

SABLE,TRIM4#

main45184-20270-02iST182..TR,TRG;ST183..ATM..TWC;ST183..MTM..(TR,TRG); ST183..ATM..TR198909-199309

main45184-20270-03iST181..TR;ST183..ATM..TR198909-199108

SHADOW GRAY,TRIM1#

main45184-20270-06iST182..FE199011-199012

main45184-20290-02iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45184-20290-03iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45184-20290-06iST181..FE;ST183..ATM..FE; ST182..FE;ST183..MTM..FE198909-199108

main45184-20400-B0iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

main45184-20400-D0iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

main45184-20400-E0iST181,183..ATM..FE; ST182..FE;ST183..MTM..FE199108-199309

45201PNUT, STEERING WHEEL SET

main90179-12071iST18#199306-199309

main90179-12086iST18#198909-199306

9015950238

main90159-50238

9016741001

main90167-41001

9351013010

main93510-13010

11 parts on this diagram · 4 diagrams in section
