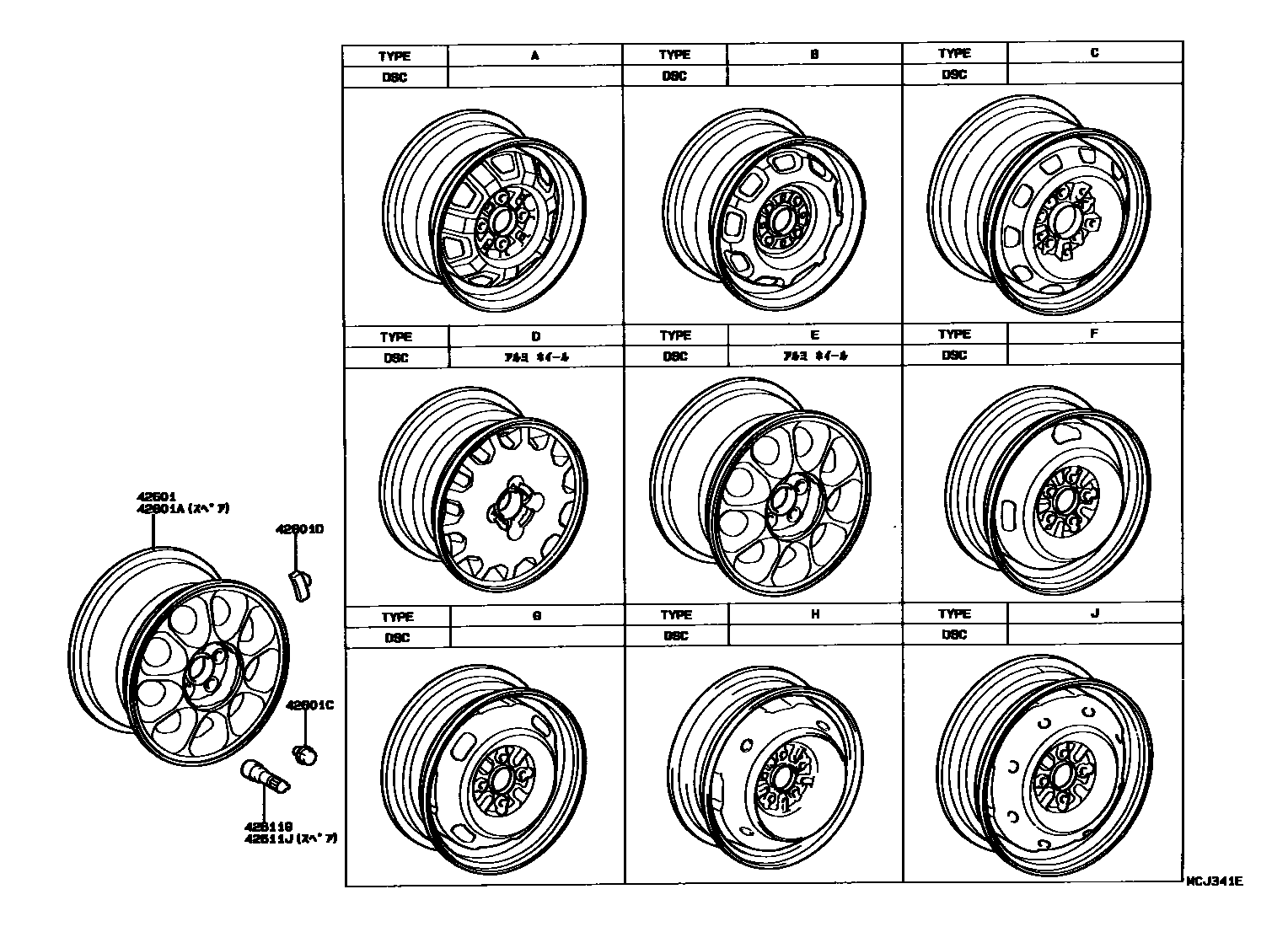

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-20300-03×4iST180..FG198909-199108

main42611-20650-03×4iST180,181..FE,TR198909-199004

main42611-20660-01×4iST182,183198910-199108

main42611-20700×4iST180,181198909-199108

main42611-20740×4iST182,183..EFI; ST182,183..TWC198910-199108

42601AWHEEL, DISC (FOR SPARE)

main42611-16200×2iST180,181198909-199108

main42611-1A010iST180,181199008-199108

main42611-20440iST182,183198909-199108

main42611-20610iST18#199108-199309

main42611-20660-01iST18#199108-199309

main42611-20740iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

42601CNUT, HUB (FOR AXLE)

main90942-01007×16iST180,181198909-199108

main90942-01021×20iST18#199108-199309

main90942-01033×16iST180,181198909-199108

main90942-01062×20iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

42601DWEIGHT, BALANCE (FOR DISC WHEEL)

main90942-03017iST18#198909-199309

main90942-03020iST18#198909-199309

main90942-03022iST18#198909-199309

main90942-03025iST18#198909-199309

main90942-03027iST18#198909-199309

main90942-03029iST18#198909-199309

main90942-03031iST18#198909-199309

main90942-03041iST18#198909-199309

main90942-03098iST18#198909-199309

main90942-03099iST18#198909-199309

main90942-03100iST18#198909-199309

main90942-03101iST18#198909-199309

main90942-03102iST18#198909-199309

main90942-03108iST18#198909-199309

main90942-03109iST18#198909-199309

main90942-03119iST180,181198909-199108

main90942-03120iST180,181198909-199108

main90942-03121iST180,181198909-199108

main90942-03122iST180,181198909-199108

main90942-03123iST180,181198909-199108

main90942-03124iST180,181198909-199108

main90942-03125iST180,181198909-199108

main90942-03126iST180,181198909-199108

main90942-03127iST180,181198909-199108

main90942-03128iST180,181198909-199108

main90942-03129iST180,181198909-199108

main90942-03130iST180,181198909-199108

main90942-03131iST180,181198909-199108

main90942-03132iST180,181198909-199108

main90942-03133iST180,181198909-199108

main90942-03146iST182,183..EFI; ST182,183..TWC198909-199108

main90942-03147iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03148iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03149iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03150iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03151iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03152iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03153iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03154iST182,183..EFI; ST182,183..TWC198909-199108

main90942-03155iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03156iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03157iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03158iST182,183..EFI; ST182,183..TWC198909-199108

main90942-03159iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03160iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03161iST18#198909-199309

main90942-03163iST180,181198909-199108

main90942-03167iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03194iST18#198909-199309

main90942-03195iST18#198909-199309

main90942-03196iST180,181198909-199108

main90942-03197iST180,181198909-199108

main90942-03198iST180,181198909-199108

main90942-03199iST180,181198909-199108

main90942-03200iST180,181198909-199108

main90942-03201iST180,181198909-199108

main90942-03202iST180,181198909-199108

main90942-03203iST18#198909-199309

main90942-03204iST18#198909-199309

main90942-03205iST18#198909-199309

main90942-03206iST18#198909-199309

main90942-03207iST18#198909-199309

main90942-03208iST182,183..EFI; ST182,183..TWC198909-199108

main90942-03209iST182,183..EFI; ST182,183..TWC198909-199108

main90942-03210iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03211iST182,183..EFI; ST182,183..TWC198909-199108

main90942-03212iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03213iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

main90942-03214iST180,181;ST182,183..FE; ST182,183..TR; ST182,183..TWC199108-199309

42611GVALVE (FOR TUBELESS TIRE)

main90942-05004×4iST180,181198909-199108

main90942-05009×4iST18#198909-199309

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iST18#198909-199309

6 parts on this diagram · 2 diagrams in section
