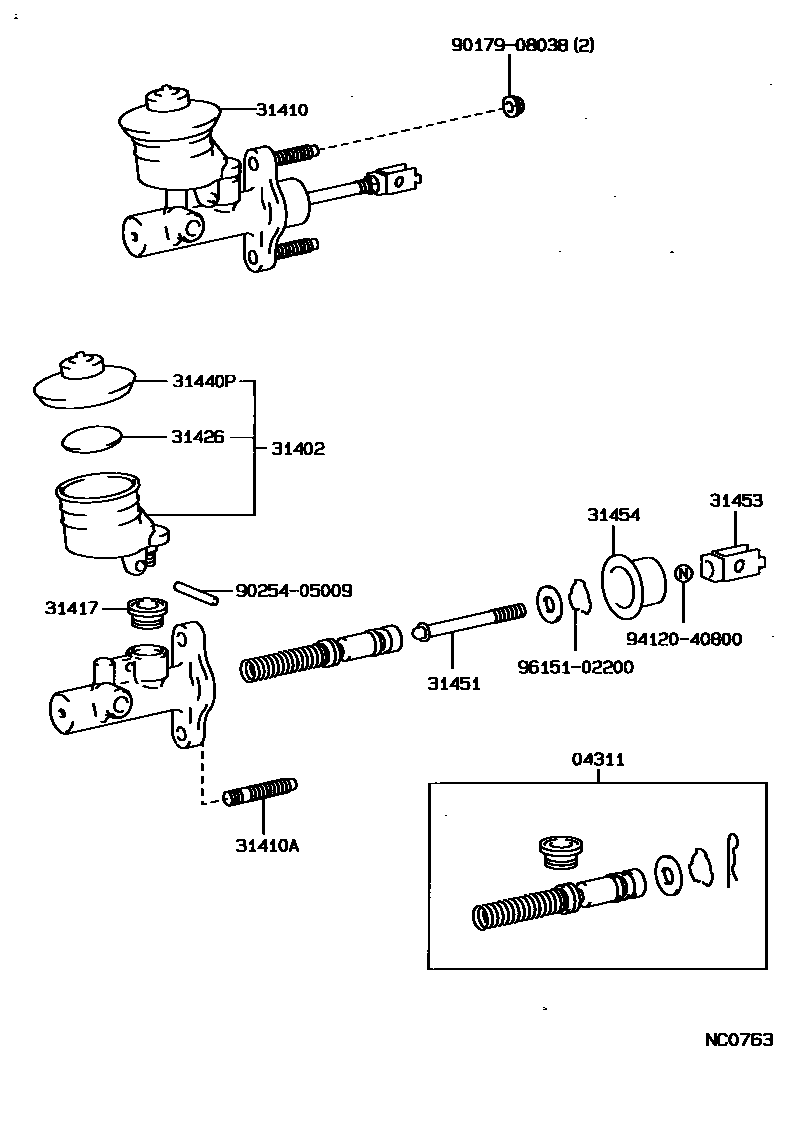

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-22040iST18#..MTM198909-199309

sub04311-12080

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-20040iST18#..MTM198909-199309

31410CYLINDER ASSY, CLUTCH MASTER

main31410-20380iST18#..MTM198909-199309

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iST18#..MTM198909-199309

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iST18#..MTM198909-199309

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iST18#..MTM198909-199309

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040iST18#..MTM198909-199309

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-20090iST18#..MTM198909-199309

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-35010iST18#..MTM198909-199309

31454BOOT, CLUTCH MASTER CYLINDER

main31454-16010iST18#..MTM199303-199309

main31454-24010iST18#..MTM198909-199303

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9615102200

main96151-02200

14 parts on this diagram · 1 diagram in section
