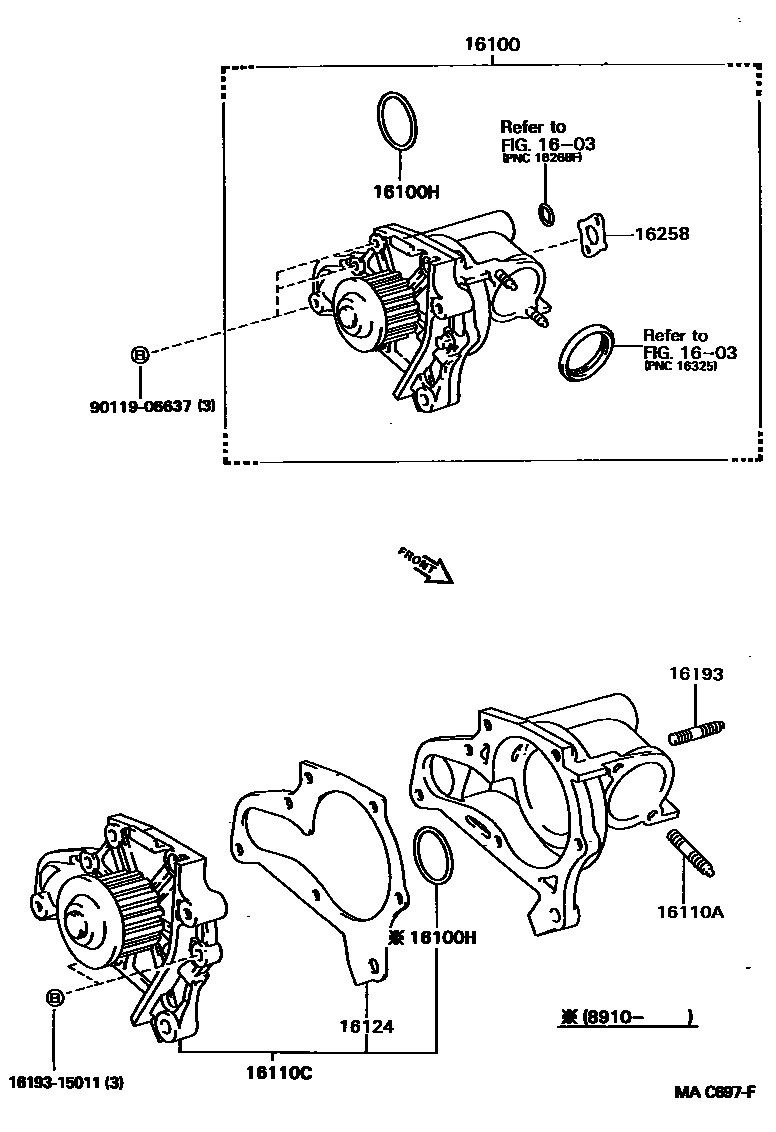

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-79125i3SGE..ST182,183198909-199012

main16100-79135i3SFE,4SFI..ST18#198909-199001

main16100-79175i3SGE..ST182,183199012-199309

main16100-79185i4SFI..ST180,181199001-199008

16100HRING, O(FOR WATER PUMP)

main90301-37005i3S#,4SF#..ST18#198909-199309

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-63010i3SFE..ST182,183; 4SFI..ST180,181199007-199008

16110CPUMP ASSY, WATER, W/O COVER

main16110-79025i3SFE,4SF#..ST18#198910-199309

main16110-79045i3SFE,4SFI..ST18#198909-198910

main16110-79115i3SGE..ST182,183198909-199309

16124GASKET, WATER PUMP COVER

main16124-74020i3SFE,4SFE..ST18#199308-199309

main16124-88460i3SGE..ST182,183199308-199309

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500i3SFE..ST182,183; 4SFI..ST180,181199007-199008

16258GASKET(FOR HEATER RETURN)

main16258-15011i3SGE..ST182,183..ATM198909-199108

main16258-74020i3SFE,4SF#..ST18#198909-199309

main16258-74030i3SGE..ST182,183..MTM198909-199108

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9011906637

main90119-06637

10 parts on this diagram · 2 diagrams in section
