ENGINE OVERHAUL GASKET KIT

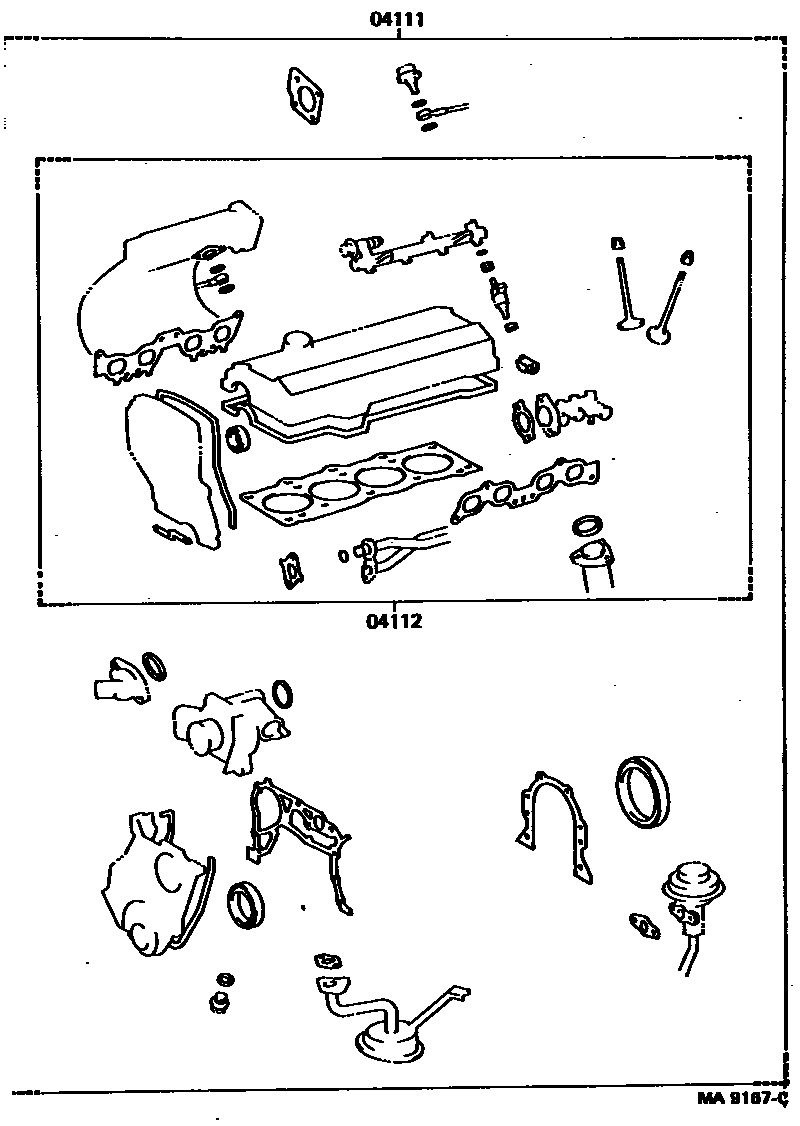

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-74120i198909-199008

main04111-74130i198909-199008

main04111-74160i198909-199108

main04111-74260i199008-199108

main04111-74270i199008-199108

main04111-74330i199108-199309

main04111-74350i199108-199309

main04111-74360i199108-199309

04112GASKET KIT, ENGINE VALVE GRIND

main04112-74120i198909-199008

main04112-74130i198909-199008

main04112-74160i198909-199108

main04112-74260i199008-199108

main04112-74270i199008-199108

main04112-74320i199108-199309

main04112-74340i199108-199309

main04112-74350i199108-199309

2 parts on this diagram · 2 diagrams in section
