MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-20200-04iST16#198708-198908

BLUE,TRIM8#

main87810-20200-11iST16#198708-198908

BLACK,TRIM2#

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-22020iST16#198802-198908

main87828-87002iST16#198708-198908

L=32

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87834-20080-34iST16#198708-198908

DEEP BLUE,TRIM8#

main87834-20080-53iST16#198708-198908

SHADOW GRAY,TRIM2#

87908BMIRROR SUB-ASSY, RH

main87931-1A410iST16#..EX,VX; ST162..GT198708-198908

main87931-20400iST16#198805-198908

main87931-20540iST16#198708-198805

87909BMIRROR SUB-ASSY, LH

main87961-1A590iST16#..EX,VX; ST162..GT198708-198908

main87961-20420iST16#198805-198908

main87961-20580iST16#198708-198805

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-20401iST16#198708-198805

main87910-20402iST16#198805-198908

main87910-20710iST16#198708-198908

main87910-20790-08iST16#198708-198805

SUPER WHITE,040,COLORED

main87910-20790-12iST16#198708-198805

RED MAICA,3H4,COLORED

main87910-20790-43iST16#198708-198805

GRAY M,168 ,23E,COLORED

main87910-20791-01iST162..VX198904-198907

BLACK,202,COLORED

main87910-20791-03iST16#198805-198908

GRAY METALLIC,168 ,23E,COLORED

main87910-20791-08iST16#198805-198908

SUPER WHITE,040,COLORED

main87910-20791-12iST16#198805-198908

RED MICA,3H4,COLORED

main87910-20830-01iST162..VX198904-198907

main87910-20830-03iST16#..EX,VX; ST162..GT198708-198908

main87910-20830-08iST16#..EX,VX; ST162..GT198708-198908

main87910-20830-11iST162..VX198904-198907

main87910-20830-12iST16#..EX,VX; ST162..GT198708-198908

main87910-2B100iST16#..EX,VX; ST162..GT198708-198908

87911GASKET, OUTER REAR VIEW MIRROR, RH

main87911-20140iST16#198708-198908

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87940-20420iST16#198708-198805

main87940-20421iST16#198805-198908

main87940-20770iST16#198708-198908

main87940-20850-08iST16#198708-198805

SUPER WHITE,040,COLORED

main87940-20850-12iST16#198708-198805

RED MAICA,3H4,COLORED

main87940-20850-43iST16#198708-198805

GRAY M,168 ,23E,COLORED

main87940-20851-01iST162..VX198904-198907

BLACK,202,COLORED

main87940-20851-03iST16#198805-198908

GRAY,METALLIC,168 ,23E,COLORED

main87940-20851-08iST16#198805-198908

SUPER WHITE,040,COLORED

main87940-20851-12iST16#198805-198908

RED MICA,3H4,COLORED

main87940-20890-01iST162..VX198904-198907

main87940-20890-03iST16#..EX,VX; ST162..GT198708-198908

main87940-20890-08iST16#..EX,VX; ST162..GT198708-198908

main87940-20890-11iST162..VX198904-198907

main87940-20890-12iST16#..EX,VX; ST162..GT198708-198908

main87940-2B160iST16#..EX,VX; ST162..GT198708-198908

87941GASKET, OUTER REAR VIEW MIRROR, LH

main87941-20160iST16#198708-198908

9014950044

main90149-50044

9017906097

main90179-06097

9331915016

main93319-15016

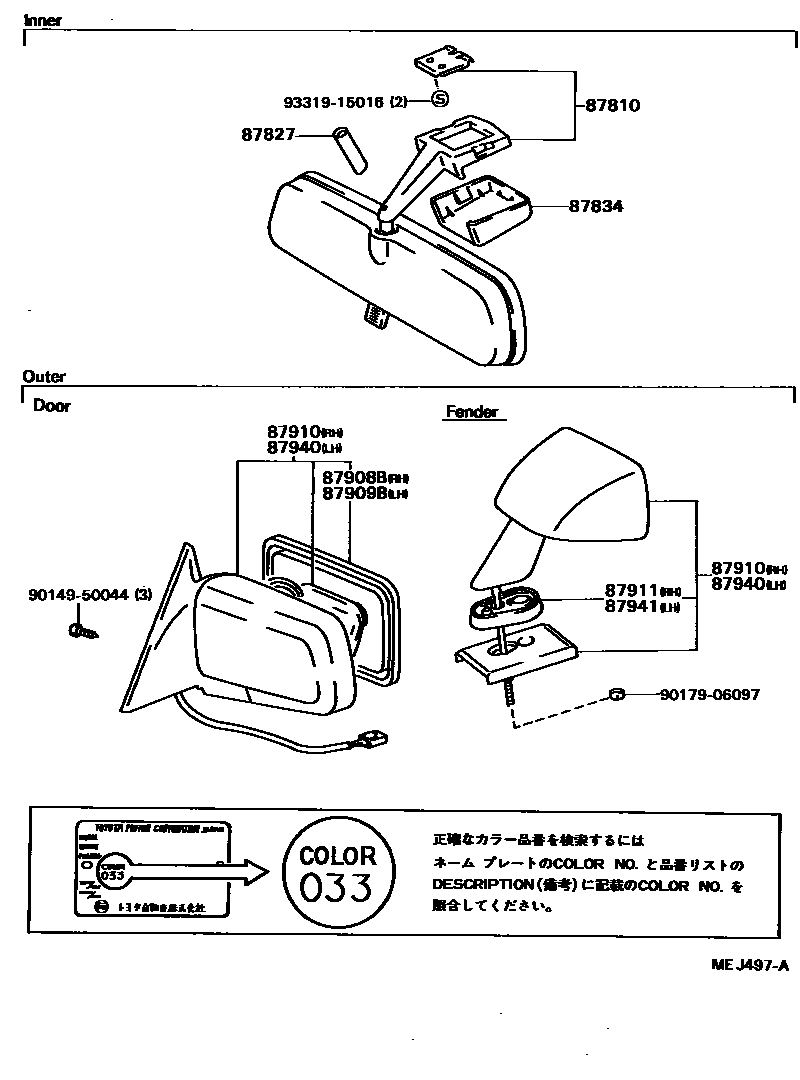

12 parts on this diagram · 1 diagram in section
