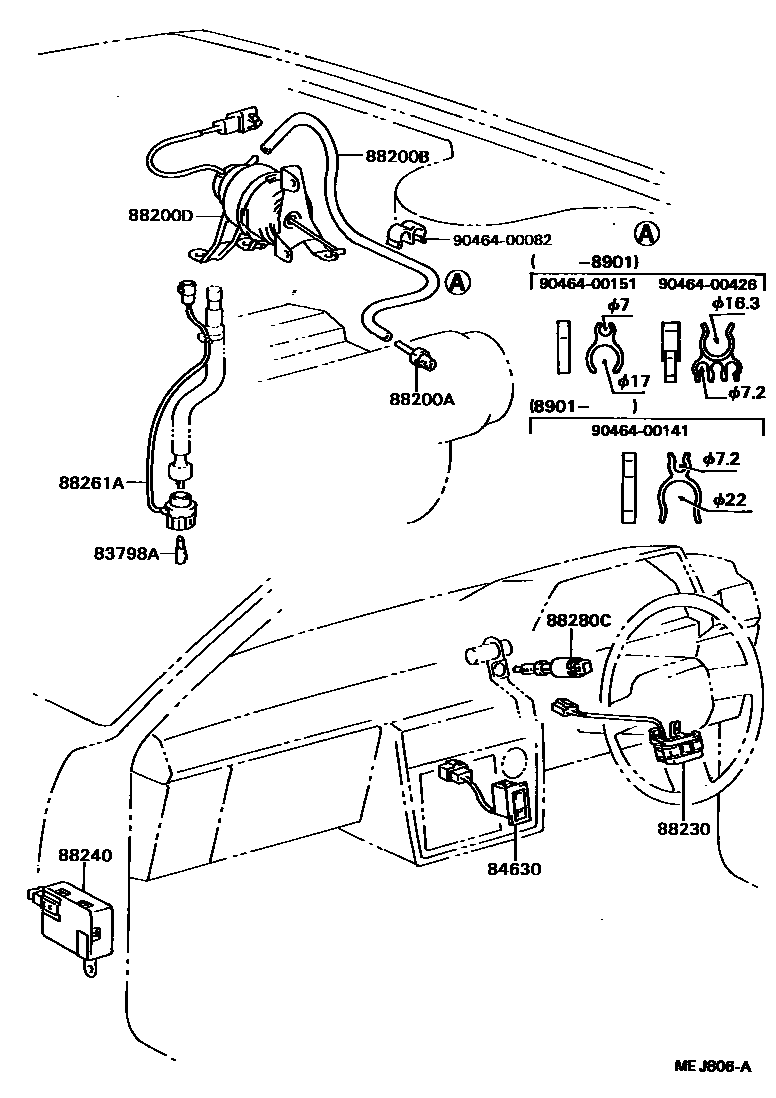

CRUISE CONTROL (AUTO DRIVE)

83798AKEY, SPEEDOMETER CABLE ADAPTER

main83798-20020iST162198708-198908

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-20060iST162198708-198908

88200AUNION OR WAY, CRUISE CONTROL VACUUM

main90404-51010iST162..GT198708-198908

88200BHOSE, CRUISE CONTROL VACUUM

main95411-10095iST162..GT198708-198908

main95411-19995iST162..VX198708-198908

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-20040iST162198708-198801

main88200-20041iST162198801-198908

88230SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL

main88230-20070-01iST162198708-198908

BLACK,TRIM2#

main88230-20070-04iST162198708-198908

DEEP BLUE,TRIM8#

88240COMPUTER ASSY, CRUISE CONTROL

main88240-20210iST162198708-198908

88261ASENSOR, SPEED CRUISE CONTROL

main88261-20060iST162198708-198908

88280CSWITCH ASSY, CLUTCH

main88280-35010iST162..5F198708-198908

9046400082

main90464-00082

9046400141

main90464-00141

9046400151

main90464-00151

9046400426

main90464-00426

13 parts on this diagram · 1 diagram in section
