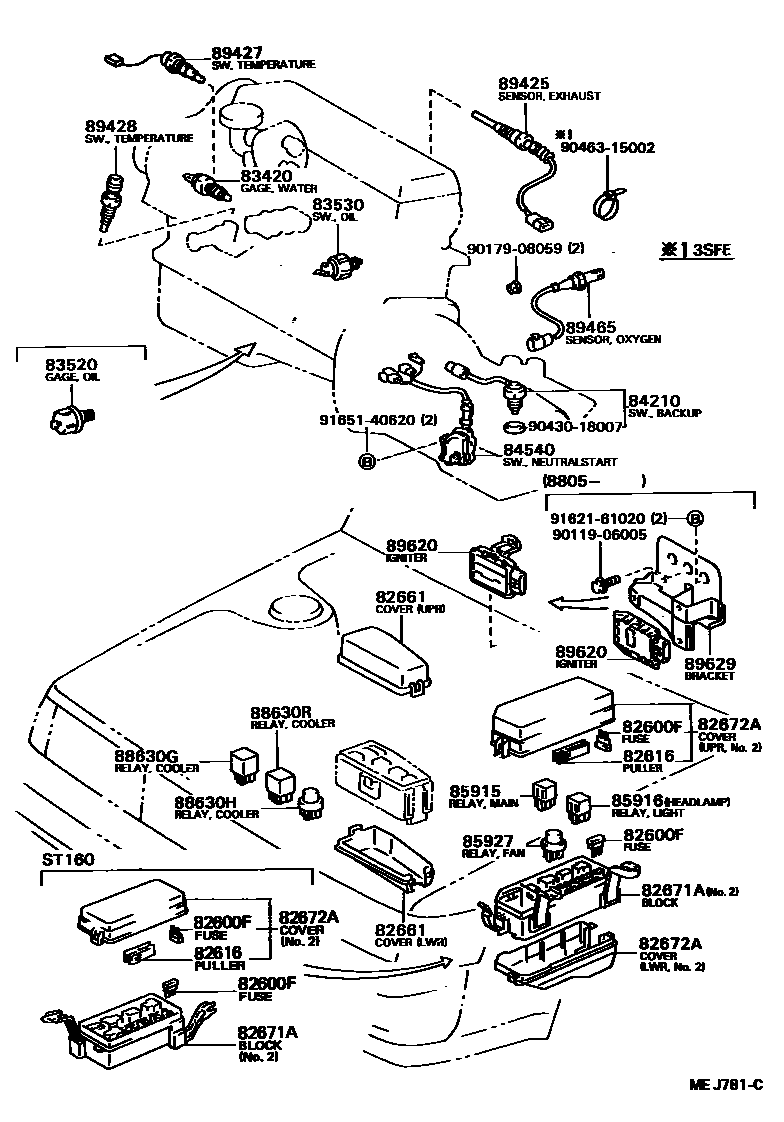

SWITCH & RELAY & COMPUTER
82600FFUSE, FUSE BLOCK
82616PULLER, FUSE
82671ABLOCK, JUNCTION
NO.1
NO.2
NO.3
NO.2
82672ACOVER, JUNCTION BLOCK
NO.3
NO.2
NO.2,LWR
NO.1
NO.2,UPR
NO.2,UPR
83420GAGE ASSY, WATER TEMPERATURE SENDER
83520GAGE ASSY,OIL PRESSURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
sub83530-60040
84210SWITCH ASSY, BACK-UP LAMP
sub84210-52050
85915RELAY, MAIN
85916RELAY, LIGHT CONTROL
DENSO,TAIL LAMP
HEADLAMP
85927RELAY, COOLING FAN
88630GRELAY ASSY, COOLER
88630HRELAY ASSY, COOLER
88630RRELAY ASSY, COOLER, NO.3
89425SENSOR, EXHAUST GAS TEMPERATURE
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
89629BRACKET, IGNITER ASSY
9011906005
main90119-06005
9017908059
main90179-08059
9043018007
main90430-18007
9046315002
main90463-15002
9162161020
main91621-61020
9165140620
main91651-40620
28 parts on this diagram · 6 diagrams in section
