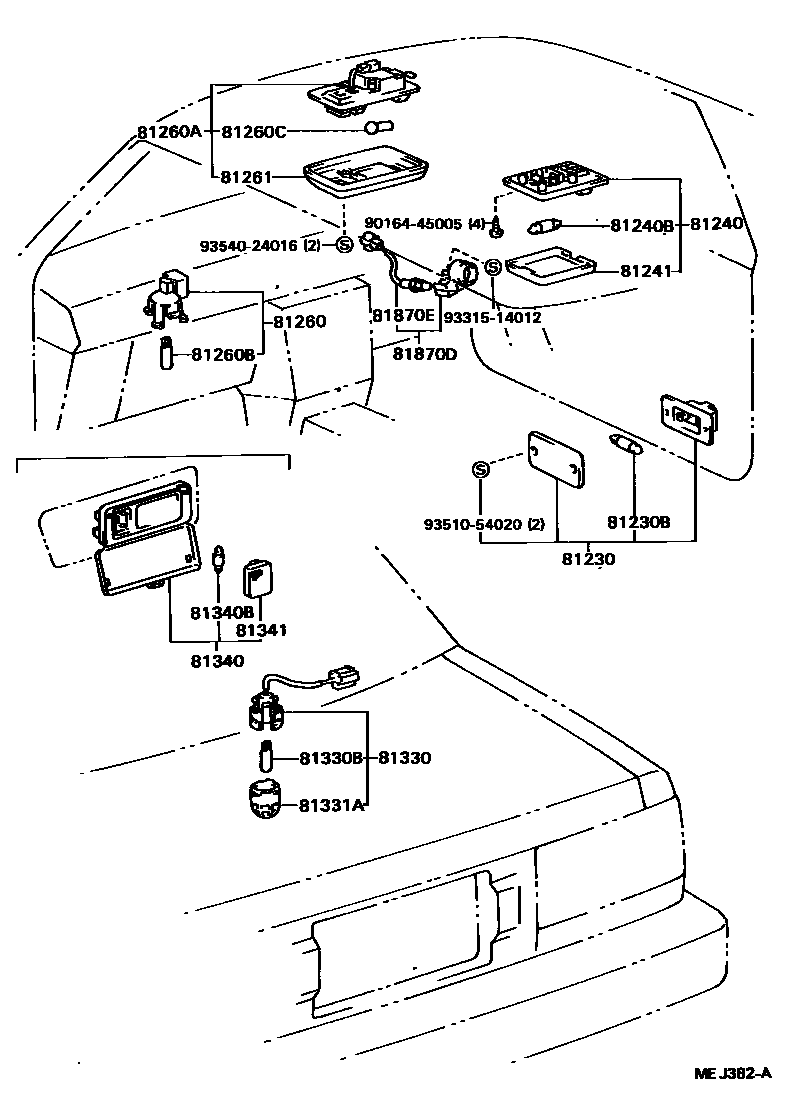

INTERIOR LAMP

81230LAMP ASSY, COURTESY

main81230-14040×2iST16#..EX,VX; ST162..GT198708-198908

81230BBULB(FOR COURTESY LAMP)

main99132-13050×2iST16#..EX,VX; ST162..GT198708-198908

81240LAMP ASSY, ROOM, NO.1

main81240-22081-04iST16#198708-198908

DARK BLUE,TRIM8#

main81240-22081-13iST16#198708-198908

SHADOW GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main99132-12100iST16#198708-198908

81241LENS, ROOM LAMP, NO.1

main81241-20060iST16#198708-198908

81260LAMP ASSY, GLOVE BOX

main81260-22070iST16#198708-198908

81260ALAMP ASSY, MAP

main81260-20090-03iST16#198708-198908

SHADOW GRAY,TRIM2#

main81260-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

81260BBULB(FOR GLOVE BOX)

main90981-11018iST16#198708-198908

81260CBULB(FOR MAP LAMP)

main90981-12014iST16#198708-198908

81261LENS AND COVER, MAP LAMP

main81261-20090-03iST16#198708-198908

SHADOW GRAY,TRIM2#

main81261-20090-04iST16#198708-198908

DEEP BLUE,TRIM8#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-22031iST16#..EX,VX; ST162..GT198708-198908

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iST16#..EX,VX; ST162..GT198708-198908

81331ACOVER, LUGGAGE COMPARTMENT LAMP

main81331-22030iST16#..EX,VX; ST162..GT198708-198908

81340LAMP ASSY, VANITY

main81340-20010-03iST162..VX198708-198908

GRAY,TRIM2#

main81340-20010-04iST162..VX198708-198908

DEEP BLUE,TRIM8#

81340BBULB (FOR VANITY LAMP)

main90981-14002iST162..GT198808-198908

81341LENS, VANITY LAMP

main81341-14020iST162..VX198708-198908

81870DLAMP ASSY, KEY CYLINDER

main81870-20011iST16#..EX,VX; ST162..GT198708-198908

81870EBULB, KEY CYLINDER LAMP

main90981-11018iST16#..EX,VX; ST162..GT198708-198908

9016445005

main90164-45005

9331514012

main93315-14012

9351054020

main93510-54020

9354024016

main93540-24016

22 parts on this diagram · 1 diagram in section
