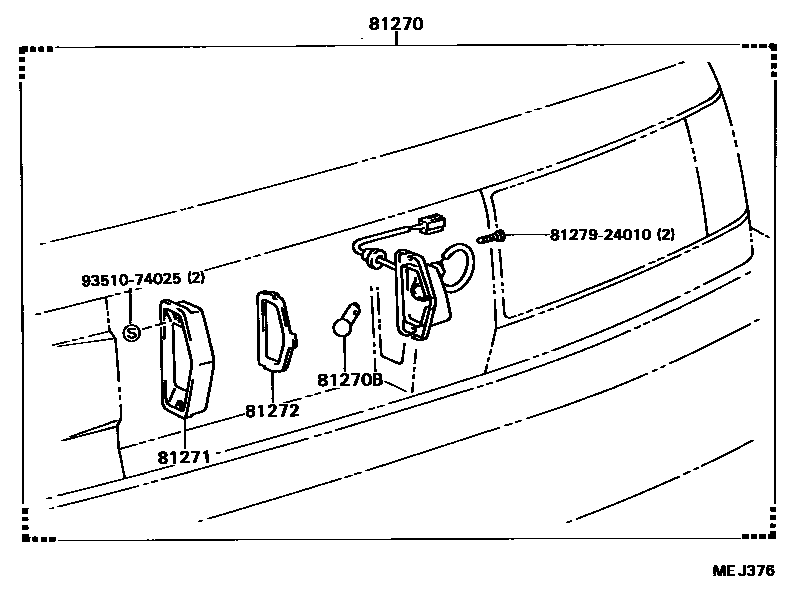

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-20370×2iST16#198708-198908

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iST16#198708-198908

81271LENS, LICENSE PLATE LAMP

main81271-30160×2iST16#198708-198908

81272GASKET, LICENSE PLATE LAMP LENS

main81272-20210×2iST16#198708-198908

8127924010WASHER, SIDE TURN SIGNAL LAMP

main81279-24010

9351074025

main93510-74025

6 parts on this diagram · 1 diagram in section
