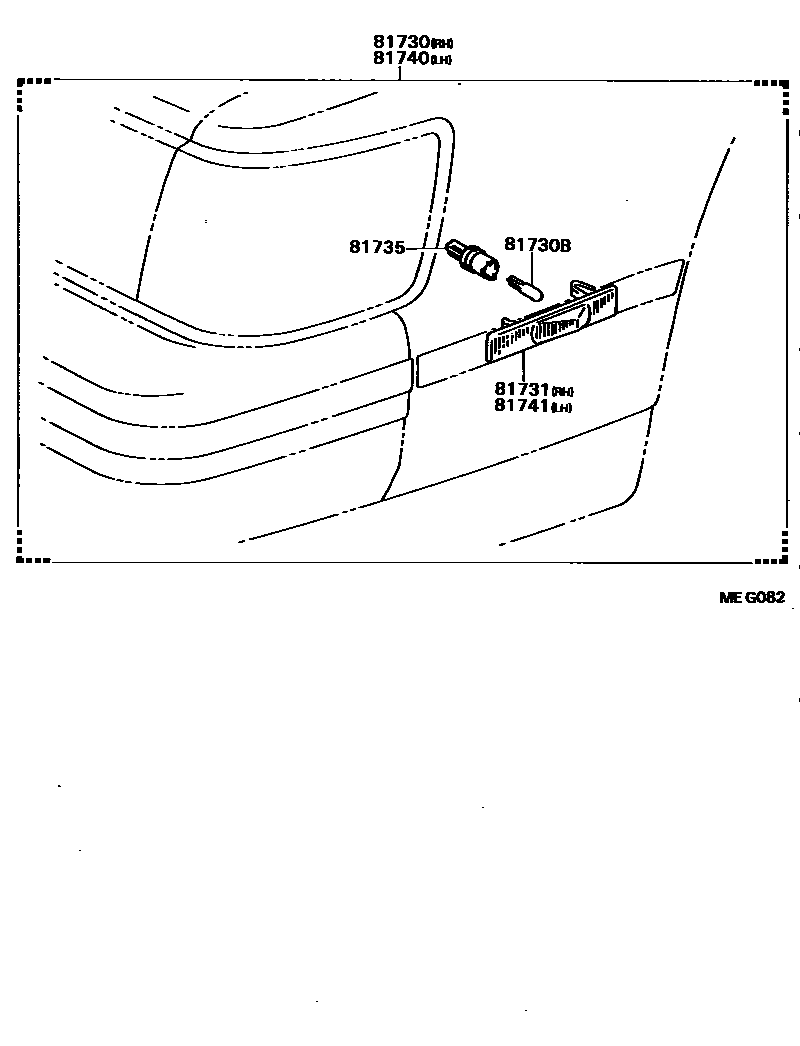

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-20131iST16#198708-198908

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-12050×2iST16#198708-198908

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-20131iST16#198708-198908

81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP

main81735-12180×2iST16#198708-198908

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-20131iST16#198708-198908

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-20131iST16#198708-198908

6 parts on this diagram · 1 diagram in section
