SEAT BELT & CHILD RESTRAINT SEAT

73021LEVER SUB-ASSY, SEAT BELT COMFORT, RH

main73021-20010iST16#198708-198803

main73021-20011iST16#198803-198908

73022LEVER SUB-ASSY, SEAT BELT COMFORT, LH

main73022-20010iST16#198708-198803

main73022-20011iST16#198803-198908

73178ACAP, SEAT BELT ANCHOR COVER

main73178-16010-11×2iST16#198708-198908

BLACK,TRIM2#

main73178-16010-34×2iST16#198708-198908

BLUE,TRIM8#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-20321-01iST16#198708-198812

BLACK,TRIM2#

main73210-20321-04iST16#198708-198812

DEEP BLUE,TRIM8#

main73210-20322-01iST16#198812-198908

BLACK,TRIM2#

main73210-20322-04iST16#198812-198908

DEEP BLUE,TRIM8#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-20211-01iST16#198708-198812

BLACK,TRIM2#

main73220-20211-04iST16#198708-198812

DEEP BLUE,TRIM8#

main73220-20212-01iST16#198812-198908

BLACK,TRIM2#

main73220-20212-04iST16#198812-198908

DEEP BLUE,TRIM8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-20390-01iST16#198708-198908

BLACK,TRIM2#

main73230-20390-04iST16#198708-198908

DEEP BLUE,TRIM8#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-20390-01iST16#198708-198908

BLACK,TRIM2#

main73230-20390-04iST16#198708-198908

DEEP BLUE,TRIM8#

73330CBELT ASSY, REAR SEAT LAP TYPE, CENTER RH

main73330-20220-01iST16#198708-198908

BLACK,TRIM2#

main73330-20220-04iST16#198708-198908

DEEP BLUE,TRIM8#

73340CBELT ASSY, REAR SEAT LAP TYPE, CENTER LH

main73340-20080-01iST16#198708-198908

BLACK,TRIM2#

main73340-20080-04iST16#198708-198908

DEEP BLUE,TRIM8#

73360BBELT ASSY, REAR SEAT, OUTER

main73360-20140-01×2iST16#198708-198908

BLACK,TRIM2#

main73360-20140-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

73380ABELT ASSY, REAR SEAT, INNER

main73380-20100-01×2iST16#198708-198908

BLACK,TRIM2#

main73380-20100-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

9018904022

main90189-04022

9046706064

main90467-06064

9165160616

main91651-60616

9352054014

main93520-54014

9356054016

main93560-54016

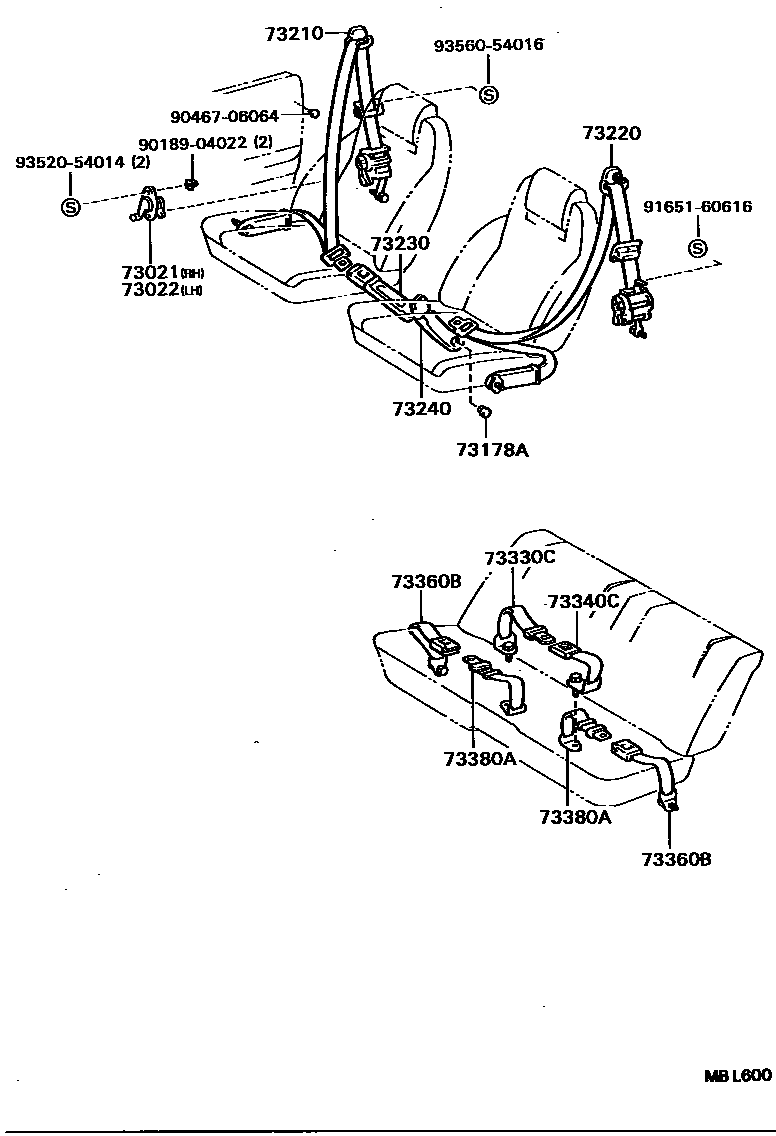

16 parts on this diagram · 1 diagram in section
