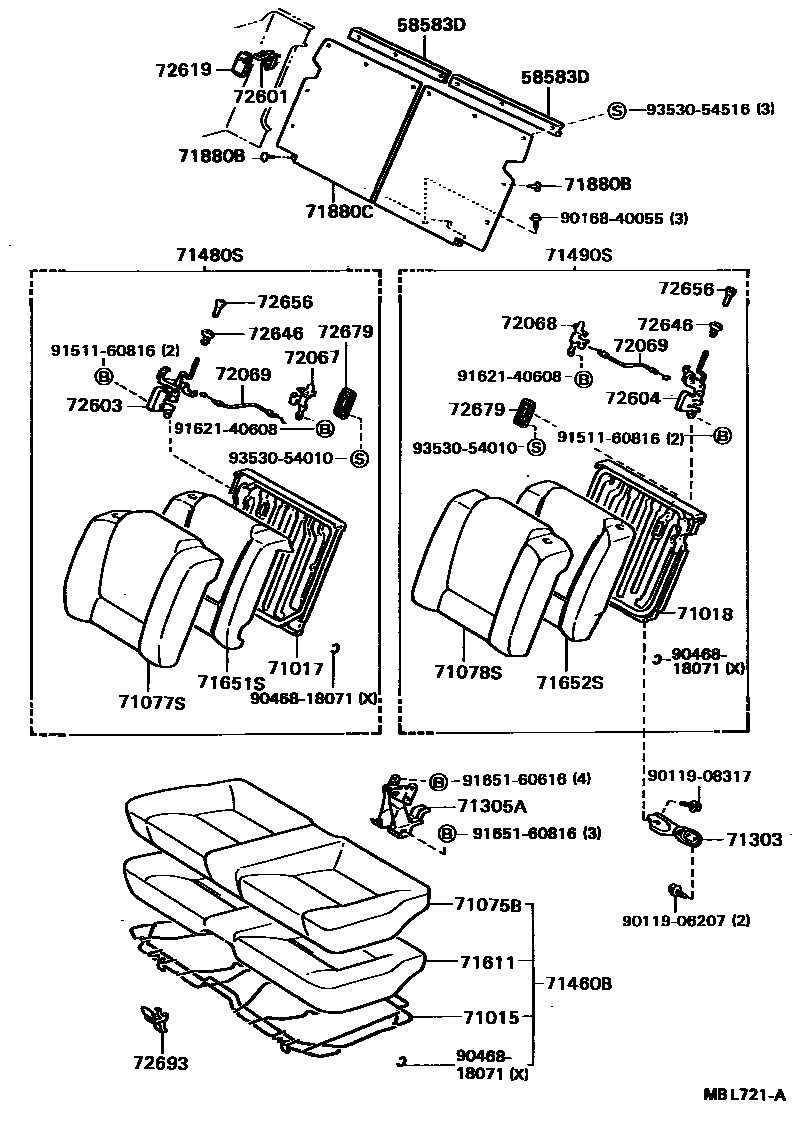

REAR SEAT & SEAT TRACK

58583DPLATE, REAR SEATBACK CARPET SUPPORT

main58583-20030-01×2iST16#198708-198908

BLACK,TRIM2#

main58583-20030-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

71015FRAME SUB-ASSY, REAR SEAT CUSHION

main71015-20190iST16#198708-198908

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-20240iST16#198708-198908

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-20050iST16#198708-198908

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-20351-03iST16#..EX,VX198708-198908

GRAY,TRIM2#

main71065-20351-04iST16#..EX,VX198708-198908

DEEP BLUE,TRIM8#

main71065-20361-03iST162..GT198708-198908

GRAY,TRIM2#

main71065-20361-04iST162..GT198708-198908

DEEP BLUE,TRIM8#

main71065-20541-01iST160,163..GX198708-198908

BLACK,TRIM2#

main71065-20541-04iST160,163..GX198708-198908

DEEP BLUE,TRIM8#

main71075-2B640-03iST162..VX198904-198908

EVENT,GRAY,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2B461-03iST16#..EX,VX198708-198908

GRAY,TRIM2#

main71077-2B461-04iST16#..EX,VX198708-198908

DEEP BLUE,TRIM8#

main71077-2B471-03iST162..GT198708-198908

GRAY,TRIM2#

main71077-2B471-04iST162..GT198708-198908

DEEP BLUE,TRIM8#

main71077-2B701-01iST160,163..GX198708-198908

BLACK,TRIM2#

main71077-2B701-04iST160,163..GX198708-198908

DEEP BLUE,TRIM8#

main71077-2B750-13iST162..VX198904-198908

EVENT,GRAY,TRIM2#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-20201-03iST16#..EX,VX198708-198908

GRAY,TRIM2#

main71078-20201-04iST16#..EX,VX198708-198908

DEEP BLUE,TRIM8#

main71078-20211-03iST162..GT198708-198908

GRAY,TRIM2#

main71078-20211-04iST162..GT198708-198908

DEEP BLUE,TRIM8#

main71078-20341-01iST160,163..GX198708-198908

BLACK,TRIM2#

main71078-20341-04iST160,163..GX198708-198908

DEEP BLUE,TRIM8#

main71078-20380-13iST162..VX198904-198908

EVENT,GRAY,TRIM2#

71303HINGE SUB-ASSY, REAR SEATBACK

main71303-16010×2iST16#198708-198908

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20060iST16#198708-198908

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71560-20341-03iST16#..EX,VX198708-198908

GRAY,TRIM2#

main71560-20341-04iST16#..EX,VX198708-198908

DEEP BLUE,TRIM8#

main71560-20351-03iST162..GT198708-198908

GRAY,TRIM2#

main71560-20351-04iST162..GT198708-198908

DEEP BLUE,TRIM8#

main71560-20381-01iST160,163..GX198708-198908

BLACK,TRIM2#

main71560-20381-04iST160,163..GX198708-198908

DEEP BLUE,TRIM8#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2B581-03iST16#..EX,VX198708-198908

GRAY,TRIM2#

main71480-2B581-04iST16#..EX,VX198708-198908

DEEP BLUE,TRIM8#

main71480-2B591-03iST162..GT198708-198908

GRAY,TRIM2#

main71480-2B591-04iST162..GT198708-198908

DEEP BLUE,TRIM8#

main71480-2B631-01iST160,163..GX198708-198908

BLACK,TRIM2#

main71480-2B631-04iST160,163..GX198708-198908

DEEP BLUE,TRIM8#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-20231-03iST16#..EX,VX198708-198908

GRAY,TRIM2#

main71490-20231-04iST16#..EX,VX198708-198908

DEEP BLUE,TRIM8#

main71490-20241-03iST162..GT198708-198908

GRAY,TRIM2#

main71490-20241-04iST162..GT198708-198908

DEEP BLUE,TRIM8#

main71490-20261-01iST160,163..GX198708-198908

BLACK,TRIM2#

main71490-20261-04iST160,163..GX198708-198908

DEEP BLUE,TRIM8#

71611PAD, REAR SEAT CUSHION

main71611-20340iST16#198708-198908

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-20400iST16#..EX,GX,VX198708-198908

main71651-20410iST162..GT198708-198908

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-20260iST16#..EX,GX,VX198708-198908

main71652-20270iST162..GT198708-198908

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-06016-11×12iST16#198708-198808

BLACK,TRIM2#

main90467-06016-30×12iST16#198708-198808

BLUE,TRIM8#

71880CCARPET ASSY, REAR SEATBACK BOARD

main71880-20060-01iST16#198708-198908

BLACK,TRIM2#

main71880-20060-04iST16#198708-198908

DEEP BLUE,TRIM8#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20010iST16#198708-198908

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20010iST16#198708-198908

72069CABLE SUB-ASSY, REAR SEATBACK LOCK CONTROL

main72069-20010×2iST16#198708-198908

72601STRIKER SUB-ASSY, REAR SEAT LOCK

main72610-20010×2iST16#198708-198908

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72603-20010iST16#198708-198908

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72604-20010iST16#198708-198908

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-20010-01×2iST16#198708-198808

BLACK,TRIM2#

main72615-20010-14×2iST16#198708-198808

BLUE,TRIM8#

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-01iST16#198708-198908

BLACK,TRIM2#

main72646-20020-04iST16#198708-198908

DEEP BLUE,TRIM8#

72656BUTTON, REAR SEATBACK STOP RELEASE

main72661-12010-01iST16#198708-198908

BLACK,TRIM2#

main72661-12010-14iST16#198708-198908

DEEP BLUE,TRIM8#

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-16010-01×2iST16#198708-198908

BLACK,TRIM2#

main72679-16010-04×2iST16#198708-198908

DEEP BLUE,TRIM8#

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20010×2iST16#198708-198908

9011906207

main90119-06207

9011908317

main90119-08317

9016840055

main90168-40055

9046818071

main90468-18071

9151160816

main91511-60816

9162140608

main91621-40608

9165160616

main91651-60616

9165160816

main91651-60816

9353054010

main93530-54010

9353054516

main93530-54516

38 parts on this diagram · 1 diagram in section
