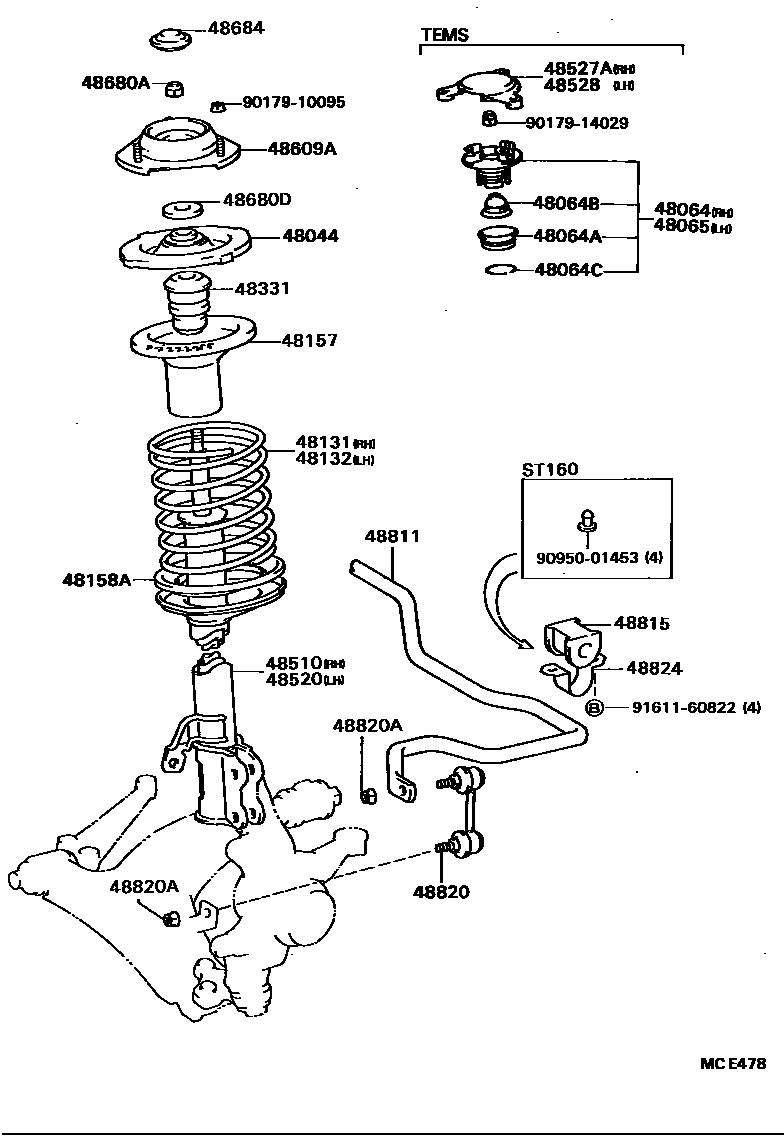

FRONT SPRING & SHOCK ABSORBER

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-32010iST16#198708-198908

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-20020iST162..GT198708-198908

sub48064-16010

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iST162..GT198708-198908

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iST162198708-198908

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iST162..GT198708-198908

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-20010iST162..GT198708-198908

48131SPRING, FRONT COIL, RH

main48131-2D310iST162..4FC..GT198708-198908

main48131-2D390iST163198805-198908

sub48131-1E780

main48131-2D460iST160..5F198708-198805

main48131-2D470iST160..4FC198708-198805

main48131-2D500iST162..5F..VX198708-198908

main48131-2D520iST162..5F..GT;ST162..4FC..VX198708-198908

main48131-2D740iST162..5F..VX198805-198908

main48131-2D760iST162..5F..GT198708-198908

main48131-2D790iST162..4FC..GT198708-198908

48132SPRING, FRONT COIL, LH

main48131-2D380iST163..5F198805-198908

main48131-2D430iST160..5F198708-198805

main48131-2D460iST160..4FC198708-198805

main48131-2D470iST162..5F..VX198708-198908

main48131-2D500iST162..5F..GT;ST162..4FC..VX198708-198908

main48131-2D520iST162..4FC..GT198708-198908

main48131-2D740iST162..5F..GT198708-198908

main48131-2D760iST162..4FC..GT198708-198908

main48131-2G480iST163..4FC198805-198908

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20040iST16#198708-198908

48158AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12020iST16#198708-198711

main48158-12030iST16#198711-198908

48331BUMPER, FRONT SPRING, NO.1

main48331-20040iST16#198708-198908

sub48331-12130

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20261iST160198708-198711

sub48510-20262

sub90561-15006

main48510-20262iST160,163198711-198908

sub48510-20392

main48510-20281iST162..VX198708-198711

sub48510-20282

sub90561-15006

main48510-20282iST162..VX198711-198908

sub48510-20262

main48510-20351iST162..GT198708-198711

sub48510-20352

sub90561-15006

main48510-20352iST162..GT198711-198908

sub48510-20392

main48510-20430iST162..GT198708-198711

sub48510-20431

sub90561-15006

main48510-20431iST162..GT198711-198908

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20251iST160198708-198711

sub48520-20252

sub90561-15006

main48520-20252iST160,163198711-198908

sub48520-20382

main48520-20271iST162..VX198708-198711

sub48520-20272

sub90561-15006

main48520-20272iST162..VX198711-198908

sub48520-20252

main48520-20341iST162..GT198708-198711

sub48520-20342

sub90561-15006

main48520-20342iST162..GT198711-198908

sub48520-20382

main48520-20430iST162..GT198708-198711

sub48520-20431

sub90561-15006

main48520-20431iST162..GT198711-198908

48527ACAP, FRONT SHOCK ABSORBER, RH

main48527-20010iST162198708-198908

48528CAP, FRONT SHOCK ABSORBER, LH

main48528-20010iST162..GT198708-198908

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-20090iST16#198708-198908

main48609-20110iST162198708-198908

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iST162..GT198708-198908

main94182-11400iST16#198708-198908

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iST16#198708-198908

48684COVER, BEARING DUST

main48684-32010iST16#198708-198908

48811BAR, STABILIZER, FRONT

main48811-20290iST162198708-198908

main48811-20320iST163198805-198908

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iST163198805-198908

main48815-24020iST162198708-198908

48820LINK ASSY, FRONT STABILIZER

main48820-20010iST162,163198708-198908

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iST162,163198708-198908

48824BRACKET, STABILIZER, FRONT

main48824-20040iST162,163198708-198908

9017910095

main90179-10095

9017914029

main90179-14029

9095001453

main90950-01453

9161160822

main91611-60822

28 parts on this diagram · 1 diagram in section
