IGNITION COIL & SPARK PLUG / GLOW PLUG

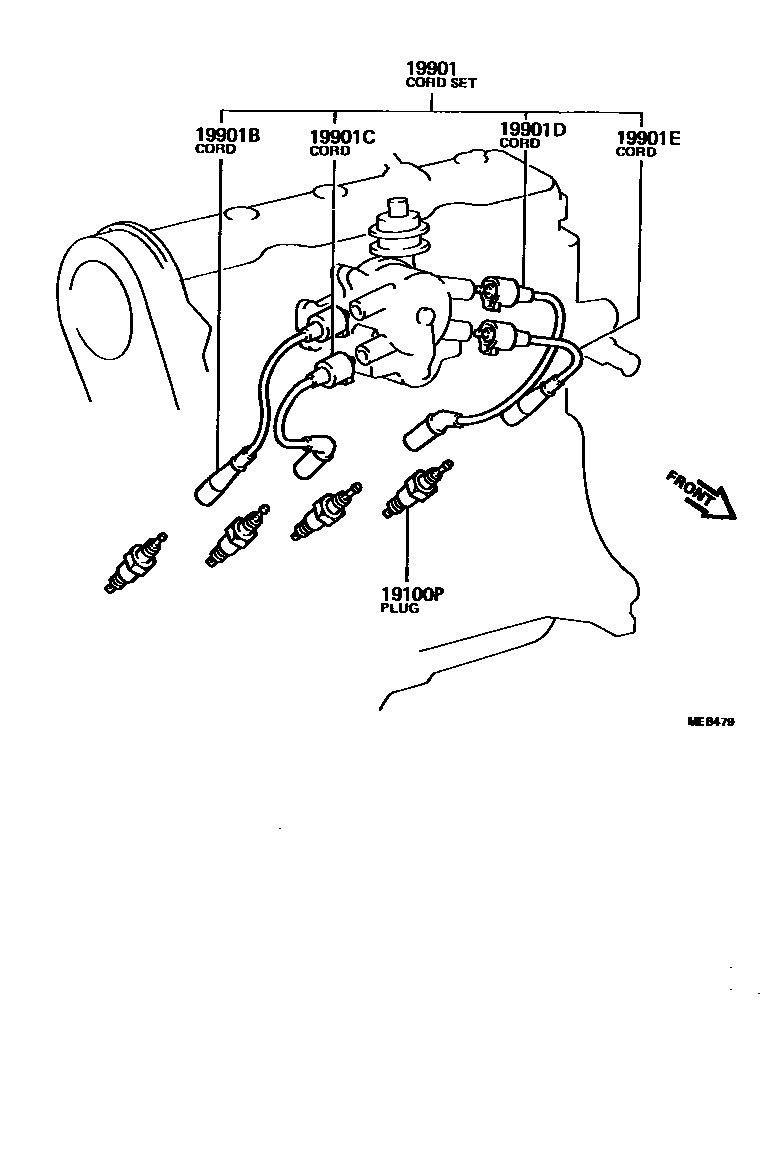

Parts diagram
19100PPLUG, SPARK
main90919-01113i198708-198805
main90919-01114i198708-198805
main90919-01121i198708-198908
main90919-01122i198708-198908
main90919-01129i198708-198908
main90919-01170i198805-198908
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21370i198708-198908
sub90919-21372
main90919-21515i198805-198908
main90919-21516i198805-198908
main90919-22113i198708-198805
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12394i198708-198805
main90919-12546i198708-198811
sub90919-12994
main90919-12799i198805-198908
main90919-12820i198805-198908
main90919-12994i198811-198908
sub90919-15010
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90919-12392i198708-198805
main90919-12547i198708-198811
sub90919-12995
main90919-12800i198805-198908
main90919-12819i198805-198908
main90919-12995i198811-198908
sub90919-15011
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12392i198708-198805
main90919-12548i198708-198811
sub90919-12996
main90919-12801i198805-198908
main90919-12818i198805-198908
main90919-12996i198811-198908
sub90919-15012
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12394i198708-198805
main90919-12549i198708-198811
sub90919-12997
main90919-12802i198805-198908
main90919-12817i198805-198908
main90919-12997i198811-198908
sub90919-15013

6 parts on this diagram · 3 diagrams in section
