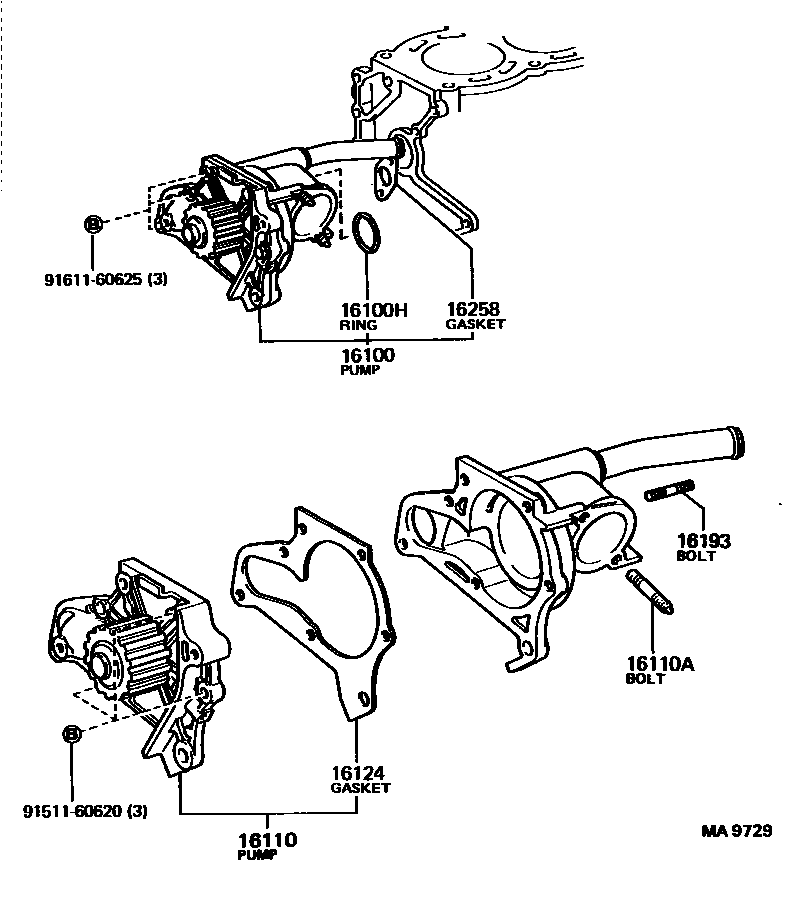

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-69076i1SILU..ST160198708-198908

main16100-79075i3SFE,4SFI..ST162,163198708-198908

main16100-79095i3SGELU..ST162198708-198908

*54

16100HRING, O(FOR WATER PUMP)

main90301-37005i3SGELU..ST162198708-198808

*54

main96711-24037i1SILU,3S#,4SFI..ST16#198708-198808

*53

16110PUMP ASSY, WATER, W/O COUPLING

main16110-69036i1SILU..ST160198708-198908

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-63010×2i1SILU,3S#,4SFI..ST16#198708-198908

16124GASKET, WATER PUMP COVER

main16124-63010i1SILU..ST160198708-198805

main16124-74010i3S#,4SFI..ST162,163198708-198908

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i1SILU,3S#,4SFI..ST16#198708-198908

16258GASKET(FOR HEATER RETURN)

main16258-15011i1SILU,3S#,4SFI..ST16#198708-198907

main16258-74020i3S#,4SFI..ST16#198907-198908

9151160620

main91511-60620

9161160625

main91611-60625

9 parts on this diagram · 3 diagrams in section
