HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

1605

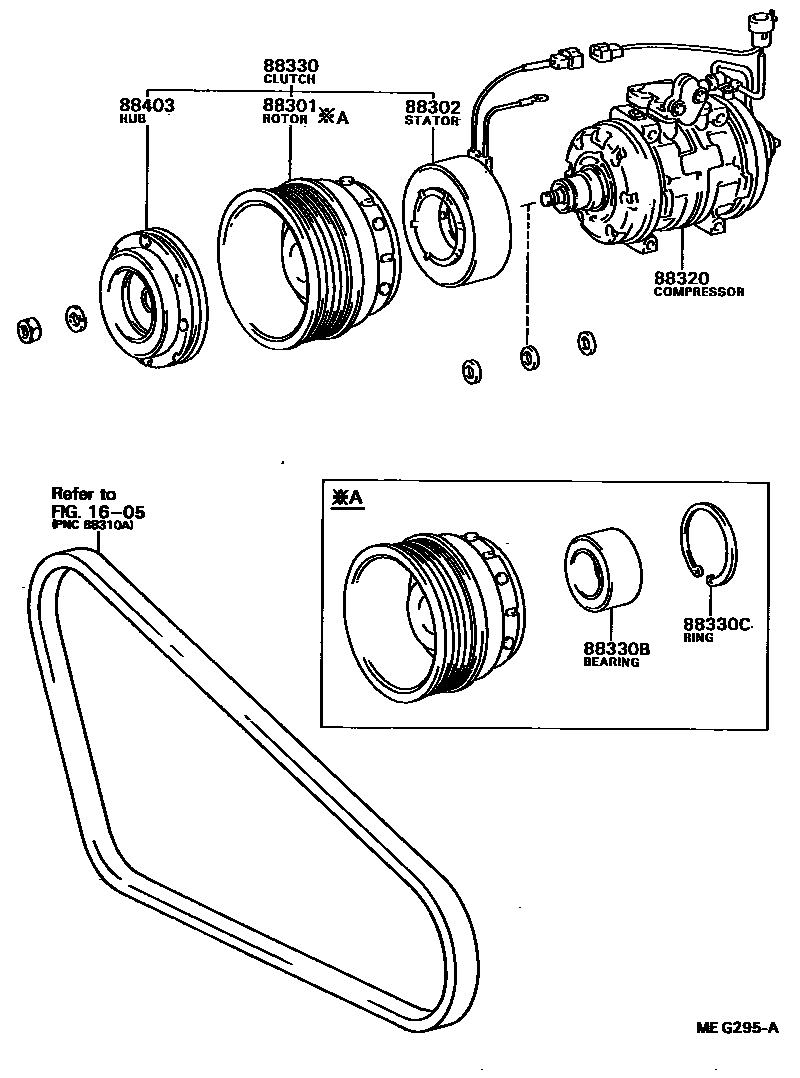

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-32010iST16#198508-198708

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32010iST16#198508-198708

88320COMPRESSOR ASSY, COOLER

main88320-20490iAT160198508-198708

main88320-20500iST16#198508-198708

88330CLUTCH ASSY, MAGNET

main88410-12190iAT160198508-198708

main88410-32010iST16#198508-198708

88330BBEARING, MAGNET CLUTCH

main90099-10133iST16#198508-198708

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07118iST16#198508-198708

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iST16#198508-198708

sub88403-12030

8 parts on this diagram · 2 diagrams in section
