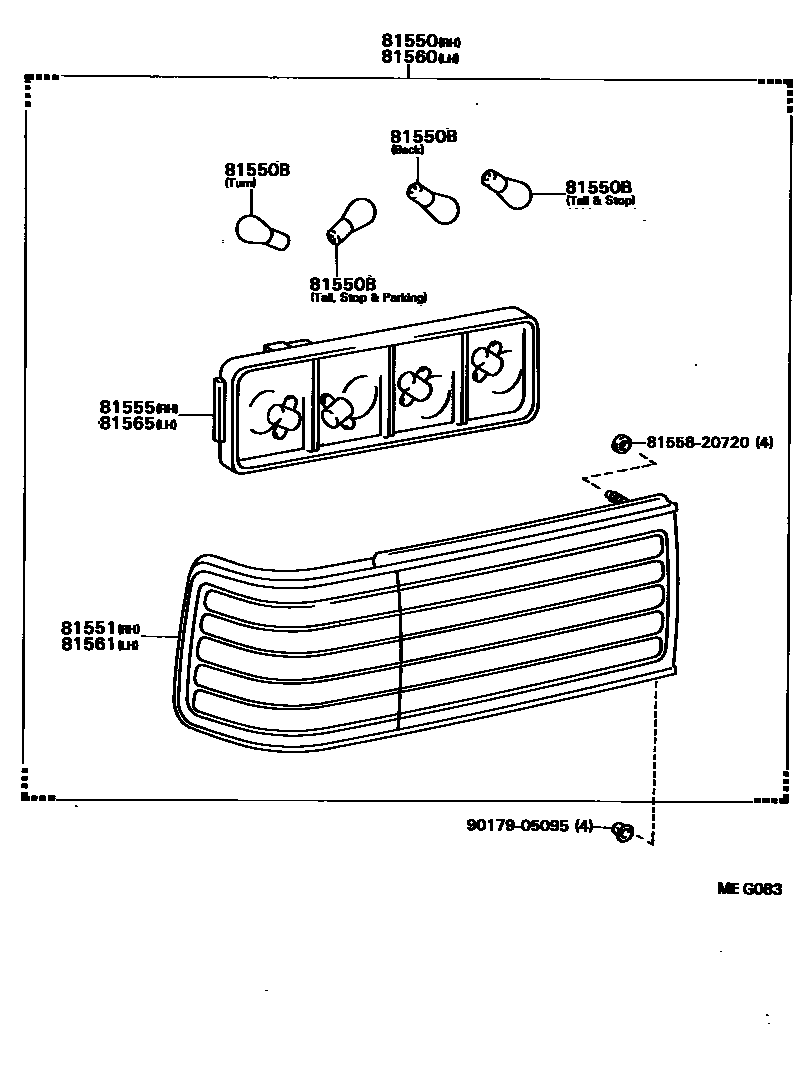

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20720iAT160,ST16#198508-198708

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11230×4iAT160,ST16#198508-198708

main99132-21210×4iAT160,ST16#198508-198708

81551LENS, REAR COMBINATION LAMP, RH

main81551-20720iAT160,ST16#198508-198708

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20720iAT160,ST16#198508-198708

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20660iAT160,ST16#198508-198708

81561LENS, REAR COMBINATION LAMP, LH

main81561-20660iAT160,ST16#198508-198708

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-20660iAT160,ST16#198508-198708

8155820720SHADE, REAR COMBINATION LAMP, NO.1 RH

main81558-20720

9017905095

main90179-05095

9 parts on this diagram · 1 diagram in section
