LOCK CYLINDER SET

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-20160iAT160,ST16#198508-198708

sub69051-20170

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-20160iAT160,ST16#198508-198708

sub69052-20170

69061CYLINDER & KEY SET, LUGGAGE LOCK

main69055-20160iAT160,ST16#198508-198708

sub69055-20210

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-20060iAT160,ST16#198508-198708

69064CYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-20110iAT160,ST16#198508-198708

W/O *EL

sub69057-20120

main69057-20120iAT160,ST16#..EXS,GT198508-198708

W/*EL

sub69057-32121

69068COVER SUB-ASSY, KEY

main69555-20010iAT160,ST16#198508-198708

69388SNAP, ROD(FOR DOOR LOCK)

main69759-30040iAT160,ST16#198508-198708

RH

main69759-30050iAT160,ST16#198508-198708

LH

69503CYLINDER SET, LOCK

main69005-20400iAT160,ST16#..EXS,GT198508-198708

W/*EL

main69005-20420iAT160,ST16#198508-198708

W/O *EL

69503AKEY, BLANK

main90999-00085iAT160,ST16#198508-198708

main90999-00094iAT160,ST16#198508-198708

main90999-00106iAT160,ST16#198508-198708

sub90999-00212

69561RETAINER, LUGGAGE COMPARTMENT OR BACK DOOR LOCK CYLINDER

main69561-20070iAT160,ST16#198508-198708

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-20010iAT160,ST16#198508-198708

9015140005

main90151-40005

9165140612

main91651-40612

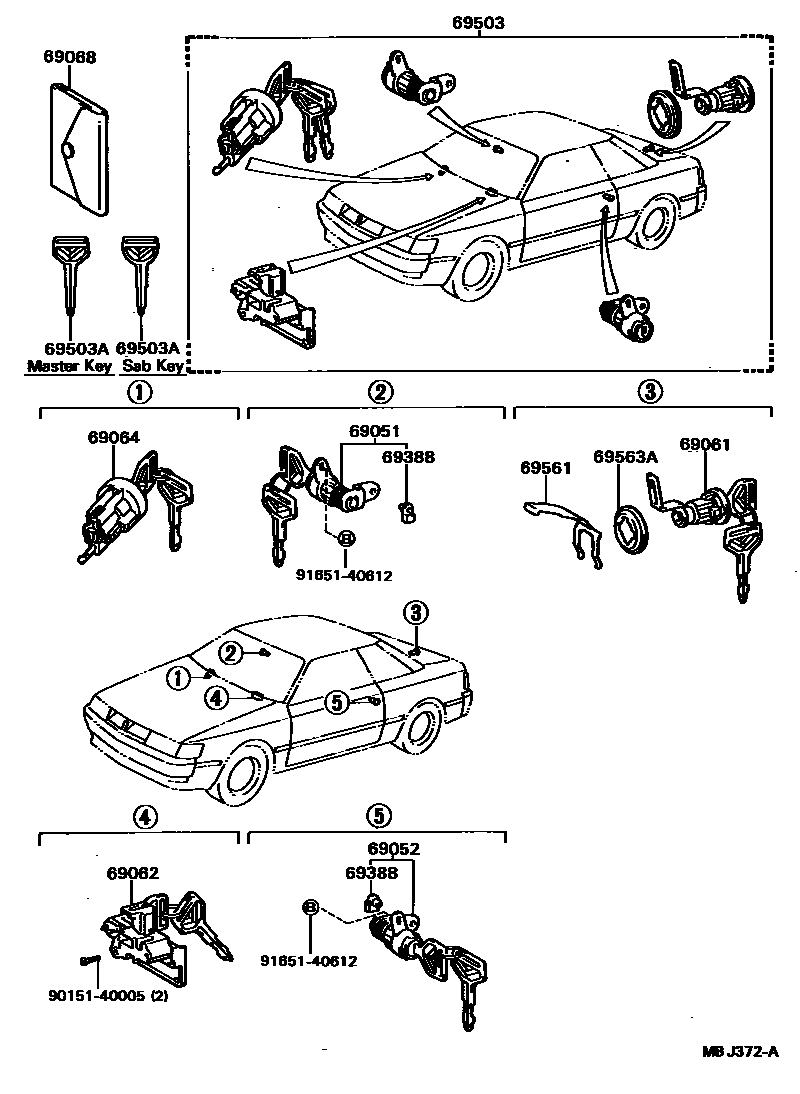

13 parts on this diagram · 1 diagram in section
