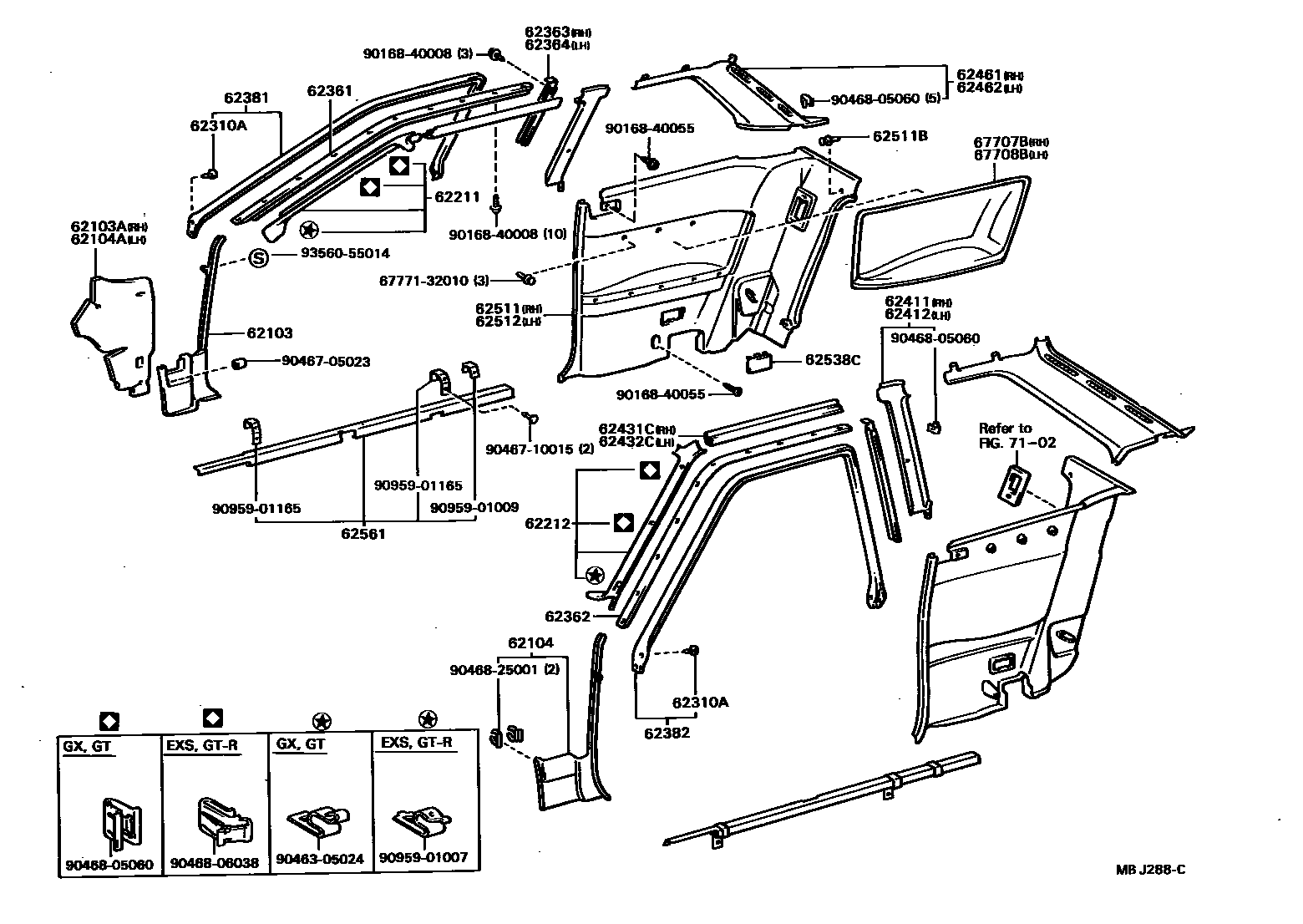

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-20150-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62101-20150

main62101-20150-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub62101-20150

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-20080iAT160,ST16#198508-198708

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-20110-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62102-20110-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-20080iAT160,ST16#198508-198708

62211GARNISH, FRONT PILLAR, RH

main62210-20020-03iST160..EXS198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62210-20020-03iST160..EXS198508-198708

GT-R,GRAY,SHADOW GRAY,TRIM1#

main62210-20020-04iST160..EXS198508-198708

BLUE,DEEP BLUE,TRIM8#

main62210-20020-04iST160..EXS198508-198708

GT-R,BLUE,DEEP BLUE,TRIM8#

main62211-20140-03iAT160,ST16#..GT,GX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62211-20140-04iAT160,ST16#..GT,GX198508-198708

BLUE,DEEP BLUE,TRIM8#

62212GARNISH, FRONT PILLAR, LH

main62212-20140-03iAT160,ST16#..GT,GX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62212-20140-04iAT160,ST16#..GT,GX198508-198708

BLUE,DEEP BLUE,TRIM8#

main62220-20020-03iST160..EXS198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62220-20020-03iST160..EXS198508-198708

GT-R,GRAY,SHADOW GRAY,TRIM1#

main62220-20020-04iST160..EXS198508-198708

BLUE,DEEP BLUE,TRIM8#

main62220-20020-04iST160..EXS198508-198708

GT-R,BLUE,DEEP BLUE,TRIM8#

62310ACLIP, ROOF SIDE RAIL WEATHERSTRIP

main67869-30020iAT160,ST16#198508-198708

62361RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT RH

main62361-20030iAT160,ST16#198508-198708

62362RETAINER, ROOF SIDE RAIL WEATHERSTRIP, FRONT LH

main62362-20030iAT160,ST16#198508-198708

62363RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR RH

main62371-20040iAT160,ST16#198508-198708

62364RETAINER, ROOF SIDE RAIL WEATHERSTRIP, REAR LH

main62372-20030iAT160,ST16#198508-198708

62381WEATHERSTRIP, ROOF SIDE RAIL, FRONT RH

main62381-20040iAT160,ST16#198508-198708

62382WEATHERSTRIP, ROOF SIDE RAIL, FRONT LH

main62382-20040iAT160,ST16#198508-198708

62411GARNISH, CENTER PILLAR, RH

main62411-20230-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62411-20230

main62411-20230-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub62411-20230

62412GARNISH, CENTER PILLAR, LH

main62412-20230-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62412-20230

main62412-20230-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub62412-20230

62431CGARNISH, ROOF SIDE RAIL, FRONT RH

main62431-20030-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62431-20030

main62431-20030-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub62431-20030

62432CGARNISH, ROOF SIDE RAIL, FRONT LH

main62431-20030-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62431-20030

main62431-20030-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub62431-20030

62461GARNISH, ROOF SIDE TRIM, RH

main62471-20210-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62471-20210-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

62462GARNISH, ROOF SIDE TRIM, LH

main62472-20230-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62472-20230-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

62511BOARD, QUARTER INSIDE TRIM, RH

main62511-20100-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62511-20100-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)

main90467-06016-20iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub90467-06016

sub90467-07049

main90467-06016-33iAT160,ST16#198508-198708

GRAY,GRAY,TRIM1#

sub90467-06016

sub90467-07049

62512BOARD, QUARTER INSIDE TRIM, LH

main62512-20100-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

main62512-20100-04iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

62538CCOVER, QUARTER TRIM, HOLE

main62538-14010-03iAT160,ST16#198508-198708

GRAY,SHADOW GRAY,TRIM1#

sub62538-14010

main62538-14010-14iAT160,ST16#198508-198708

BLUE,DEEP BLUE,TRIM8#

sub62538-14010

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-20060iAT160,ST16#198508-198708

RH

main62562-20040iAT160,ST16#198508-198708

LH

67707BORNAMENT SUB-ASSY, QUARTER TRIM, RH

main67707-20080-03iST160..GX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main67707-20080-04iST160..GX198508-198708

BLUE,DEEP BLUE,TRIM8#

main67707-20090-03iST160..EXS198508-198708

GRAY,SHADOW GRAY,TRIM1#

main67707-20090-04iST160..EXS198508-198708

BLUE,DEEP BLUE,TRIM8#

main67707-20100-03iAT160,ST162198508-198708

GRAY,GRAY,TRIM1#

main67707-20100-04iAT160,ST162198508-198708

BLUE,BLUE,TRIM8#

67708BORNAMENT SUB-ASSY, QUARTER TRIM, LH

main67708-20080-03iST160..GX198508-198708

GRAY,SHADOW GRAY,TRIM1#

main67708-20080-04iST160..GX198508-198708

BLUE,DEEP BLUE,TRIM8#

main67708-20090-03iST160..EXS198508-198708

GRAY,SHADOW GRAY,TRIM1#

main67708-20090-04iST160..EXS198508-198708

BLUE,DEEP BLUE,TRIM8#

main67708-20100-03iAT160,ST162198508-198708

GRAY,GRAY,TRIM1#

main67708-20100-04iAT160,ST162198508-198708

BLUE,BLUE,TRIM8#

7102

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9016840008

main90168-40008

9016840055

main90168-40055

9046305024

main90463-05024

9046705023

main90467-05023

9046710015

main90467-10015

9046805060

main90468-05060

9046806038

main90468-06038

9046825001

main90468-25001

9095901007

main90959-01007

9095901009

main90959-01009

9095901165

main90959-01165

9356055014

main93560-55014

40 parts on this diagram · 1 diagram in section
