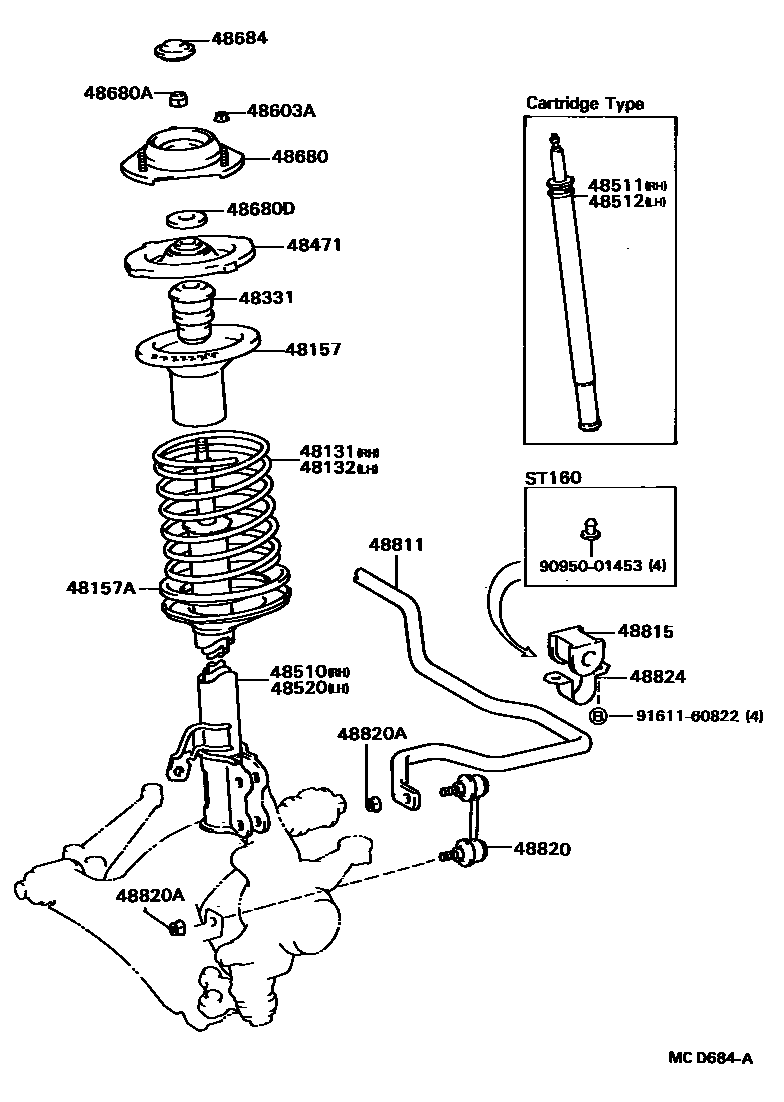

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-2D200iAT160..5F198508-198708

main48131-2D220iAT160..4FC198508-198708

sub48131-1K230

main48131-2D310iST162..4FC198508-198708

main48131-2D460iST160..5F198508-198708

main48131-2D470iST160..4FC198508-198708

main48131-2D520iST162..5F198508-198708

48132SPRING, FRONT COIL, LH

main48131-2D200iAT160..4FC198508-198708

main48131-2D360iST160..5F198508-198708

main48131-2D380iST160..4FC198508-198708

main48131-2D500iST162..5F198508-198708

main48131-2D520iST162..4FC198508-198708

main48131-2D650iAT160..5F198508-198708

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-20040iAT160,ST16#198508-198708

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-12020iAT160,ST16#198508-198708

48331BUMPER, FRONT SPRING, NO.1

main48331-20040iAT160,ST16#198508-198708

sub48331-12130

48471SEAT, FRONT SPRING, UPPER

main48044-32010iAT160,ST16#198508-198708

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-20260iST160198508-198708

sub48510-20261

main48510-20350iAT160,ST162198508-198708

sub48510-20351

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-20150iST160198508-198708

main48511-20170iAT160,ST162198508-198708

sub48511-20150

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-20150iST160198508-198708

main48511-20170iAT160,ST162198508-198708

sub48511-20150

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-20250iST160198508-198708

main48520-20340iAT160,ST162198508-198708

sub48520-20341

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10054iAT160,ST16#198508-198708

48680SUPPORT ASSY, FRONT SUSPENSION

main48609-20090iAT160,ST16#198508-198708

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main94182-11400iAT160,ST16#198508-198708

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iAT160,ST16#198508-198708

48684COVER, BEARING DUST

main48684-32010iAT160,ST16#198508-198708

48811BAR, STABILIZER, FRONT

main48811-20290iST162198508-198708

main48811-20320iAT160198508-198708

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160iAT160198508-198708

main48815-24020iST162198508-198708

48820LINK ASSY, FRONT STABILIZER

main48820-20010iAT160,ST162198508-198708

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-10054iAT160,ST162198508-198708

48824BRACKET, STABILIZER, FRONT

main48824-20040iAT160,ST162198508-198708

9095001453

main90950-01453

9161160822

main91611-60822

22 parts on this diagram · 1 diagram in section
