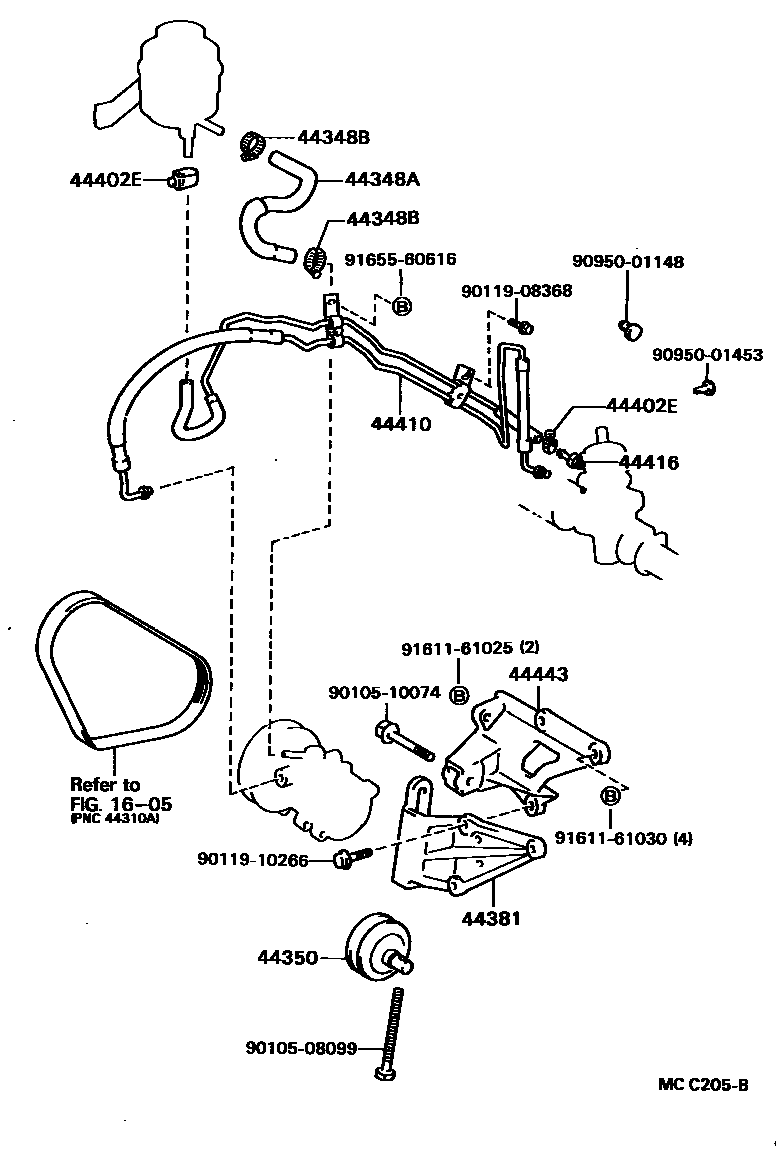

POWER STEERING TUBE

0001 1 0002 1

1605V-BELT

→ Go to FIG 16-05

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-20090iAT160198508-198708

main44348-20100iST16#198508-198708

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90460-26001×2iAT160,ST16#198508-198704

main90467-21005×2iAT160,ST16#198704-198708

44350PULLEY ASSY, POWER STEERING IDLE

main44350-12060iAT160198508-198708

44381BRACKET, POWER STEERING IDLE PULLEY

main44381-12030iAT160198508-198708

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-20100iST16#198508-198708

44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE

main90460-01001iAT160,ST16#198508-198605

GEAR SIDE

main90467-16008iAT160,ST16#198508-198605

RESERVOIR SIDE

44410TUBE ASSY, PRESSURE FEED

main44410-20230iAT160198508-198708

main44410-20250iST16#198508-198708

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-20110iAT160,ST16#198508-198708

44443BRACKET, PUMP

main44443-12060iAT160198508-198708

main44443-20050iST162198508-198708

main44443-20060iST160198508-198708

9010508099

main90105-08099

9010510074

main90105-10074

9011908368

main90119-08368

9011910266

main90119-10266

9095001148

main90950-01148

9095001453

main90950-01453

9161161025

main91611-61025

9161161030

main91611-61030

9165560616

main91655-60616

19 parts on this diagram · 2 diagrams in section
