TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

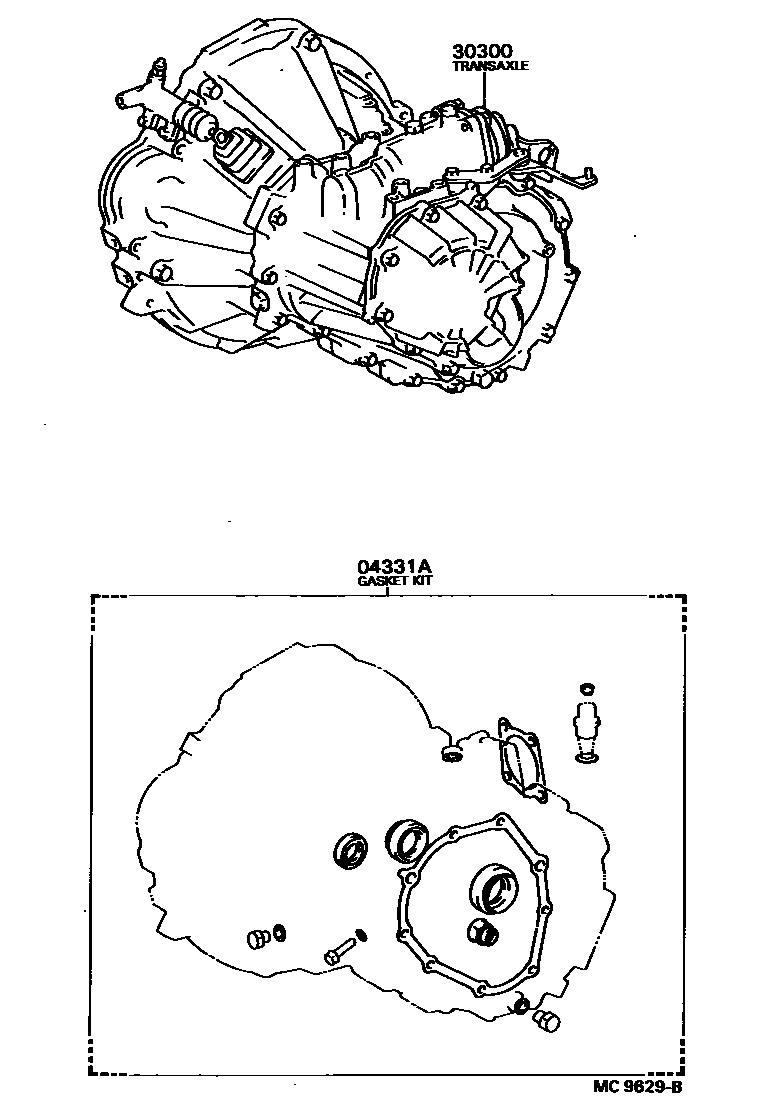

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-12080i198508-198708

main04331-32010i198508-198708

30300TRANSAXLE ASSY, MANUAL

main30300-12010i198508-198607

main30300-12270i198508-198704

main30300-12272i198704-198708

main30300-12330i198607-198708

main30300-20050i198508-198607

main30300-20300i198607-198708

2 parts on this diagram · 2 diagrams in section
