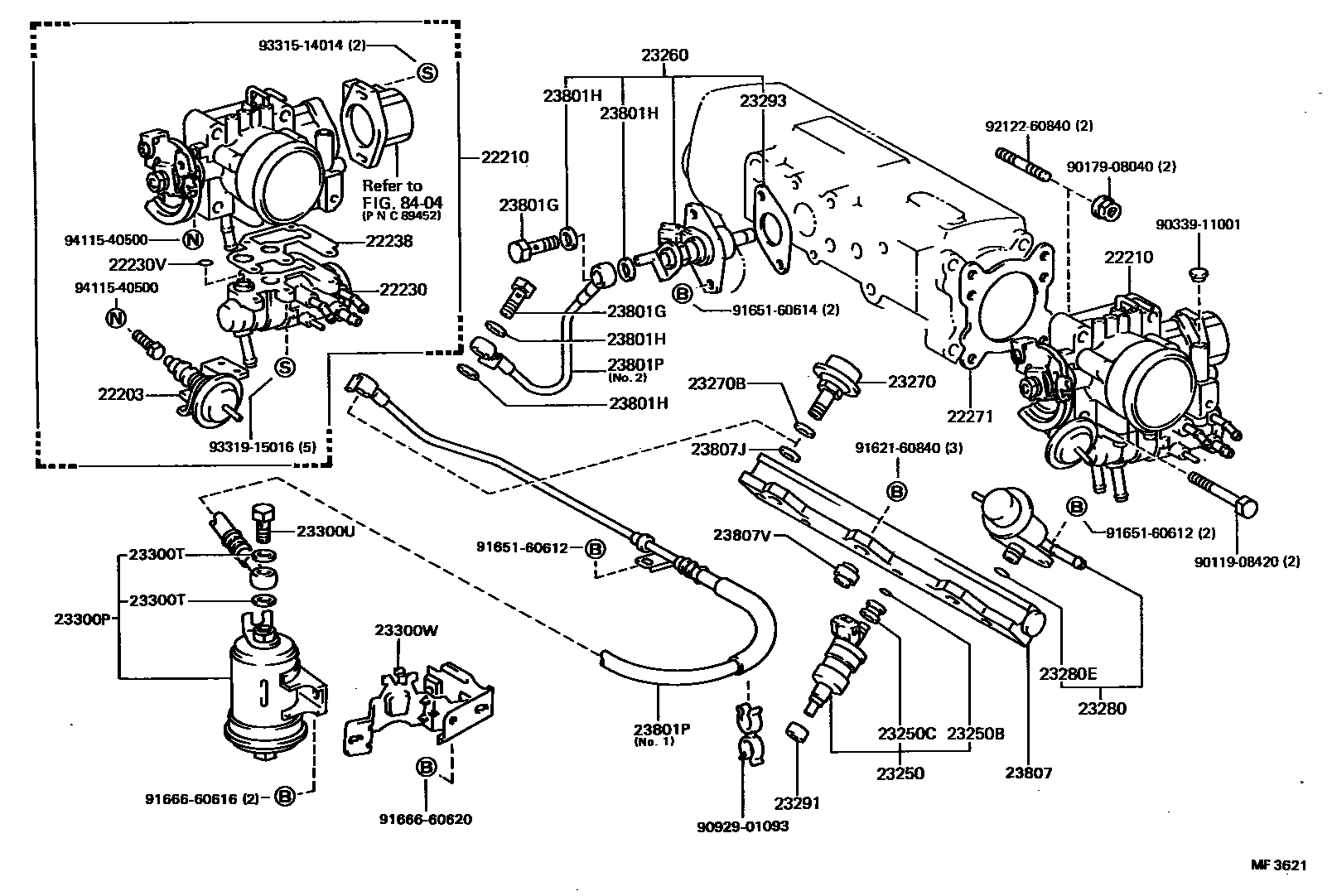

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22230VALVE ASSY, AUXILIARY AIR
22230VRING, O(FOR AUXILIARY AIR VALVE)
23250BRING, O(FOR FUEL INJECTOR)
NO.1
NO.2
23250CGROMMET(FOR FUEL INJECTOR)
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
sub23293-42010
23300PFILTER, FUEL(FOR EFI)
sub23300-79105
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300WBRACKET, FUEL FILTER
23801HGASKET(FOR FUEL PIPE)
*54
23801PPIPE SUB-ASSY, FUEL, NO.1
NO.2
NO.1
23807JGASKET, PIPE FUEL DELIVARY INLET
8404
9011908420
main90119-08420
9017908040
main90179-08040
9033911001
main90339-11001
9092901093
main90929-01093
9162160840
main91621-60840
9165160612
main91651-60612
9165160614
main91651-60614
9166660616
main91666-60616
9166660620
main91666-60620
9212260840
main92122-60840
9331514014
main93315-14014
9331915016
main93319-15016
9411540500
main94115-40500
40 parts on this diagram · 5 diagrams in section
