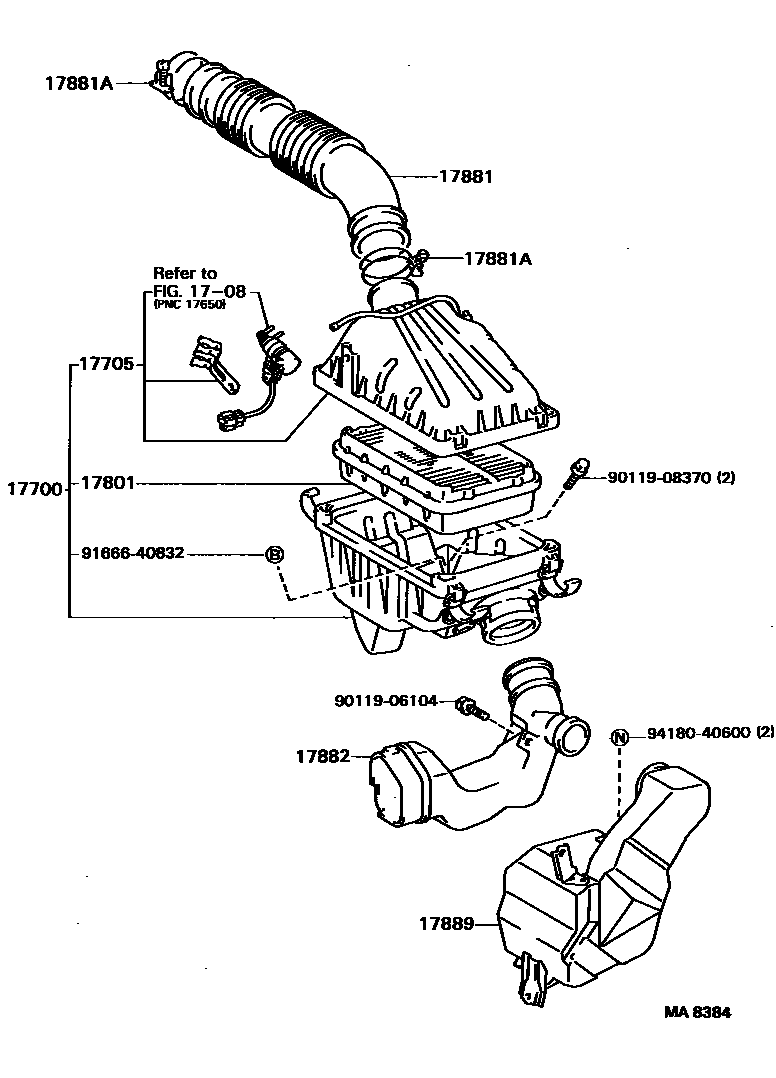

AIR CLEANER

0001 1 0002 1 0003 1

1708

17700CLEANER ASSY, AIR

main17700-16330i4AGELU..AT160198508-198708

main17700-63100i1SILU..ST160198508-198708

sub17700-74150

main17700-74040i3SGELU..ST162198508-198708

17705CAP SUB-ASSY, AIR CLEANER

main17705-16130i4AGELU..AT160198508-198708

main17705-63060i1SILU..ST160198508-198708

main17705-74040i3SGELU..ST162198508-198708

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64010i3SGELU..ST162198508-198708

main17801-74010i4AGELU..AT160198508-198708

sub17801-55010

17881HOSE, AIR CLEANER, NO.1

main17881-16090i4AGELU..AT160198508-198708

main17881-63030i1SILU..ST160198508-198708

main17881-74060i3SGELU..ST162198508-198708

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10710i1SILU..ST160198508-198708

main96111-10750i4AGELU..AT160198508-198708

main96111-10750i3SGELU..ST162198511-198708

THROTTLE BODY SIDE

main96111-10780i3SGELU..ST162198508-198511

THROTTLE BODY SIDE

main96111-10900i3SGELU..ST162198508-198708

AIR FLOW METER SIDE

17882HOSE, AIR CLEANER, NO.2

main17882-20100i3SGELU..ST162198508-198708

main17882-20110i4AGELU..AT160198508-198708

main17882-63080i1SILU..ST160198508-198708

17889BOX, AIR CLEANER HOSE, NO.2

main17889-20010i4AGELU..AT160198508-198708

9011906104

main90119-06104

9011908370

main90119-08370

9166640832

main91666-40832

9418040600

main94180-40600

12 parts on this diagram · 3 diagrams in section
