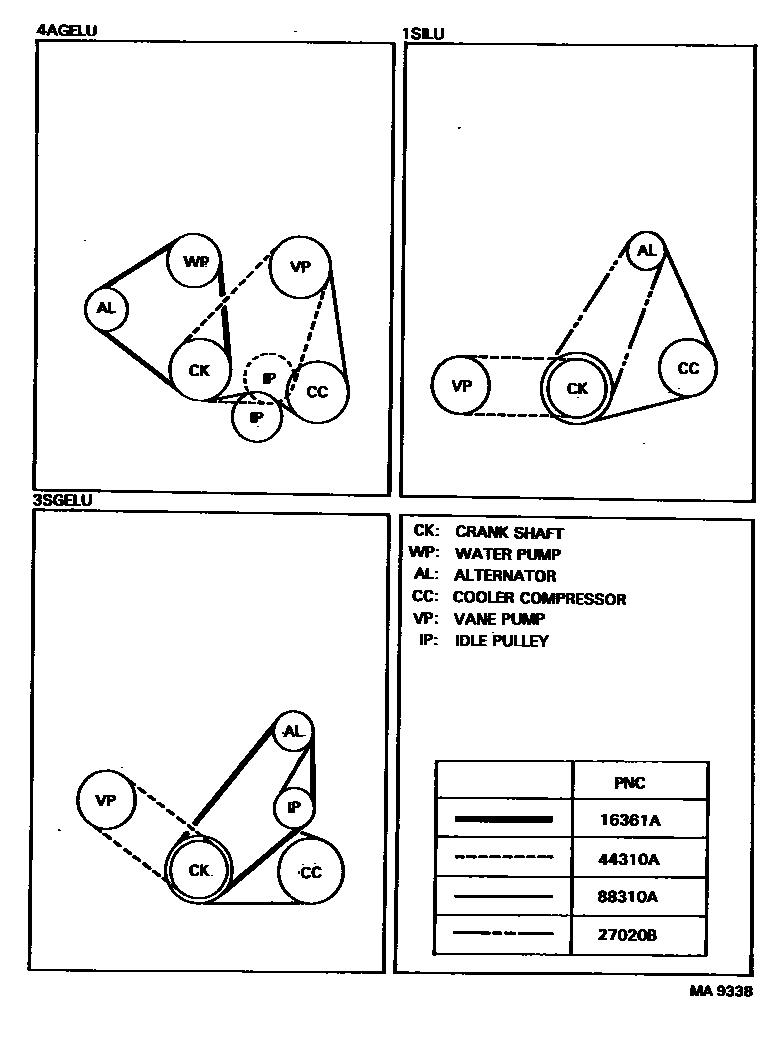

V-BELT

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02148i4AGELU..AT160198508-198708

main99365-01000i3SGELU..ST162198508-198708

27020BBELT, V(FOR ALTERNATOR)

main99365-01000i1SILU..ST160198508-198708

12V 60A

44310ABELT, V(FOR VANE PUMP)

main99363-50760iST16#198508-198708

main99365-50920iAT160198508-198708

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02116iST162198508-198708

MITSUBOSHI

main90916-02191iAT160198703-198708

MITSUBOSHI

main90916-02192iAT160198703-198708

BANDO

main90916-02197iST162198703-198708

BANDO

main99365-01060iAT160198508-198703

main99365-51110iST160198508-198708

4 parts on this diagram · 1 diagram in section
