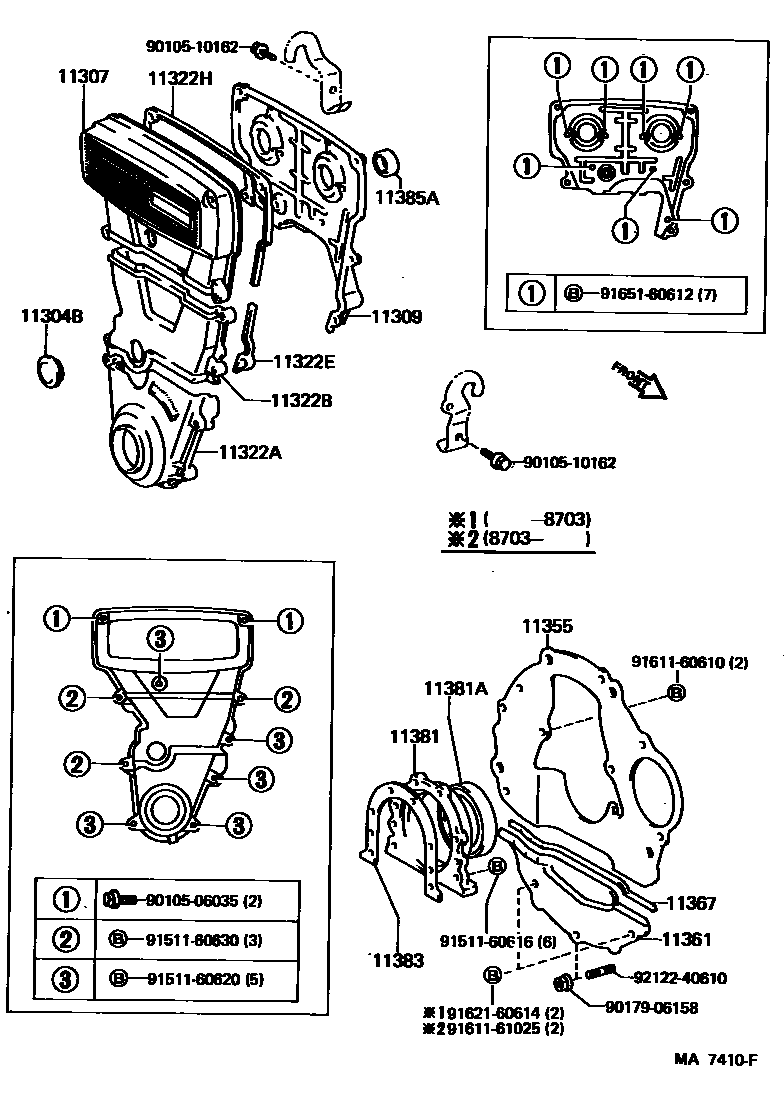

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11304COVER, TIMING CHAIN OR BELT, NO.2

main11303-63010i1SILU..ST160198508-198708

main11322-88361i3SGELU..ST162198508-198708

11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)

main90950-01334i1SILU..ST160198508-198708

main90950-01391i4AGELU..AT160198508-198601

main90950-01535i4AGELU..AT160198601-198708

11307COVER, SUB-ASSY, TIMING BELT, NO.3

main11304-16020i4AGELU..AT160198508-198708

main11323-88360i3SGELU..ST162198508-198708

sub11323-88361

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-16011i4AGELU..AT160198508-198708

11322ACOVER, TIMING BELT, NO.1

main11302-16010i4AGELU..AT160198508-198601

sub11302-16011

main11302-16011i4AGELU..AT160198601-198708

11322BCOVER, TIMING BELT, NO.2

main11303-16020i4AGELU..AT160198508-198601

sub11303-16021

sub90109-10096

sub90109-10099

sub90950-01534

sub90950-01535

main11303-16021i4AGELU..AT160198601-198708

11322EGASKET, TIMING BELT COVER, NO.2

main11329-16010i4AGELU..AT160198508-198708

11322HGASKET, TIMING BELT COVER, NO.3

main11319-16011i4AGELU..AT160198508-198708

11355PLATE, REAR END

main11355-15050i4AGELU..AT160198508-198609

main11355-15060i4AGELU..AT160198609-198708

main11355-63020i1SILU,3SGELU..ST16#198508-198606

sub11355-63021

main11355-63021i1SILU,3SGELU..ST16#198606-198708

11361COVER, FLYWHEEL HOUSING UNDER

main11361-15021i4AGELU..AT160198508-198703

sub11361-16020

main11361-16020i4AGELU..AT160198703

sub11361-16040

11367GASKET, FLYWHEEL HOUSING UNDER

main11367-15030i4AGELU..AT160198508-198708

11381RETAINER, ENGINE REAR OIL SEAL

main11381-15010i4AGELU..AT160198508-198708

main11381-63010i1SILU,3SGELU..ST16#198508-198607

main11381-63011i1SILU,3SGELU..ST16#198607-198708

sub11381-63012

11381ASEAL, ENGINE REAR OIL

main90311-70004i4AGELU..AT160198508-198708

sub90311-70007

main90311-85003i1SILU,3SGELU..ST16#198508-198708

sub90311-85006

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-15010i4AGELU..AT160198508-198708

sub11383-15011

main11383-63010i1SILU,3SGELU..ST16#198508-198608

sub11383-63011

main11383-63010i1SILU..ST160198608-198708

*53

sub11383-63011

main11383-88380i3SGELU..ST162198608-198708

*54

sub11383-88381

11385RETAINER, CAMSHAFT OIL SEAL

main11382-63010i1SILU..ST160198508-198708

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i3SGELU..ST162198508-198708

sub90311-35022

main90311-35013i4AGELU..AT160198508-198708

sub90311-35022

main90311-38017i1SILU..ST160198508-198708

sub90311-38046

9010506035

main90105-06035

9010510162

main90105-10162

9017906158

main90179-06158

9151160616

main91511-60616

9151160620

main91511-60620

9151160630

main91511-60630

9161160610

main91611-60610

9161161025

main91611-61025

9162160614

main91621-60614

9165160612

main91651-60612

9212240610

main92122-40610

27 parts on this diagram · 3 diagrams in section
