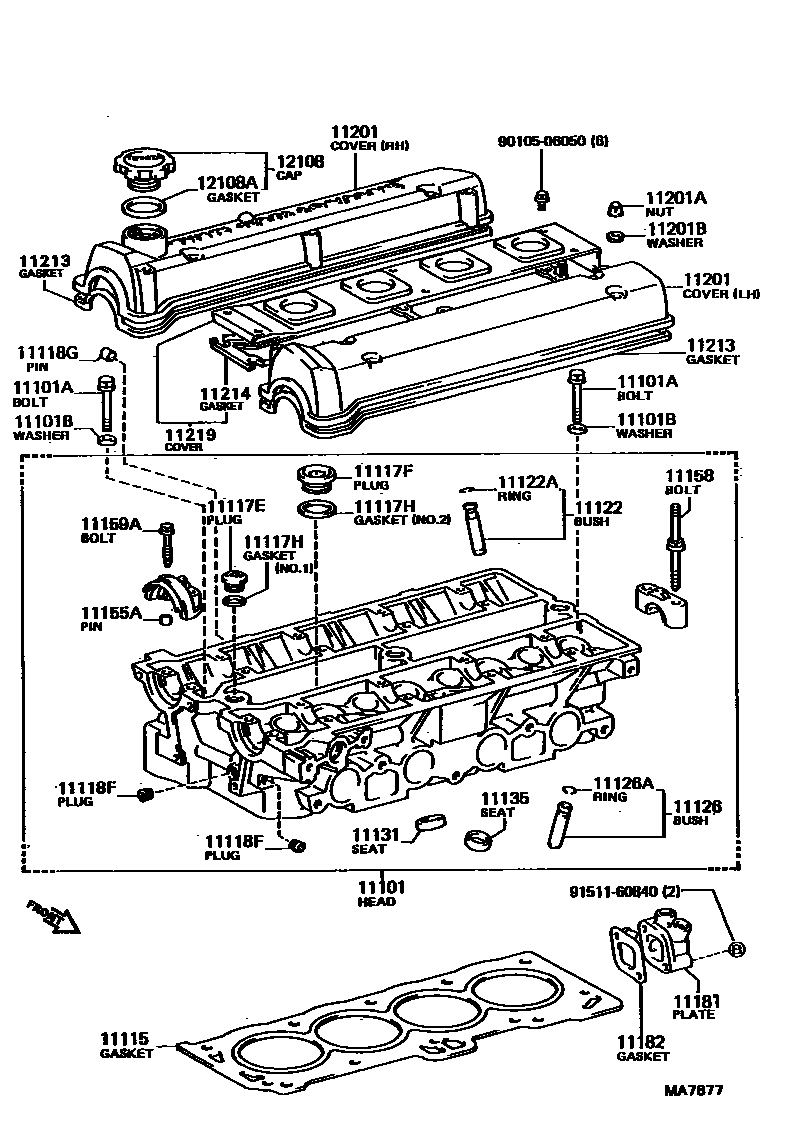

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*54
*53
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
PNC 11118A
NO.1
NO.1
PNC 11118B
NO.2
11118FPLUG, TAPER, NO.1
11118GPIN, SLOTTED SPRING, NO.1
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
11135SEAT, EXHAUST VALVE
11155BOLT, STUD(FOR HEAD TO CAMSHAFT HOUSING)
11155APIN, RING W/HEAD
11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)
11181PLATE, CYLINDER HEAD, REAR
11182GASKET, CYLINDER HEAD REAR PLATE
sub11182-16020
11201COVER SUB-ASSY, CYLINDER HEAD
LH,*54
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11214GASKET, CYLINDER HEAD COVER, NO.2
FR
RR
12108AGASKET(FOR OIL FILLER CAP)
9010506050
main90105-06050
9151160840
main91511-60840
31 parts on this diagram · 3 diagrams in section
