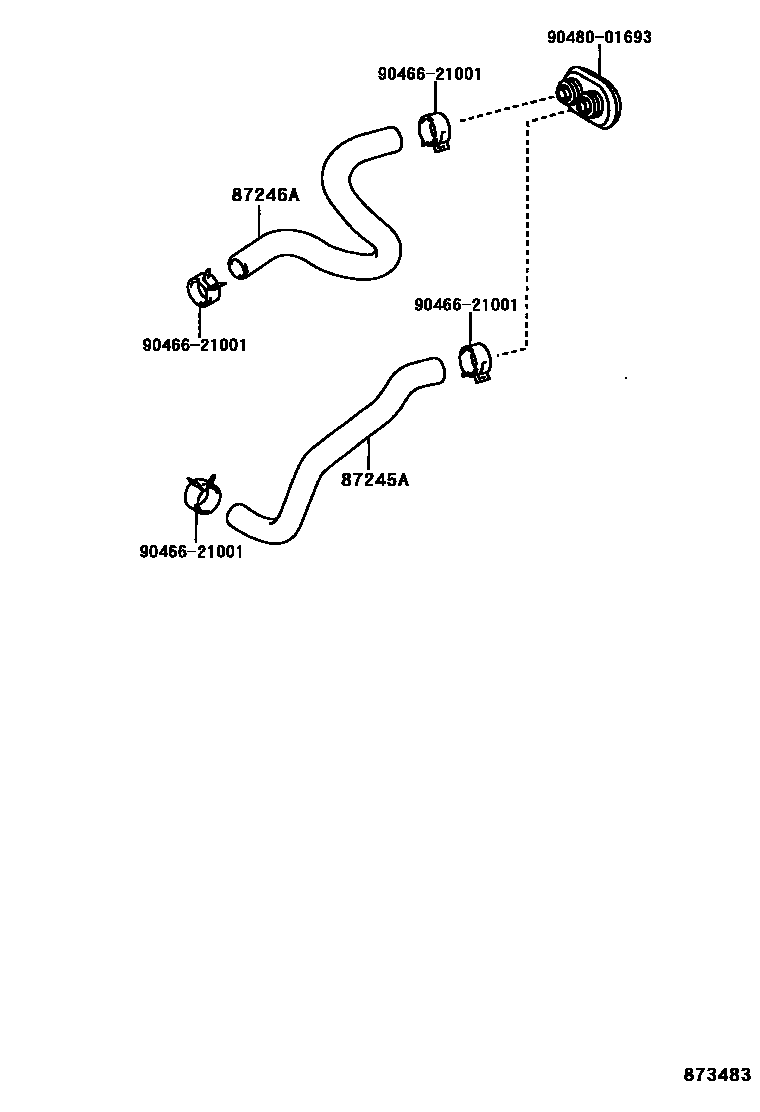

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87245AHOSE, HEATER WATER, INLET A

main87245-2D550iZZT230199908-200208

main87245-2D570iZZT231199908-200208

87246AHOSE, HEATER WATER, OUTLET A

main87245-2D560iZZT230199908-200208

main87245-2D580iZZT231200208

9046621001

main90466-21001

9048001693

main90480-01693

4 parts on this diagram · 2 diagrams in section
