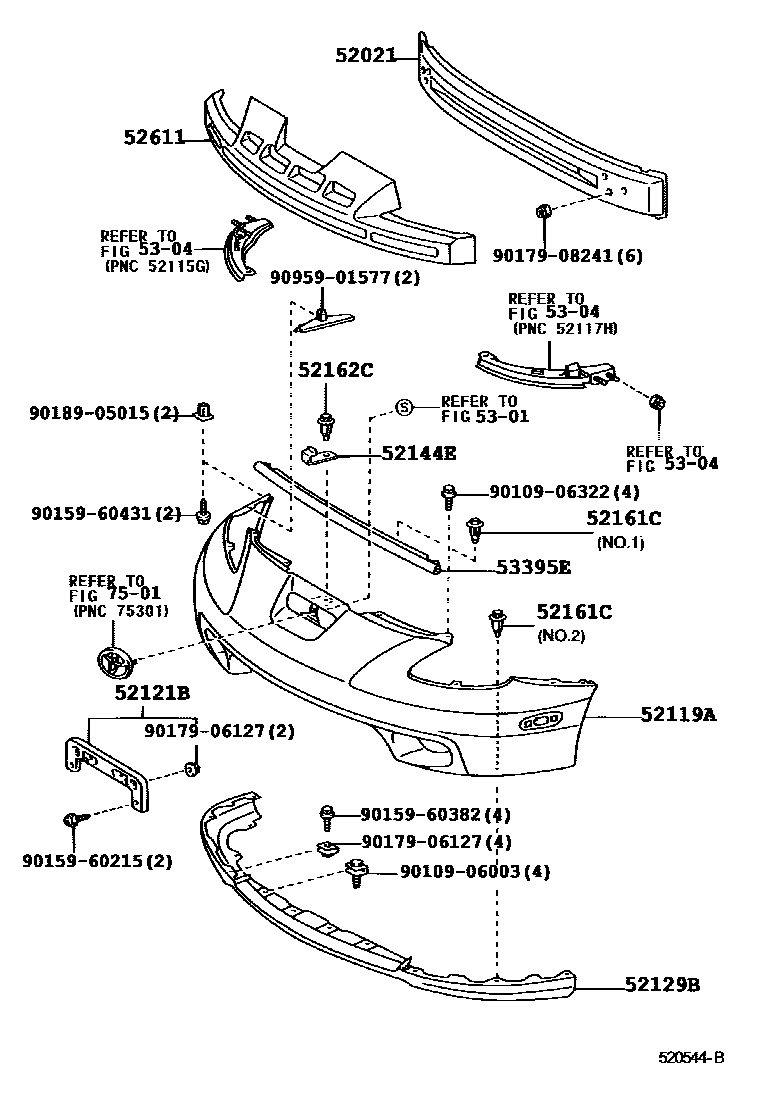

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20260iZZT23#199908-200208

52119ACOVER, FRONT BUMPER

main52119-2B410-A0iZZT23#199908-200208

SUPER WHITE 2,040

main52119-2B410-B0iZZT23#199908-200208

SILVER ME.,1D0

main52119-2B410-C0iZZT23#199908-200208

BLACK,202

main52119-2B410-C1iZZT23#199908-200208

BLACK MC.CC.,210

main52119-2B410-D0iZZT23#199908-200208

SUPER RED 5,3P0

main52119-2B410-F0iZZT23#199908-200208

SUPER BRIGHT YELLOW,576

main52119-2B410-J0iZZT23#200002-200207

main52119-2B490-A0iZZT23#200208-200512

SUPER WHITE 2,040

main52119-2B490-B0iZZT23#200208-200512

GRAY ME.,1D2

main52119-2B490-B1iZZT23#200208-200512

SILVER M.M.,1E7

main52119-2B490-C0iZZT23#200208-200512

BLACK,202

main52119-2B490-C1iZZT23#200208-200512

BLUE BLACK MC.CC.,210

main52119-2B490-D0iZZT23#200208-200512

SUPER RED 5,3P0

main52119-2B490-F0iZZT23#200208-200512

SUPER BRIGHT YELLOW,576

main52119-2B490-J0iZZT23#200208-200512

BLUE MC.,8M6

main52119-2B520-A1iZZT23#200512

SUPER WHITE 2,040

main52119-2B520-B2iZZT23#200512

GRAY ME.,1D2

main52119-2B520-B3iZZT23#200512

SILVER M.M.,1E7

main52119-2B520-C2iZZT23#200512

BLACK,202

main52119-2B520-C3iZZT23#200512

BLUE BLACK MC.CC.,210

main52119-2B520-D1iZZT23#200512

SUPER RED 5,3P0

main52119-2B520-F1iZZT23#200512

SUPER BRIGHT YELLOW,576

main52119-2B520-J2iZZT23#200512

BLUE MC.,8M6

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-20140iZZT23#200208

52129BCOVER, FRONT BUMPER, LOWER

main52129-20070-A0iZZT23#199908-200208

SUPER WHITE 2,040

main52129-20070-B0iZZT23#199908-200208

SILVER ME.,1D0

main52129-20070-C0iZZT23#199908-200208

BLACK,202

main52129-20070-C1iZZT23#199908-200208

BLACK MC.CC.,210

main52129-20070-D0iZZT23#199908-200208

SUPER RED 5,3P0

main52129-20070-F0iZZT23#199908-200208

SUPER BRIGHT YELLOW,576

main52129-20080-A0iZZT23#200208

SUPER WHITE 2,040

main52129-20080-B0iZZT23#200208

GRAY ME.,1D2

main52129-20080-B1iZZT23#200208

SILVER M.M.,1E7

main52129-20080-C0iZZT23#200208

BLACK,202

main52129-20080-C1iZZT23#200208

BLUE BLACK MC.CC.,210

main52129-20080-D0iZZT23#200208

SUPER RED 5,3P0

main52129-20080-F0iZZT23#200208

SUPER BRIGHT YELLOW,576

main52129-20080-J0iZZT23#200208

BLUE MC.,8M6

52144ESTAY, FRONT BUMPER, CENTER

main52144-20270iZZT23#199908-200208

main52144-20280iZZT23#200208

52161CPIECE, FRONT BUMPER

main52161-20010×2iZZT23#199908-200208

main90467-05063-C0×8iZZT23#199908-200208

52162CPIECE, FRONT BUMPER

main52161-16010iZZT23#199908-200208

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20200iZZT23#199908-200208

main52611-20230iZZT23#200208

5301RADIATOR GRILLE

→ Go to FIG 53-01

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53395ESEAL, HOOD TO FRONT END PANEL

main53395-20030iZZT23#199908-200208

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

9010906003

main90109-06003

9010906322

main90109-06322

9015960215

main90159-60215

9015960382

main90159-60382

9015960431

main90159-60431

9017906127

main90179-06127

9017908241

main90179-08241

9018905015

main90189-05015

9095901577

main90959-01577

21 parts on this diagram · 2 diagrams in section
