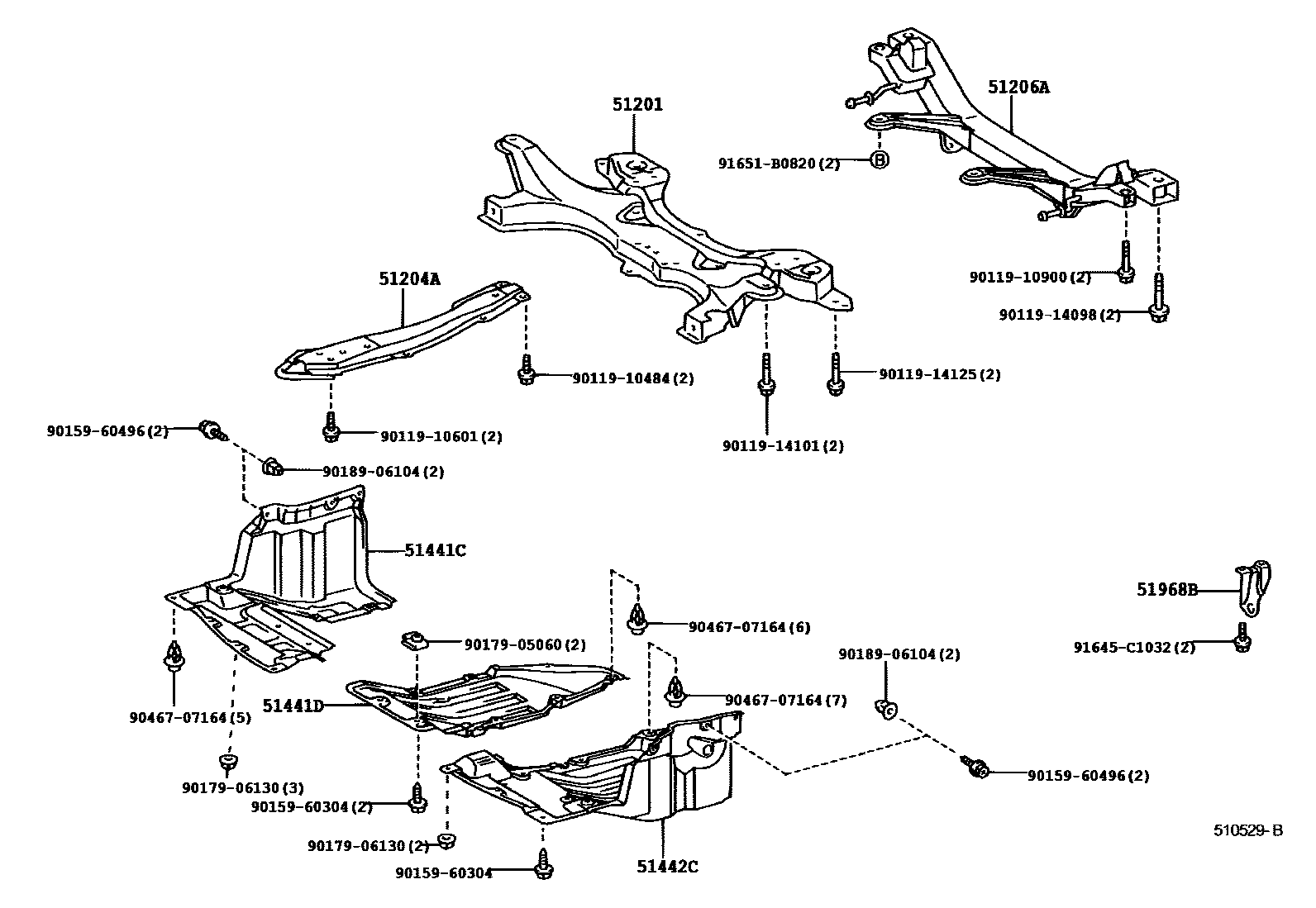

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12430iZZT23#200111-200208

main51201-12431iZZT23#200303

main51201-20350iZZT23#199908-200111

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20160iZZT23#199908-200208

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20100iZZT23#199908-200208

main51206-20120iZZT23#200512

51441CCOVER, ENGINE UNDER, RH

main51408-20090iZZT23#199908-200208

51441DCOVER, ENGINE UNDER

main51405-20060iZZT23#199908-200208

51442CCOVER, ENGINE UNDER, LH

main51409-20120iZZT23#199908-200208

51968BHOOK, TRANSPORT, REAR LH

main51968-20140iZZT23#199908-200208

9011910484

main90119-10484

9011910601

main90119-10601

9011910900

main90119-10900

9011914098

main90119-14098

9011914101

main90119-14101

9011914125

main90119-14125

9015960304

main90159-60304

9015960496

main90159-60496

9017905060

main90179-05060

9017906130

main90179-06130

9018906104

main90189-06104

9046707164

main90467-07164

91645C1032

main91645-C1032

91651B0820

main91651-B0820

21 parts on this diagram · 1 diagram in section
