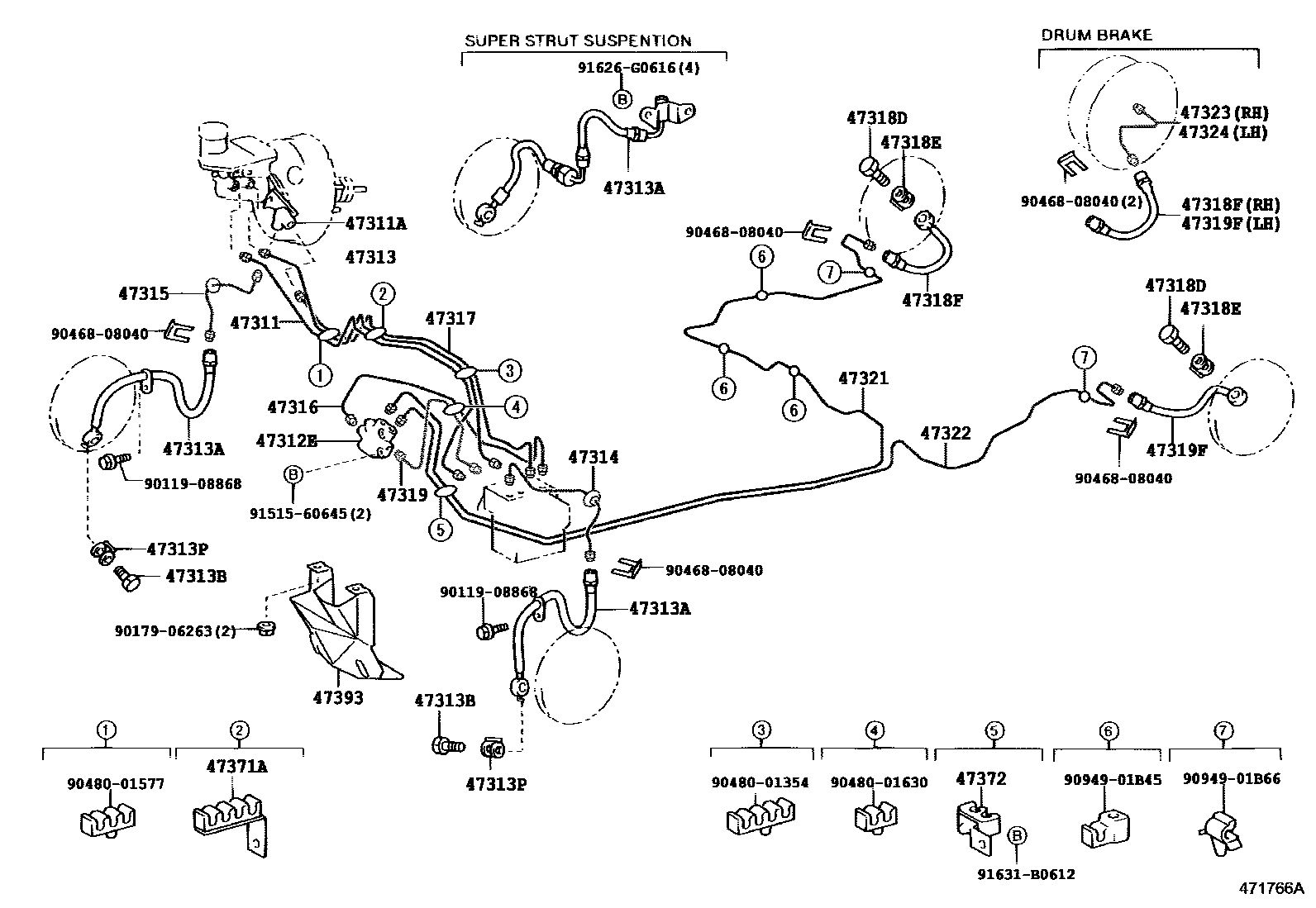

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

47311TUBE, FRONT BRAKE, NO.1

main47311-2B270iZZT23#199908-200208

main47311-2B350iZZT23#200208

47311AWAY(FOR FRONT BRAKE TUBE)

main90904-12087iZZT23#199908-200208

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90904-12084iZZT23#199908-200208

47313TUBE, FRONT BRAKE, NO.3

main47313-20860iZZT23#199908-200208

main47313-2B040iZZT23#200208

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02C23iZZT23#200208

main90947-02C24iZZT23#200208

main90947-02C26iZZT231199908-200208

main90947-02C27iZZT231200208

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZZT23#199908-200208

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iZZT23#199908-200208

47314TUBE, FRONT BRAKE, NO.4

main47314-20720iZZT23#199908-200208

main47314-20730iZZT231199908-200208

main47314-20760iZZT23#200208

main47314-20800iZZT231200208

47315TUBE, FRONT BRAKE, NO.5

main47315-20740iZZT23#199908-200208

main47315-20750iZZT231200208

47316TUBE, FRONT BRAKE, NO.6

main47316-20650iZZT23#199908-200208

main47316-20690iZZT23#200208

47317TUBE, FRONT BRAKE, NO.7

main47317-20300iZZT23#199908-200208

main47317-20340iZZT23#200208

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZZT231199908-200208

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iZZT231200208

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02A37iZZT231199908-200208

main90947-02C25iZZT230199908-200208

47319TUBE, FRONT BRAKE, NO.9

main47319-20200iZZT23#199908-200208

main47319-20210iZZT23#200208

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02A37iZZT231199908-200208

main90947-02C25iZZT230199908-200208

47321TUBE, REAR BRAKE, NO.1

main47321-20440iZZT23#199908-200208

47322TUBE, REAR BRAKE, NO.2

main47322-20540iZZT23#199908-200208

47323TUBE, REAR BRAKE, NO.3

main47323-20210iZZT230199908-200208

47324TUBE, REAR BRAKE, NO.4

main47324-20210iZZT230199908-200208

47371ACLAMP, BRAKE TUBE, NO.1

main47371-20760iZZT23#199908-200208

47372CLAMP, BRAKE TUBE, NO.2

main47371-10200iZZT23#199908-200208

47393INSULATOR, BRAKE TUBE HEAT

main47393-20010iZZT23#199908-200208

9011908868

main90119-08868

9017906263

main90179-06263

9046808040

main90468-08040

9048001354

main90480-01354

9048001577

main90480-01577

9048001630

main90480-01630

9094901B45

main90949-01B45

9094901B66

main90949-01B66

9151560645

main91515-60645

91626G0616

main91626-G0616

91631B0612

main91631-B0612

34 parts on this diagram · 4 diagrams in section
