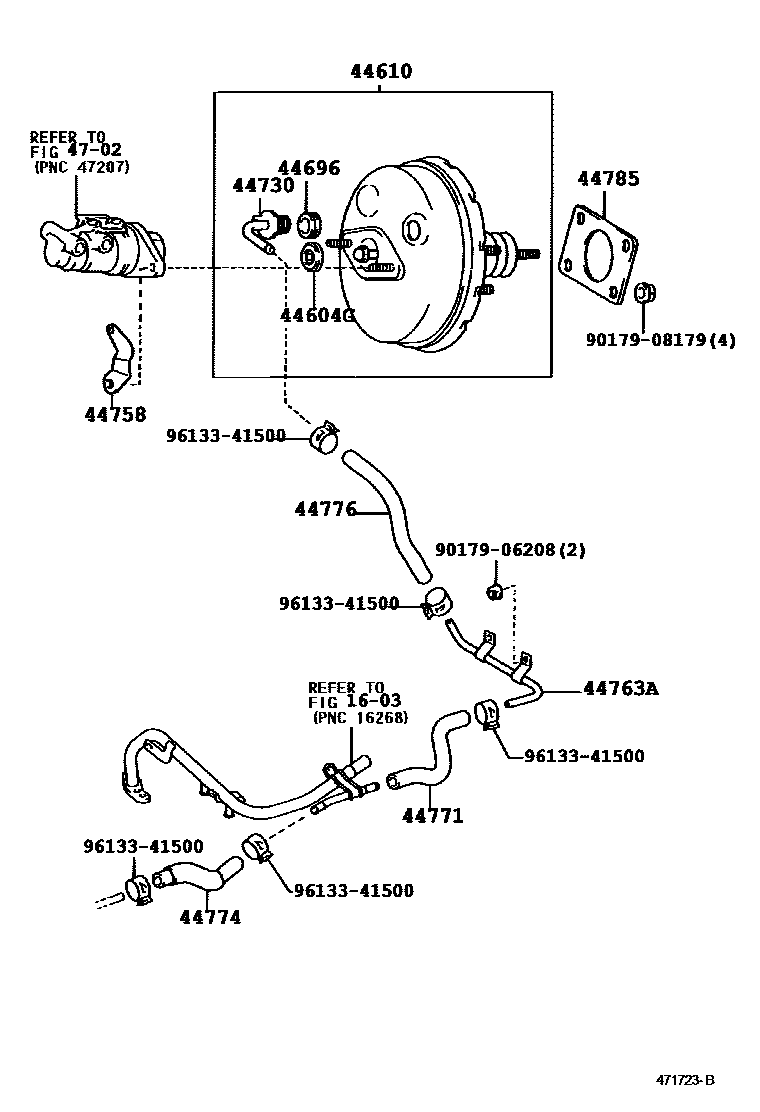

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

44604GSEAL, BRAKE BOOSTER BODY

main44604-52070iZZT23#199908-200208

44610BOOSTER ASSY, BRAKE

main44610-2G010iZZT231199908-199910

main44610-2G030iZZT230199908-199910

main44610-2G050iZZT231200208-200604

main44610-2G070iZZT230199910-200208

main44610-2G090iZZT231199910-200208

44696GROMMET, CHECK VALVE

main90480-24015iZZT23#199908-200208

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iZZT23#200503-200604

main44730-20160iZZT23#199908-200208

44758BRACKET, VACUUM CHECK VALVE

main44758-20340iZZT23#199908-200208

44763ATUBE, HOSE TO HOSE, NO.1

main44763-20220iZZT23#199908-200208

44771HOSE, VACUUM TUBE CONNECTOR

main44771-20040iZZT230200208-200604

main44771-20050iZZT231199908-200205

main44771-20060iZZT231200205-200208

44774HOSE, UNION TO CONNECTOR TUBE

main44774-20280iZZT230200208-200604

44776HOSE, BRAKE BOOSTER

main44776-20170iZZT23#199908-200208

44785GASKET, BRAKE BOOSTER

main44785-20020iZZT23#199908-200208

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9017906208

main90179-06208

9017908179

main90179-08179

9613341500

main96133-41500

15 parts on this diagram · 2 diagrams in section
