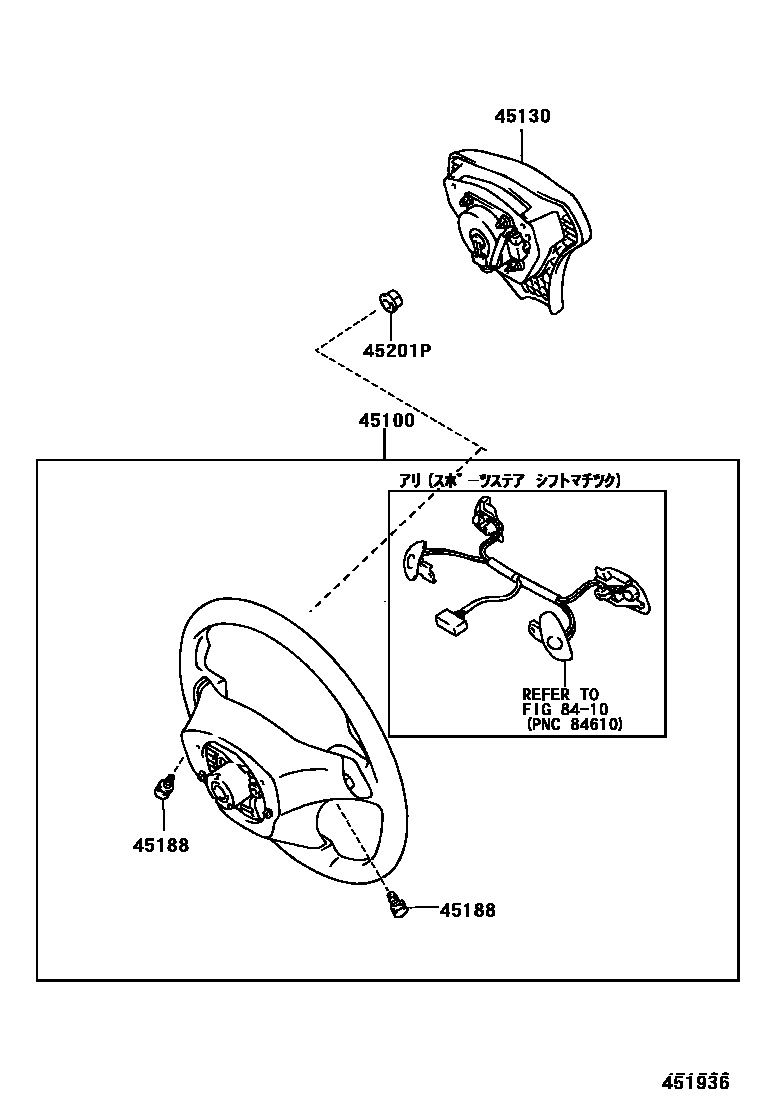

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-2B690-C0iZZT230;ZZT231..6F200208

main45100-2B700-C0iZZT230199908-200208

main45100-2B710-C0iZZT231..4FC199908-200208

main45100-2B760iZZT231..6F200208

main45100-2B770iZZT231..4FC199908-200208

45130BUTTON ASSY, HORN

main45130-2B430-C0iZZT230; ZZT231199908-200208

BLACK,TRIM2#,20,21,22; BLACK,TRIM20,21,22

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iZZT23#199908-200208

45201PNUT, STEERING WHEEL SET

main90179-12071iZZT23#199908-200208

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

5 parts on this diagram · 1 diagram in section
