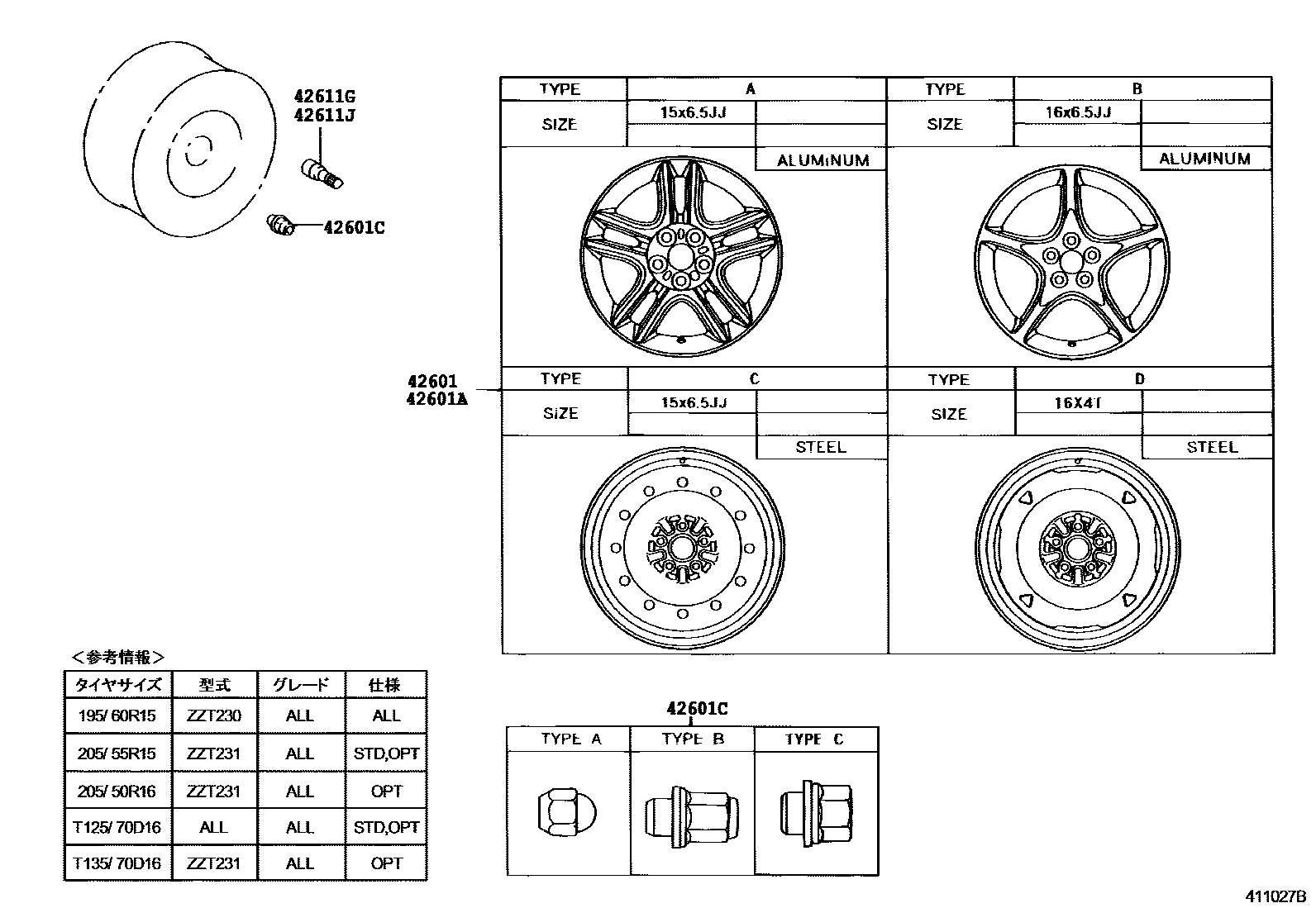

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-20A10×4iZZT231200208-200604

main42611-2B260×4iZZT231..6F200002-200207

main42611-2B270×4iZZT23#199908-200208

main42611-2B280×4iZZT23#199908-200208

main42611-2B290×4iZZT231199908-200208

42601AWHEEL, DISC (FOR SPARE)

main42611-20840iZZT23#200208-200604

main42611-2B270iZZT23#199908-200208

main42611-2B280iZZT23#199908-200208

main42611-2B290iZZT231199908-200208

42601CNUT, HUB (FOR AXLE)

main90942-01021×20iZZT23#199908-200108

main90942-01033×20iZZT231199908-200208

main90942-01062×20iZZT23#200208

main90942-01082×20iZZT23#200108-200208

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iZZT23#199908-200208

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZZT23#199908-200208

5 parts on this diagram · 3 diagrams in section
