TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

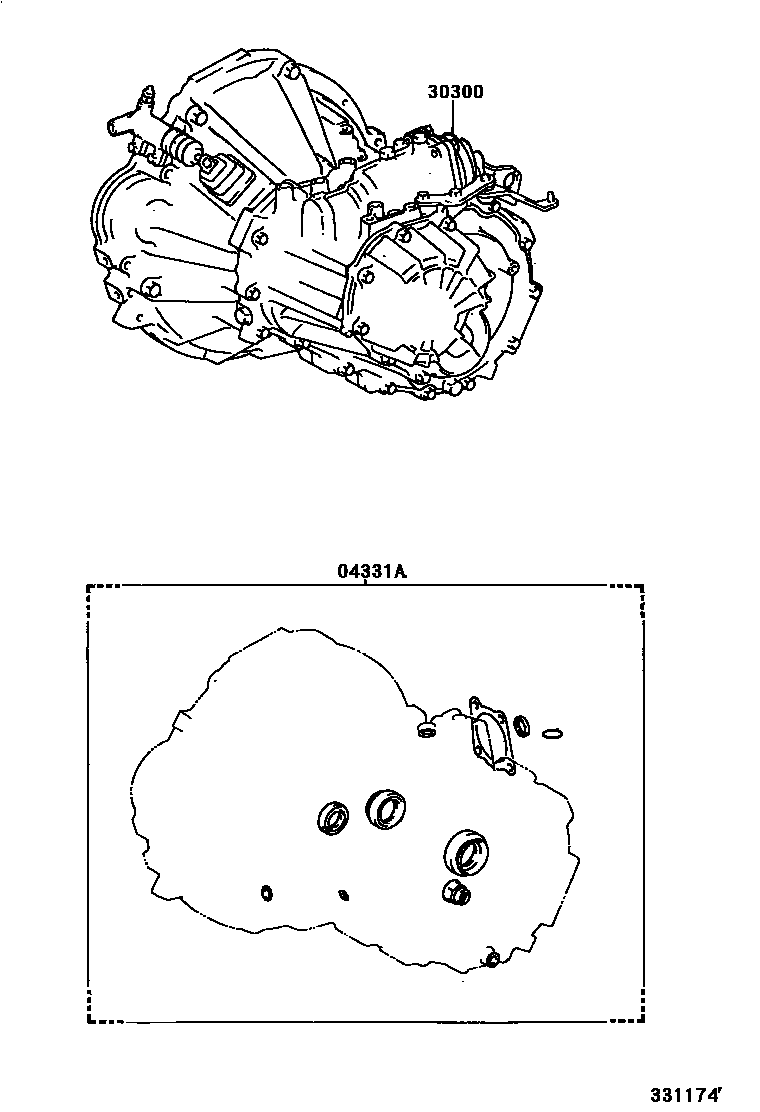

Parts diagram

04331AGASKET KIT, TRANSAXLE OVERHAUL(MTM)

main04331-20080i199908-200005

main04331-20120i200005-200208

main04331-20170i200208-200507

main04331-20190i200507

30300TRANSAXLE ASSY, MANUAL

main30300-2B870i199908-200208

main30300-2B871i200208

main30300-2B890i199908-200208

main30300-2B891i200208

main30300-2D010i199908-200208

main30300-2D011i200208

2 parts on this diagram · 1 diagram in section
